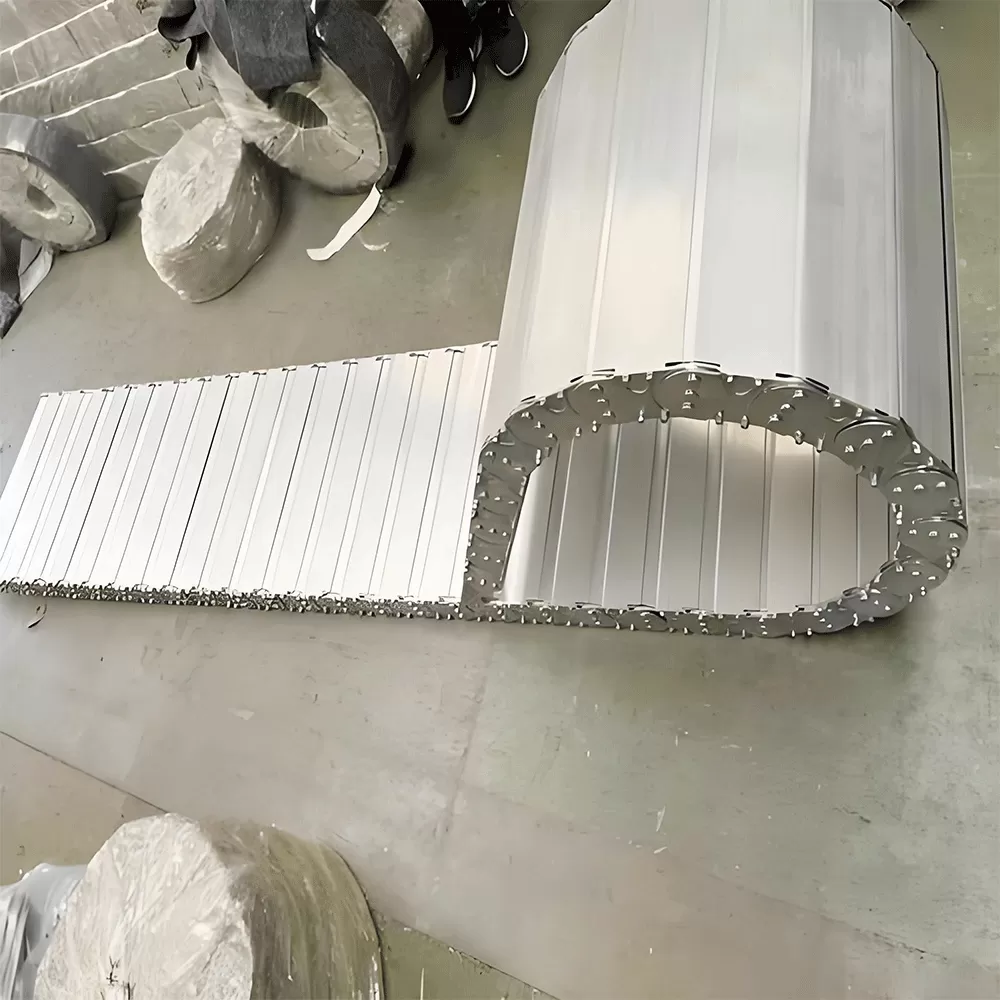

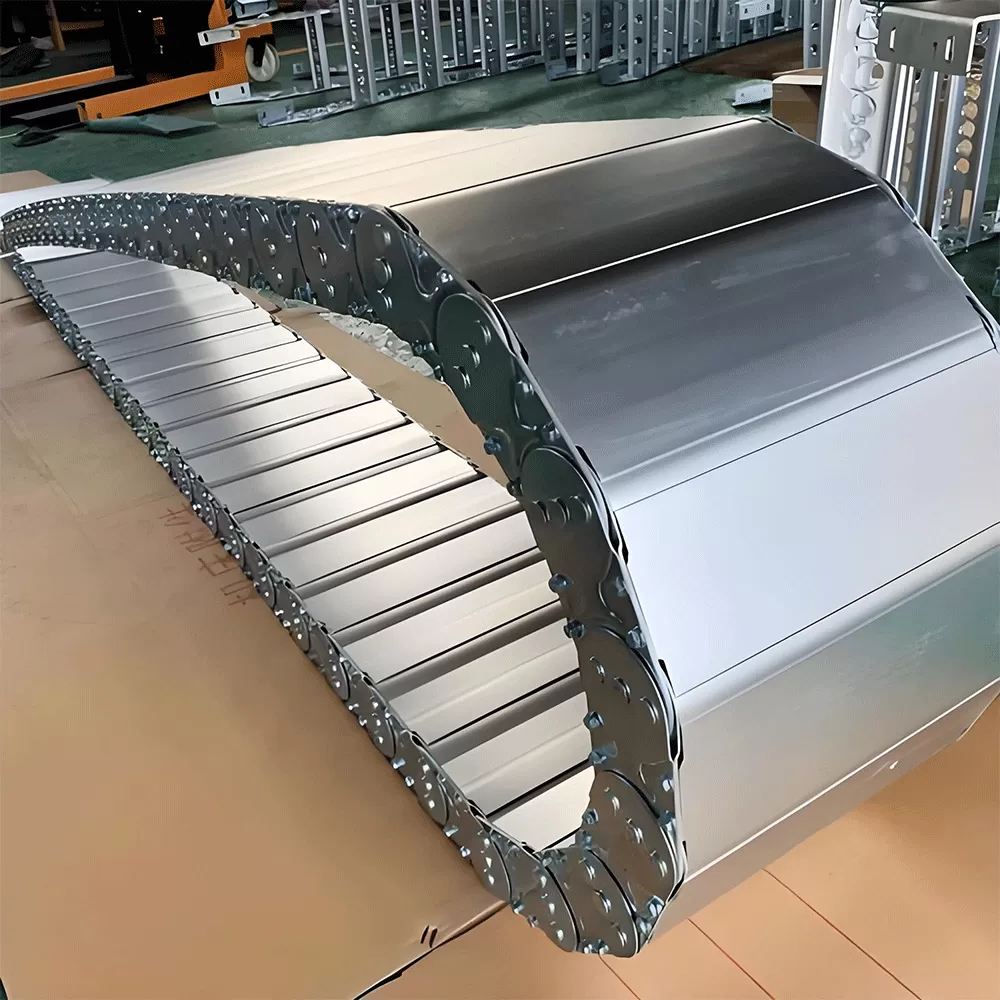

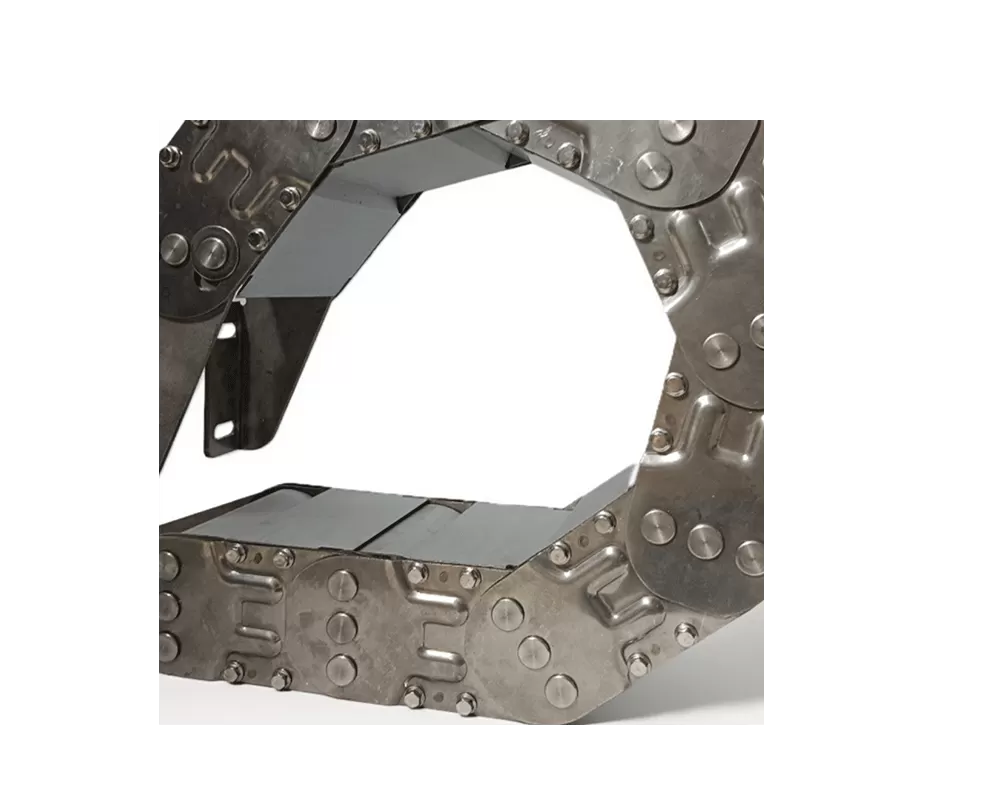

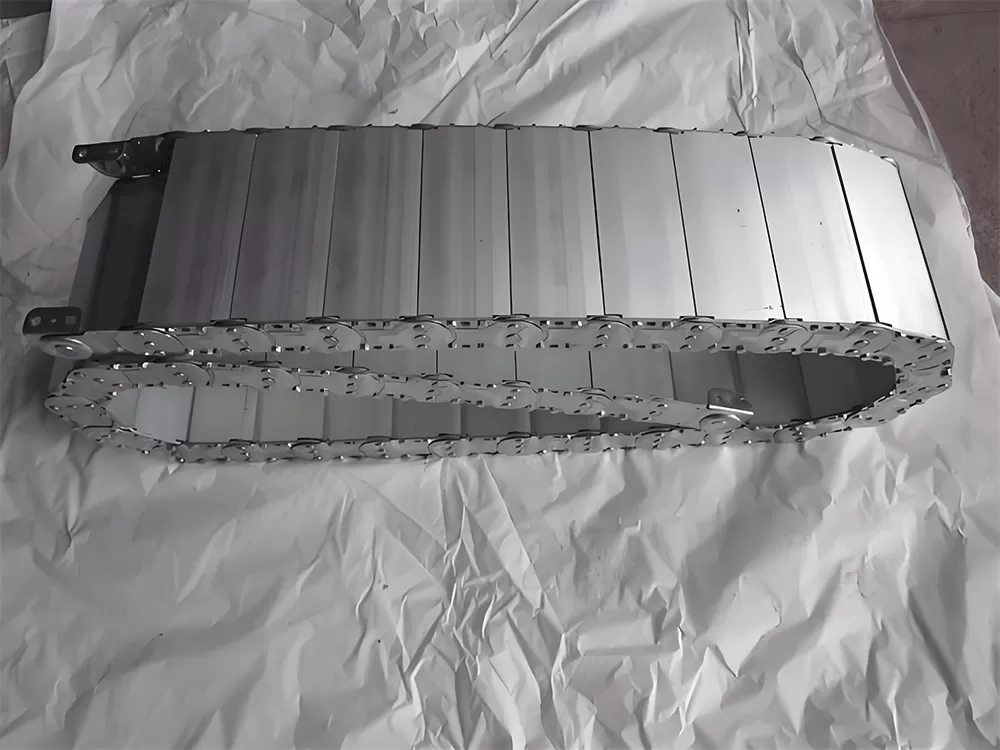

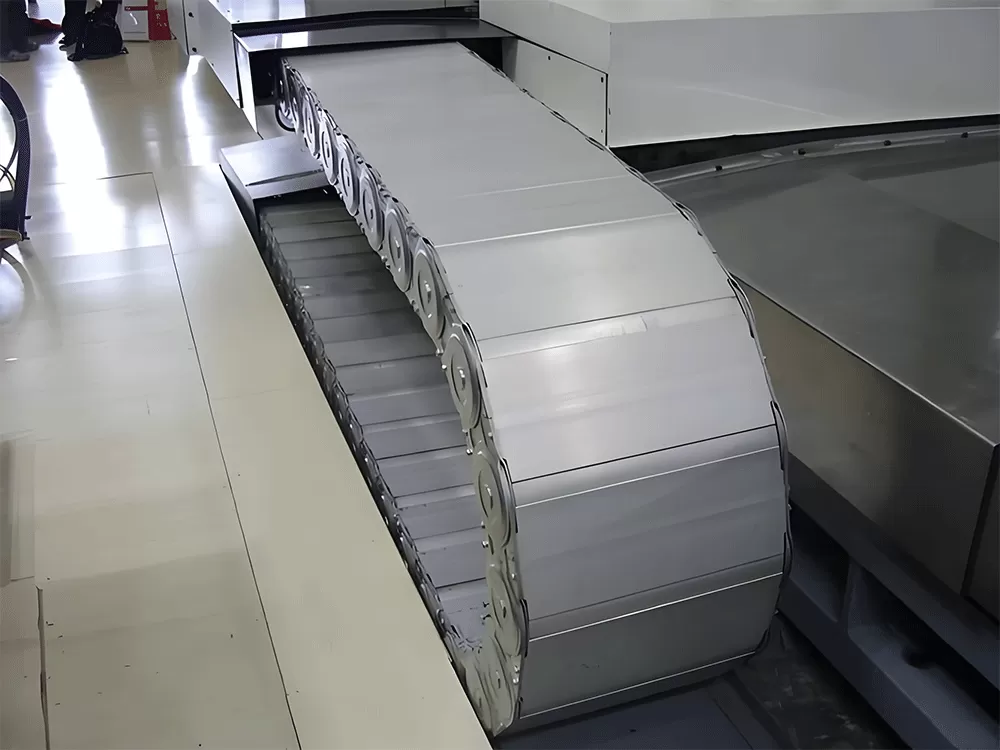

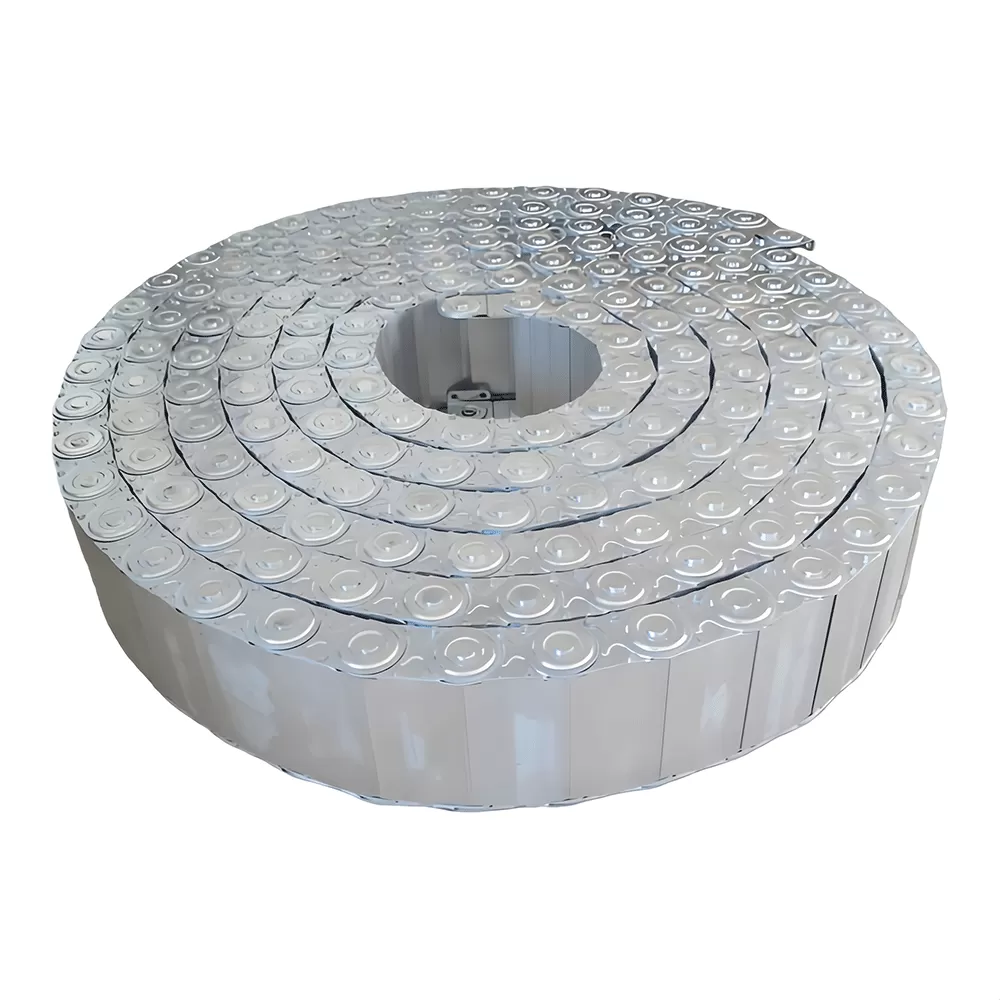

Steel Fully Enclosed-Drag Chain
Key Features
- Corrosion-resistant, high impact resistance
- Adapts to extreme working conditions such as mines and steel mills with heavy loads and high corrosion
- Meets cable protection needs in high-load, high-impact scenarios
Product Spotlights
High strength, strong impact resistance, outstanding durability
1.Long delivery cycle
Standardized products with in-stock direct shipment, customized products with clear delivery time nodes
2.Unstable product quality
Provide quality inspection reports, support sample testing
3.Slow after-sales response
7×12-hour online customer service, local after-sales points for rapid response
| Application Scenarios | Steel mills/ ports/ large equipment production workshops |
| Concrete Performance | 1. Withstands high-temperature radiation, splashing metal chips and heavy-load impacts in steel mills 2. Resists salt spray corrosion and long-stroke continuous movement in port environments 3. Adapts to multi-directional motion and oil pollution in large equipment workshops 4. Maintains stable cable traction under high vibration and frequent start-stop cooditions |
| TL type cable chain main parameters | ||||||||||
| Type Reference | TL45 | TL65 | TL80 | TL95 | TL115 | TL125 | TI155 | TL180 | TL225 | TL250 |
| Pitch | 45 | 65 | 80 | 95 | 115 | 125 | 155 | 180 | 225 | 250 |
| Bending radius | 50、75 90、115 145 | 75、90 115、125 145、185 | 100、115、125 145、185、200 250、300 | 115、145 200、250 300 | 145、200 225、250 300、350 | 200、250、300 350、470、500 575、700、750 | 200、250 300、350 450、500、600 | 250、300、350 450、490 600、650 | 400、450、600 750、800 850、1000 | 400、450、500 600、750 800、1000 |
| Minimum width of drag chain | 35 | 50 | 55 | 60 | 70 | 80 | 90 | 100 | 160 | 190 |
| L Height of drag chain | 32 | 49 | 56 | 75 | 86 | 100 | 120 | 144 | 200 | 220 |
| Cable chain length | Customizable by the user as needed | |||||||||
| hole diameter of support plate | 一 | 33 | 35 | 55 | 63 | 75 | 97 | 110 | 146 | 166 |
| Non-support range | 4 | 8 | 8 | 9 | 10 | 10 | 10 | 10 | 12 | 14 |
A: The minimum order quantity is 1 meter. We welcome both small and large orders.
A: Yes, we offer full customization services. Please provide your drawings or specifications, and we will manufacture according to your exact requirements.
A: Standard lead time is 7-15 days depending on order quantity and customization requirements. Rush orders can be accommodated upon request.
A: Yes, we can provide samples for quality evaluation. Sample cost and shipping will be charged but can be refunded upon bulk order placement.
A: We accept T/T (bank transfer), PayPal, and Western Union. For large orders, we offer flexible payment terms.
