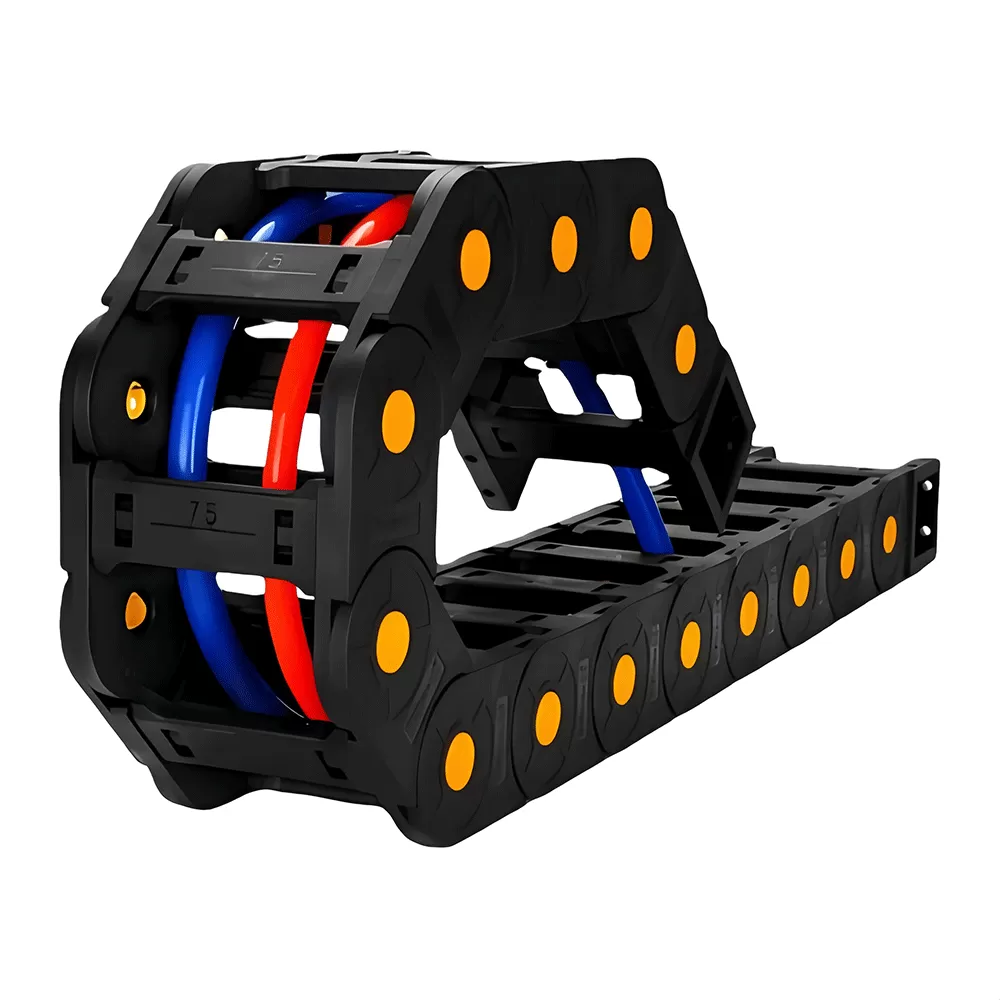

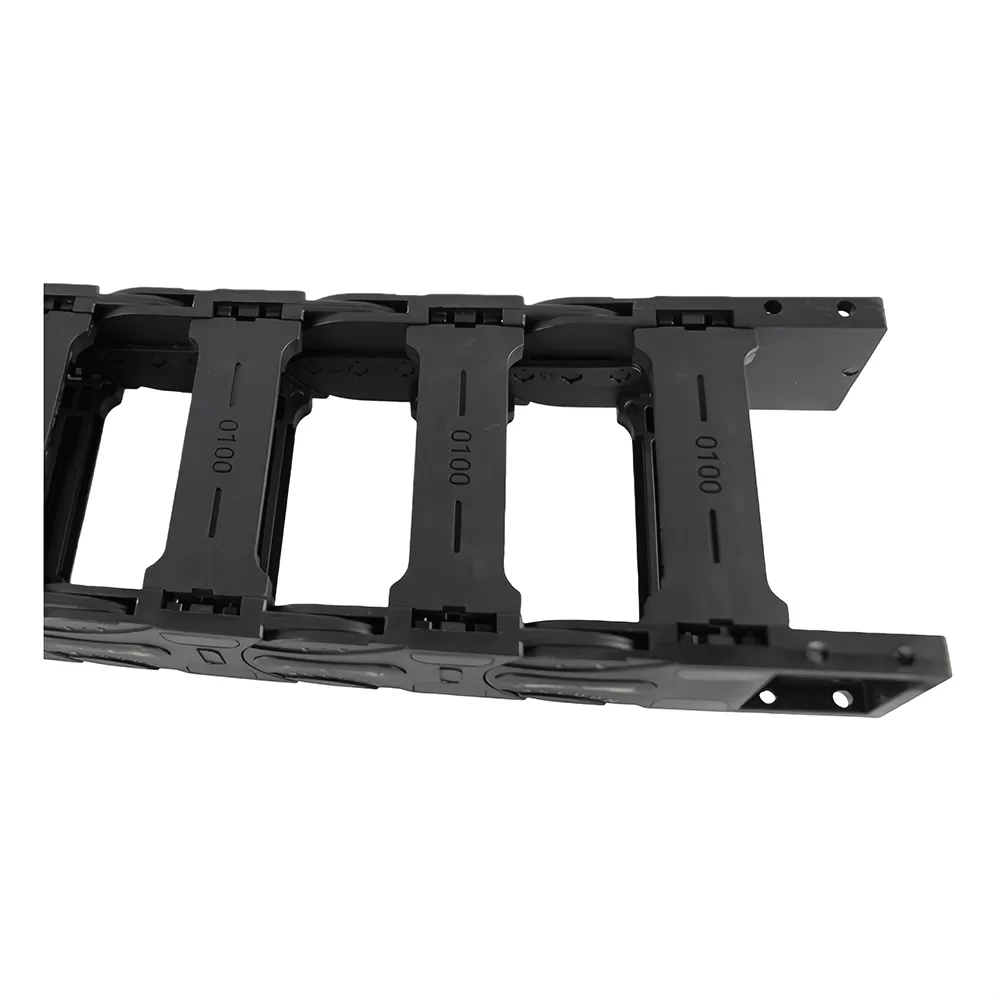

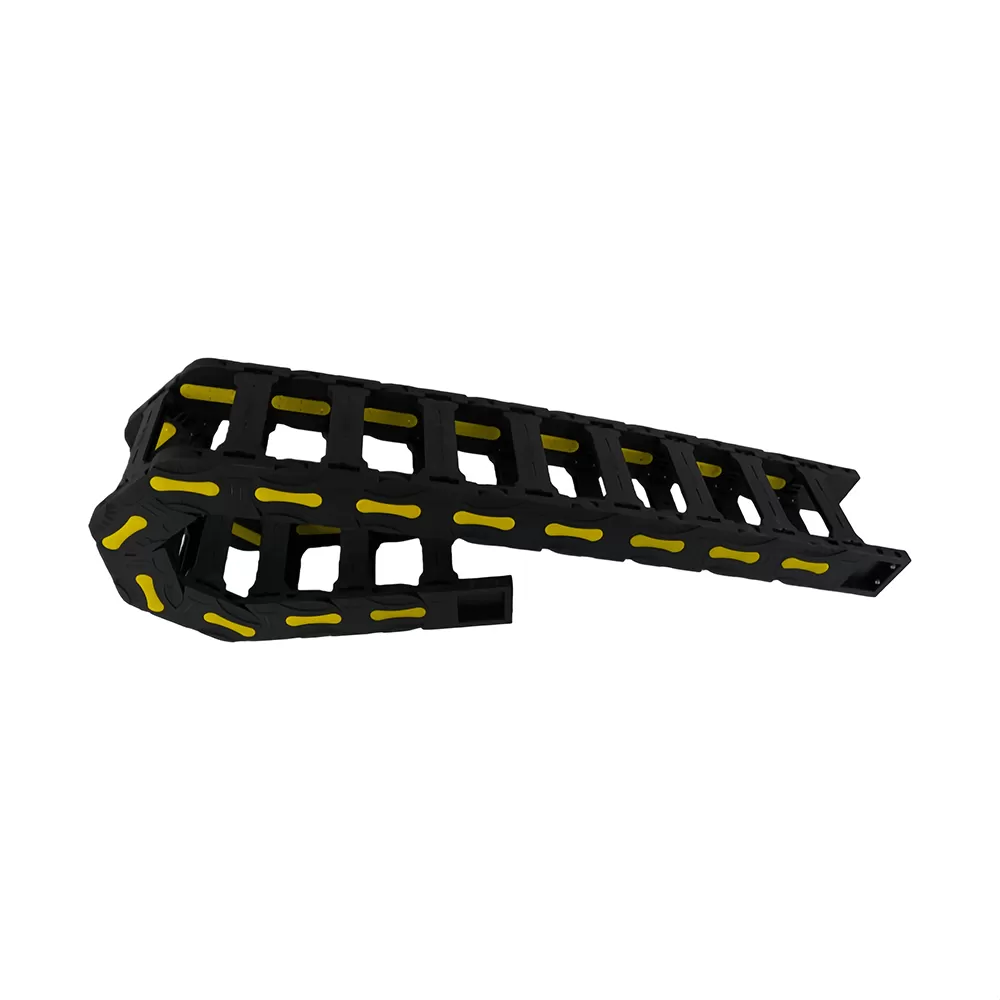

Bridge Type Nylon Cable Drag Chain
Key Features
- Adapt to high-speed automated production lines
- Meet transmission needs of high-frequency reciprocating motion scenarios
- Low-noise operation Noise ≤60dB
- Improve workshop working environment, fit precision production
- Dual advantage of lightweight & bearing
- Low weight + stable cable bearing Balance equipment lightweight and cable protection reliability
Product Spotlights
Lightweight, High Flexibility, Low Noise, Wear-Resistant, High Cost-Effectiveness
Chain Link Unit
Basic module of the chain, with built-in cable space
Connecting Piece
Links adjacent chain links, ensures overall structural stability
Hinge Structure
Key component for reciprocating bending motion
Opening/Closed
For quick cable/oil pipe loading/maintenance
CNC Machining Center
High flexibility + low noise (≤60dB), fits high-speed motion, protects cable precision
Robot Production Line
Flexible bending radius + side/top opening structure, fits complex robot movements, facilitates cable maintenance
Automated Assembly Line
Lightweight & wear-resistant + stable bearing, fits long-distance reciprocation, reduces equipment load
.webp "Nylon Drag Chain")
.webp "Nylon Drag Chain")
.webp "Nylon Drag Chain")
| Product Name | Nylon Drag Chain | |||||
| Size | Customer's Requirement | |||||
| MOQ | 1 Meter | |||||
| Packing Model Strengthen the yellow dot 10/15/18 series Strengthen the yellow dot 20 series | Carton | |||||
| Open Mode | 1ns1de he1ght (mm) | Inside width(mm) | H1gh extra(mm) | Outside width(mm) | Bending radius R(mm) | |
| Bridge openable | 7 | 7 | 10 | 12 | 18 2838 48(With hooks) | |
| 10 | 10/15/20 | 16 | 18/23/18 | |||
| 15 | 15/20/30/40 | 20 | 23/29/39/49 | |||
| 18 | 18/25/37/50 | 23 | 28/35/47/60 | |||
| Bridge openable | 20 | 25/38/50/57 /60/70/75/7 7/103 | 35 | 43/56/68/75 /78/89/93/9 5/121 | 55 75 100 125 150 175 200(With hooks) | |
| Fully closed and openable | 50/57/70/77 /103 | 68/75/89/95 /121 | ||||
| All black oblique head 25 series | Bridge openable | 25 | 38/50/57/77 | 35 | 53/62/72/92 | 40 55 75 100 125 150 (With hooks) |
| Fully closed and openable | ||||||
| Strengthen the yellow dot 25 series | Bridge openable | 25 | 25/38/50/57 /60/70/75/7 7/103/125 | 40 | 44/57/69/76 /79/90/94/9 6/122/144 | 55 75100 125150 175200(With hooks) |
| Fully closed and openable | 25/38/50/57 /70/75/77/1 03 | 44/57/69/76 /79/90/96/1 22 | ||||
| Strengthen the yellow dot 30 series | Bridge openable | 30 | 25/38/50/57 /60/70/75/7 7/103/125 | 45 | 45/58/70/77 /80/90/95/9 7/123/145 | 5575100 125150 175200(With hooks) |
| Fully closed and openable | 25/38/50/57 /70/75/77/1 03 | 45/58/70/77 /80/90/95/9 7/123 | ||||
| Stengthen the yellow dot 35 series | Bridge openable | 35 | 50/60/75/90 /100/117/12 5/150/175/2 00/250 | 55 | 75/85/100/1 15/125/142/ 150/175/20 0/225/275 | 75/100/125/ 150/175/200/ 250/300/350 (with hooks) |
| Fully closed and openable | 50/60/75/90 /100/125/15 0 | 75/85/100/1 15/125/150/ 175 | ||||
| Stengthen the yellow dot 45 series | Bridge openable | 45 | 50/60/75/90 /100/117/12 5/150/175/2 00/250 | 65 | 77/87/102/1 17/127/145/ 152/ 177/177/22 7/ 227 | 75/100/125/ 150/175/200/250/300 /350 (with hooks) |
| Fully closed and openable | 50/60/75/90 /100/125/15 0 | 77/87/102/1 17/127/155 52/ 177 | ||||
| Stengthen the yellow dot 55 series | Bridge openable | 55 | 50/60/75/90 /100/117/12 5/150/ 175/200/250 | 75 | 80/90/105/1 20/130/147/ 155/ 180/205/23 0/ 280 | 100/125/150/ 175/200/250/ 300/350/400 (with hooks) |
| Fully closed and openable | 50/60/75/90 /100/125/15 0/ 175/200 | 80/90/105/1 20/130/155/ 180/205/23 0 | ||||
| Stengthen the yellow dot 65 series | Bridge openable | 65 | 50/60/75/90 /100/117/12 5/150/ 175/200/250 | 85 | 82/92/107/1 22/132/150/ 157/182/20 7/232/282 | 100 125 150 200 250300350 400 (With hooks) |
| Fully closed and openable | 50/60/75/90 /100/125/15 0/ 175/200 | 82/92/107/1 22/132/157/ 182/207/23 2 | ||||
| Strengthen the yellow dot 80 series | Bridge openable | 80 | 75/100/125/ 150/175/200 /225/250/30 0/350/400 | 106 | 82/92/107/1 22/132/150/ 157/182/20 7/232/282 | 100 125 150 200 250 300 350 400(With hooks) |
| Fully closed and openable | 100/125/150 /200 | 82/92/107/1 22 | ||||
A: The minimum order quantity is 1 meter. We welcome both small and large orders.
A: Yes, we offer full customization services. Please provide your drawings or specifications, and we will manufacture according to your exact requirements.
A: Standard lead time is 7-15 days depending on order quantity and customization requirements. Rush orders can be accommodated upon request.
A: Yes, we can provide samples for quality evaluation. Sample cost and shipping will be charged but can be refunded upon bulk order placement.
A: We accept T/T (bank transfer), PayPal, and Western Union. For large orders, we offer flexible payment terms.
