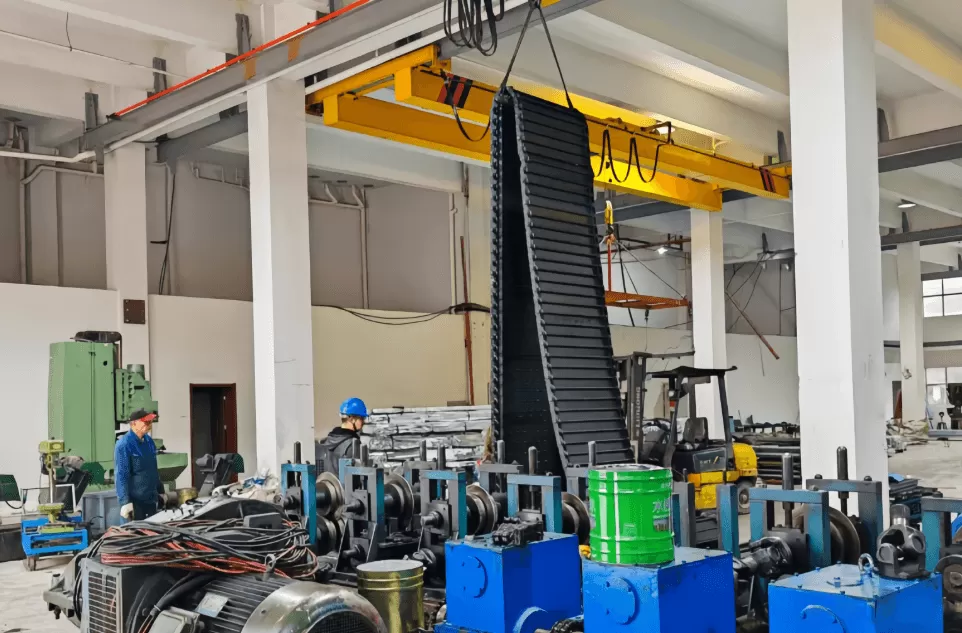

In the demanding environment of metal cutting, grinding, and automated manufacturing, contamination is the primary enemy of precision. Chips, abrasive dust, coolant mist, and fine particulates constantly threaten critical components: guideways, ball screws, linear rails, and telescopic shafts. A well-engineered accordion cover (also known as a folding bellows or way cover) provides a flexible, space-efficient barrier that directly translates to longer machine life and consistent part quality. For B2B engineering teams and plant managers, selecting the right protective cover is not a commodity purchase—it is a strategic decision that influences mean time between failures (MTBF) and overall equipment effectiveness.

1. Core Engineering Demands: Why Rigid Covers Fall Short

Rigid telescopic steel covers offer robust chip deflection but suffer from weight, noise, and limited accessibility. In contrast, a custom accordion cover delivers dynamic sealing across varying stroke lengths while maintaining a compact retracted footprint. The flexible nature allows integration into complex machine geometries—gantry mills, horizontal lathes, and robotic transfer lines. Typical pain points addressed by high-grade accordion covers include:

• Micro-penetration of coolant and ferrous chips – leading to abrasive wear on linear guide raceways.

• Space constraints in high-density automation cells – where rigid covers cannot retract sufficiently.

• High traverse speeds (>60 m/min) – causing flapping or resonance in poorly designed bellows.

• Chemical aggression from oil-based cutting fluids and synthetic coolants – degrading low-end PVC materials within months.

Engineered solutions address each of these with matched material compounds, optimized fold geometry, and reinforced mounting flanges. This is where the specific design of each accordion cover moves from a standard catalog item to a custom-engineered component.

2. Material Science and Construction Parameters for High-Duty Cycles

No single material suits every machining environment. A professional evaluation of temperature range, chip morphology (stringy vs. granular), and chemical exposure dictates the laminate structure. For industrial automation and CNC applications, the following material classes dominate:

2.1 Polyurethane (PU) Based Covers

PU offers exceptional abrasion resistance and flexibility at low temperatures (-30°C to +80°C continuous). It withstands repeated flexing without cracking, making it ideal for high-speed pick-and-place units and palletizing systems. Hydrolytically stable PU grades resist coolant degradation for >5 years in moderate conditions.

2.2 Neoprene / Chloroprene with Polyester Scrim

Widely used for general machining of steels and cast iron. Neoprene provides good oil resistance and flame retardancy (UL94 V-0 achievable). When reinforced with polyester fabric, tensile strength exceeds 400 N/5cm. This combination is common for vertical machining centers where falling chips exert impact loads.

2.3 High-Temperature Glass Fabric with Silicone Coating

For grinding, forging, and near-net-shape machining where surface temperatures can reach 180°C, glass fabric bellows are mandatory. Silicone coating provides flexibility up to 220°C intermittent, while reflective aluminum interlayers reduce radiant heat transfer to internal guides.

Leading manufacturers like QUNHUI utilize multi-layer laminates, adding anti-static layers to prevent dust attraction in cleanroom automation, and RFID tagging for maintenance tracking. Each custom accordion cover is fabricated using high-frequency welding or die-cutting to ensure seam strength equal to the base material.

3. Critical Design Dimensions: Stroke, Pitch, and Fold Geometry

The functional performance of a folding cover depends on three interrelated parameters: maximum extension (stroke), compressed height, and fold pitch. Inadequate pitch leads to self-contact and premature wear, while oversized pitch reduces lateral stability. Engineering formulas define minimum inside depth (ID) = 1.5 × fold height to prevent buckling under chip load.

• Compression ratio (extended length / compressed length) – typically ranges from 5:1 to 15:1 for linear guides. For a 3000 mm stroke, compressed height may be as low as 200 mm using optimized nested folds.

• Fold frequency (beats per minute) – each fold experiences cyclical stress. Finite element analysis (FEA) predicts fatigue life; proper designs exceed 10 million cycles at 0.3 MPa internal pressure differential.

• Side sealing profiles – integrated wiper seals (PUR or PTFE) prevent lateral ingress, especially on horizontal covers where coolant pools. Angled side walls promote fluid runoff.

For high-speed machining centers (spindle speeds 20k RPM, rapid traverses 48 m/min), an accordion cover must resist wind-up and harmonic vibrations. Adding internal polypropylene stiffeners every 6–8 folds dampens resonance without adding significant weight.

4. Industry-Specific Applications and Custom Configurations

Different production environments impose unique demands. Below are common scenarios where custom accordion covers outperform standard products:

4.1 Heavy-Duty Vertical Machining (VMCS)

Grey cast iron and Inconel machining produce abrasive, sharp-edged chips that can penetrate low-denier fabrics. Solution: double-layer covers with a replaceable outer wear strip and aramid fiber inner layer. QUNHUI has engineered such systems with integrated chip evacuation slopes, reducing manual cleaning intervals by 70% in test installations.

4.2 Automated Guided Vehicles (AGVs) & Linear Transfer Systems

Dust and debris on floor-mounted rails impair positioning accuracy. A low-profile accordion cover with IP54 sealing and magnetic strip attachment allows cleanroom-rated operation. The cover material must withstand repeated wheel traversal—polyurethane elastomers with Shore A 85 hardness excel here.

4.3 Laser/Plasma Cutting Tables

Fumes and sparks demand flame-retardant fabrics (V0 rating). Accordion covers in this sector often incorporate conductive filaments to dissipate static charge, preventing dust adhesion that could cause small fires.

For each application, dimensional surveys are mandatory. Modern manufacturers use 3D scanning to map mounting interfaces, ensuring that the accordion cover does not interfere with limit switches, lubrication lines, or sensors. This digitized approach reduces lead times and eliminates fitment issues during retrofits.

5. Performance Comparison: Material Options at a Glance

The following technical comparison assists engineers in specifying correct attributes for their automation environment (values represent typical ranges):

• Coated Polyester (standard economy) – Max operating temp: 90°C; tensile strength: 350N/5cm; resistance to mineral oils: fair; abrasion cycles (Taber): 2000. Suitable for light duty, low frequency.

• Polyurethane (ester-based) – Max temp: 110°C; tensile strength: 600N/5cm; oil resistance: excellent; abrasion cycles: 8000. Recommended for high-speed machining centers and automated lathes.

• PTFE-coated glass fabric – Max temp: 260°C; tensile strength: 900N/5cm; chemical resistance: outstanding (except molten alkali). For dry machining, grinding, and titanium processing.

• Hypalon (CSM) rubber – Ozone/UV resistant, ideal for outdoor automation (port cranes, solar panel cleaning robots). Temp range -20°C to +120°C.

Beyond base fabric, seam construction (sewn vs. welded) influences longevity. High-frequency welded seams eliminate needle holes, providing hermetic sealing against micro-fine dust. For washdown environments (food-grade automation), welded PU accordion covers are mandatory.

6. Installation and Maintenance Practices to Maximize Service Life

Even a premium accordion cover will underperform if incorrectly mounted or neglected. Maintenance teams should follow these guidelines:

• Ensure proper compressed length stop – Over-compressing the folds beyond their designed solid height ruptures inner welds. Install mechanical stops or limit switches.

• Regular inspection of fold valleys – Coolant residue and chip packing in valleys can stiffen the cover, causing hinge cracks. Weekly low-pressure air blowdown prevents accumulation.

• Check tensioning straps – Many covers use external nylon straps to maintain fold uniformity; loose straps lead to bunching and snagging on way edges.

• Replace worn wiper seals immediately – Side seals are the first line against abrasive ingress. If gaps exceed 0.5 mm, fine quartz or carbide particles will reach the linear bearings.

Data from field studies indicate that predictive replacement of accordion covers (based on hours of axis motion) reduces unplanned downtime by 40% compared to reactive repairs. For high-volume production lines, QUNHUI offers condition monitoring options using embedded conductive thread loops that signal when fold cracking begins.

7. Industry 4.0 Integration: Smart Covers and Predictive Alerts

While basic covers are passive mechanical components, modern automation infrastructure demands predictive insights. New-generation accordion covers can incorporate:

• Embedded magnetic or RFID tags – each cover receives a unique ID, storing installation date, material batch, and expected life under defined load profiles. Automated maintenance systems read this data during tool changes.

• Conductive wear detection – a thin conductive trace laminated into the outer fold. Once cracks propagate to the trace, a resistance change triggers a PLC alarm, prompting scheduled replacement before catastrophic failure.

• Temperature and humidity sensors – for cleanroom or aerospace component manufacturing, real-time monitoring ensures the cover's microclimate stays within spec.

These smart features transform a simple mechanical seal into a data node, aligning with zero-unplanned-downtime strategies. However, for most heavy machining cells, a well-constructed standard cover with rigorous inspection schedule remains the cost-effective choice.

8. Frequently Asked Questions (Engineering Focus)

Custom Engineering Drives Reliable Automation

Choosing a standard, off-the-shelf accordion cover for a CNC machining center or automated production line often leads to early failures, contamination-related bearing replacements, and unplanned stops. By contrast, a custom-engineered solution—tailored to the specific chip morphology, coolant chemistry, stroke length, and speed profile—directly contributes to measurable improvements in OEE. The investment in detailed design, proper material selection, and rigorous testing pays back through extended component life and consistent part tolerances.

For integrators and plant engineering teams seeking to upgrade their machine protection, partnering with an experienced manufacturer ensures that each accordion cover matches the mechanical interface exactly. QUNHUI combines material science, precision fabrication, and on-site validation to deliver covers that perform under real-world production stresses.
