Factory-Direct Nylon Cable Drag Chain for CNC & Industrial Autom

Modern industrial automation demands continuous, high-speed movement. Cables and pneumatic hoses powering your automated equipment face severe mechanical stress every day. Without proper structural shielding, friction, bending tension, and flying debris quickly destroy critical power lines, causing costly downtime.

A reliable nylon cable drag chain protects moving power lines and fluid hoses from premature wear. At QUNHUI, we manufacture high-performance machine tool accessories and plastic cable carriers designed for extreme operational environments. Whether you build multi-axis CNC machines or operate high-speed packaging lines, our heavy-duty cable carrier solutions keep your operations running smoothly.

Why Choose QUNHUI Nylon Cable Drag Chains?

Not all plastic cable carriers deliver the same operational life. Cheap plastics crack under continuous flexing, leading to emergency line shutdowns. QUNHUI engineers every plastic cable carrier using premium materials and field-tested mechanical design.

High-Grade PA66 Raw Material

We craft our drag chains from reinforced PA66 engineering plastic. This raw material offers high mechanical strength, excellent elasticity, and superior resistance to friction and abrasion.

• Tensile & Compression Resistance: Handles high payload capacities across long travel distances.

• Chemical & Oil Resistance: Resists industrial lubricants, synthetic coolants, and common solvents.

• Wide Temperature Range: Operates smoothly in ambient conditions ranging from -40°C up to +120°C.

Diverse Structural Configurations

Different industrial environments require specific cable housing designs. QUNHUI supplies multiple chain structures tailored to your machine layout:

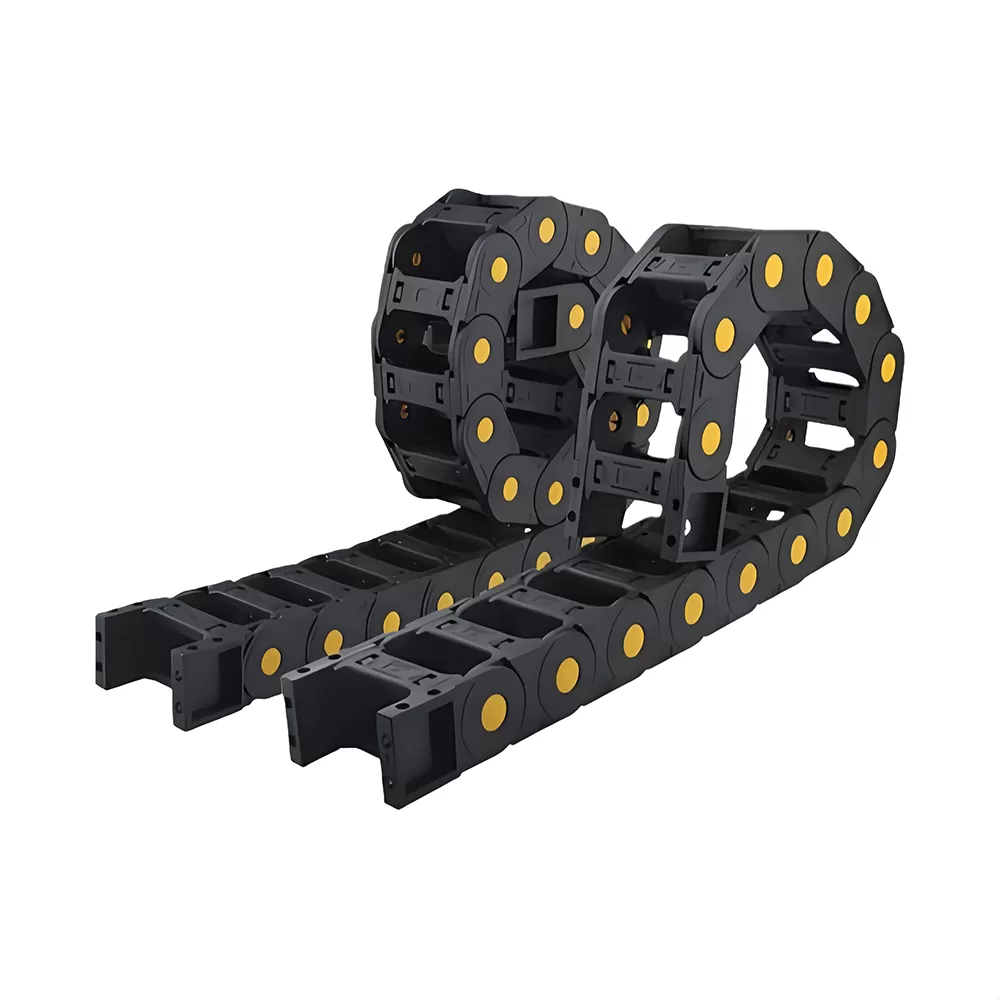

• Bridge Type Drag Chain: Features openable crossbars on both sides. Allows quick cable installation and continuous air circulation for high thermal heat dissipation.

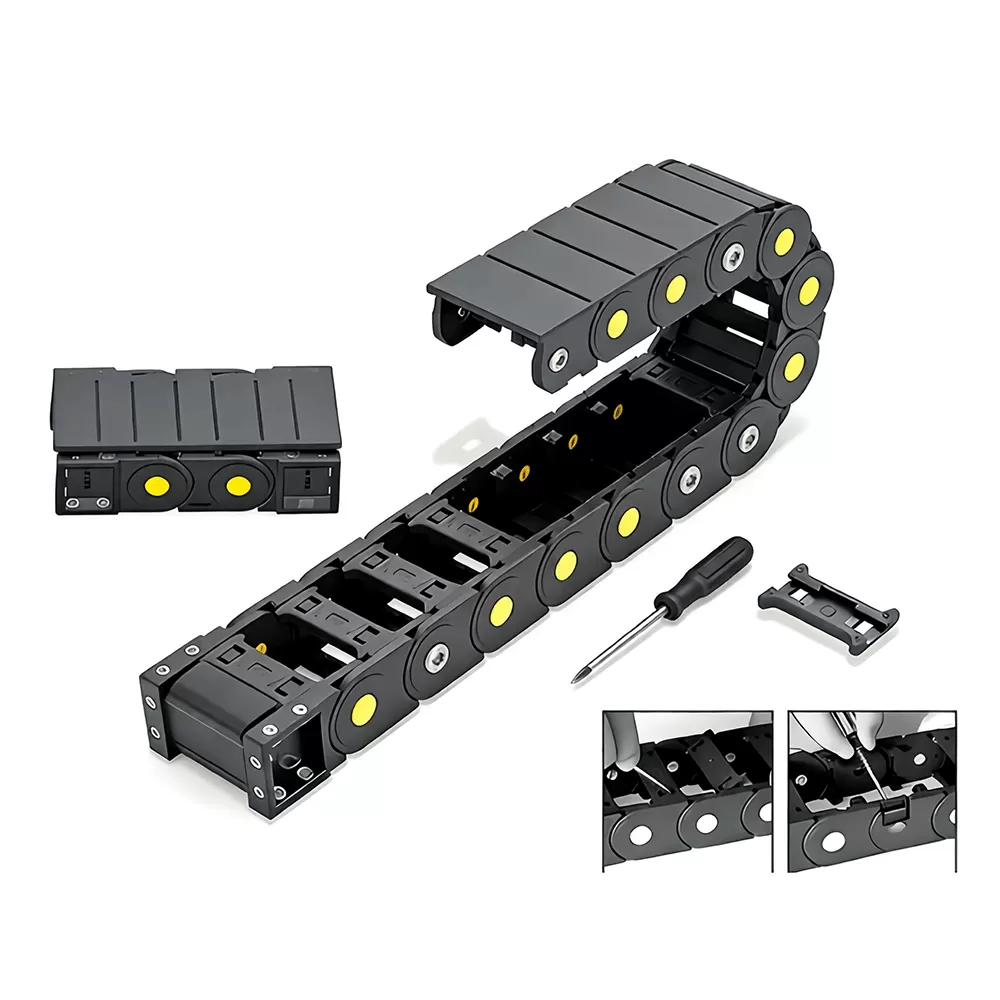

• Fully Enclosed Drag Chain: Sealed design prevents hot metal chips, wood dust, and chemical splashes from entering the interior cable chamber. Ideal for heavy CNC milling.

• Silent & High-Speed Drag Chain: Built with noise-damping joints. Perfect for cleanrooms, high-frequency industrial robots, and precision electronic manufacturing.

Modular Assembly & Simple Maintenance

Every nylon cable drag chain from QUNHUI utilizes a modular snap-fit design. Maintenance teams can easily adjust the travel length by adding or removing individual links using a standard flathead screwdriver. This flexible structure shortens installation timelines and lowers ongoing line maintenance costs.

Custom OEM/ODM Engineering Services

Standard off-the-shelf cable carriers do not fit every custom automation build. QUNHUI offers dedicated OEM and ODM manufacturing services to build custom nylon drag chain systems matching your exact engineering prints.

Custom Dimensions, Bending Radius, and Pitch

We manufacture custom drag chains across a wide spectrum of internal dimensions and bending radii:

• Inner Height & Width: Configured precisely to fit complex cable and hose bundles without overcrowding.

• Bending Radius (R): Customized bending radii prevent cables from exceeding their minimum bend allowance, preventing internal conductor failure.

• Pitch Options: Variable link pitch options balance motion smoothness against overall chain weight.

Specialized Material Formulations

If your machines operate under harsh conditions, standard plastic formulations may fail. We modify our PA66 raw materials to meet specialized job site demands:

• UL94-V0 Flame Retardant: Self-extinguishing material formulations for high-risk welding lines and hot-work areas.

• Anti-Static (ESD): Prevents static charge buildup in sensitive electronics assembly facilities.

• High-Temperature Resistance: Formulations that withstand localized heat exposure near glass or metal casting processes.

Custom Branding and Visual Style

Strengthen your machine brand identity. QUNHUI offers custom shell color matching (such as black main bodies with yellow or red openable crossbars) and direct logo embossing on the side links for large OEM orders.

Internal Separators and Shelving Systems

Prevent internal cable tangles. We supply vertical dividers and horizontal shelf separators to keep power cables, signal lines, and pneumatic tubes organized inside the chain cavity.

Typical Industry Applications

QUNHUI cable chains deliver stable protection across numerous automated production sectors.

CNC Machining Centers & Metalworking Lathes

CNC machine tools generate high-speed motion alongside sharp metal turnings and aggressive coolants. Our enclosed PA66 cable chain for CNC equipment protects servo motor cables and hydraulic lines from hot flying chips.

Industrial Robotics & Automated Assembly Lines

Articulated robotic arms move at high speeds across multiple movement axes. Light drag chain structures allow smooth motion acceleration without placing excess motor load on your equipment drive units.

Logistics, AGVs, and Automated Warehouses

Modern automated guided vehicles (AGVs) and storage and retrieval systems rely on smooth linear movement. Light plastic cable carriers lower vehicle mass, preserving battery energy and extending run times.

Laser Cutting & Packaging Machinery

High acceleration speeds demand stable line tracking. Our nylon cable drag chain options minimize vibration, keeping laser cutting heads and packaging sorters precise during high-velocity runs.

Why Partner with QUNHUI? Factory Strength & Advantage

Choosing a long-term supply partner requires trust in product quality and delivery capacity. QUNHUI stands out as a leading industrial drag chain supplier QUNHUI clients rely on worldwide.

• 15+ Years Industry Experience: We have spent over fifteen years perfecting machine tool protection and component manufacturing.

• 10,000 m² Manufacturing Facility: Our modern factory houses advanced injection molding lines, precision CNC machining tools, and laser cutting equipment.

• Rigorous Quality Control: Every batch undergoes strict tensile testing, flexural fatigue cycling, and thermal stability checks before shipment.

• Direct Factory Pricing: Cut out middleman markups. Buy direct from the manufacturing source for competitive wholesale prices and reliable lead times.

Complete Machine Tool Protection Systems

Beside our core drag chain product lines, QUNHUI manufactures complete protective solutions for machine builders and factory upgrades. Combine your orders to streamline your vendor management.

Chip Conveyor Systems

Keep your machine interiors clean. We manufacture hinged belt, scraper, and magnetic chip conveyor systems designed to clear away metal turnings automatically, eliminating manual cleanup stops.

Industrial Bellows Covers

Shield your machine guideways and precision ball screws. Our durable accordion bellows covers protect critical linear rails from dust, metal swarf, and coolant spray, maintaining long-term machining accuracy.

Metal Briquetting Presses

Transform loose metal turnings into high-density briquettes. Our hydraulic metal briquetting presses reduce scrap storage space and recover valuable cutting fluids for reuse.

Frequently Asked Questions (FAQ)

Q1: What is the Minimum Order Quantity (MOQ) for custom OEM nylon cable drag chains?
A1: Our standard inventory items have low minimum order quantities. For custom OEM/ODM projects involving unique molds, custom colors, or specialized materials, our standard MOQ typically starts at 50 to 100 meters, depending on cross-sectional size. Contact our sales team to review your project specifics.

Q2: How do I choose the correct bending radius for my nylon cable drag chain?
A2: Check the outer diameter (OD) of your thickest cable or hose inside the drag chain. As a general rule, the bending radius of the drag chain should be at least 8 to 10 times the outer diameter of the thickest cable inside. This ratio prevents excessive conductor strain and premature outer jacket wear.

Q3: Can QUNHUI provide CAD drawings or 3D models before ordering?
A3: Yes. Our engineering team provides complete 2D technical drawings and 3D CAD models (STEP/IGES formats) for your engineering reviews prior to production. This step guarantees exact dimensional compatibility with your equipment design.

Q4: How does a nylon drag chain compare to a steel drag chain?
A4: Nylon drag chains are lighter, run quieter, cost less, and resist corrosion better than steel chains. They suit high-speed applications perfectly. Steel drag chains are reserved for extremely heavy long-span loads or ambient temperatures exceeding 200°C.

Q5: What lead time can I expect for a wholesale drag chain order?
A5: Standard size wholesale orders ship within 3 to 7 business days. Custom OEM/ODM orders requiring special material compounding or new tool engineering ship within 15 to 25 days depending on design complexity.

Upgrade Your Automation Equipment with QUNHUI

Protect your moving lines with industrial-grade cable carrier systems built for long-term endurance. QUNHUI delivers high-performance solutions, rapid custom manufacturing, and factory-direct pricing for automation builders worldwide.

Need custom technical advice or immediate wholesale pricing? Contact the QUNHUI engineering team today to submit your specifications or request a fast, competitive quote for your project!
