How Does a Steel Drag Chain Improve Cable Service Life in Machining Centers?

Industrial automation and CNC machining centers demand reliable cable management systems that protect energy supply lines from mechanical stress, abrasion, and environmental contaminants. The steel drag chain represents a robust solution for heavy-duty applications where plastic carriers cannot withstand high loads, extreme temperatures, or aggressive metal chips. This article provides a comprehensive examination of steel drag chain design parameters, material grades, and application considerations for engineering professionals specifying cable carrier systems.

Understanding the Steel Drag Chain Structure

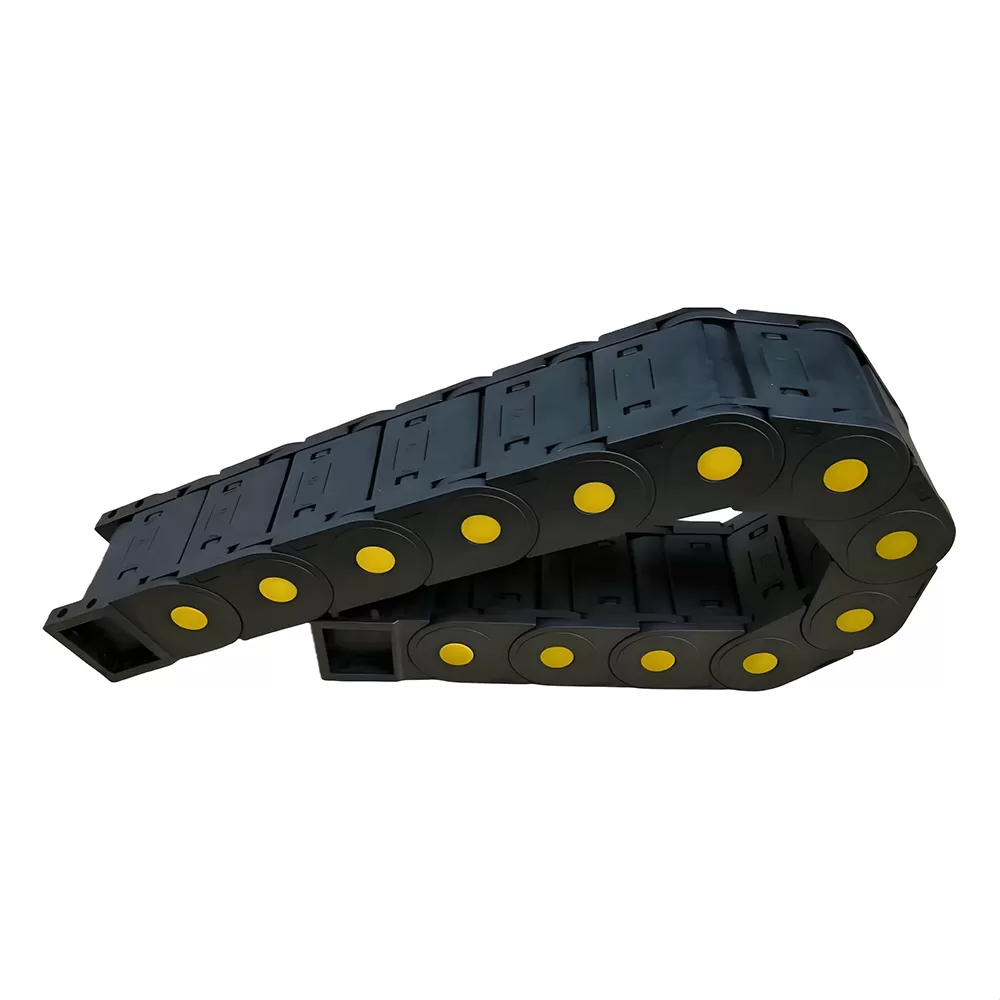

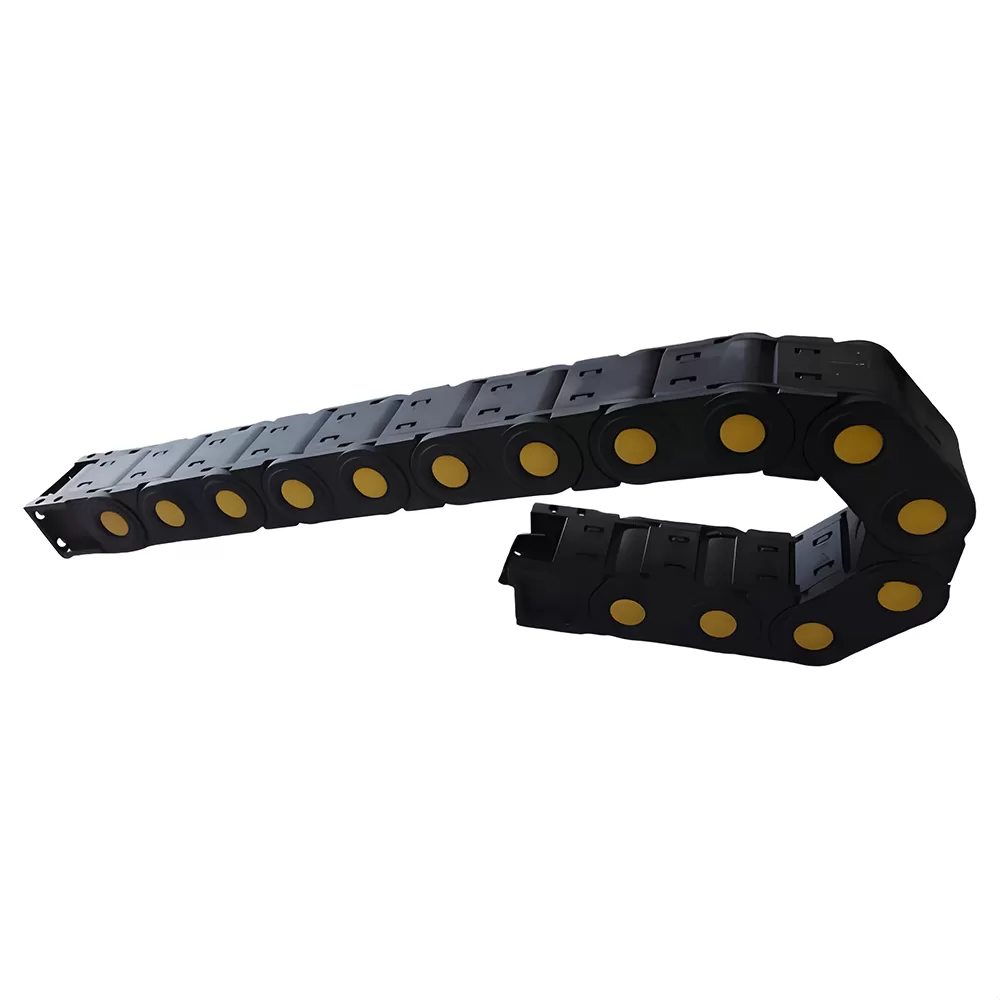

A steel drag chain, also known as a steel cable carrier or steel energy chain, consists of interconnected links forming a flexible trough that houses hydraulic hoses, electrical cables, and pneumatic tubing. The link construction uses high-strength steel plates joined by pivot pins, creating a continuous channel that supports and guides moving cables along machine axes. The open design permits easy access for cable installation and replacement, while the steel construction provides inherent protection against impact damage from falling workpieces or tooling.

Link pitch, internal height, and bending radius constitute the primary geometric parameters defining a steel drag chain's capacity. The pitch determines flexibility and smoothness of travel, with shorter pitches producing lower noise levels during operation. Internal height must accommodate cable bundles with adequate clearance to prevent compression, typically allowing 10% to 15% additional space beyond the cable diameter. The bending radius, measured to the chain's inner curve, must exceed the minimum bending radius of the stiffest cable by a sufficient margin to prevent conductor damage.

Material Grades and Surface Treatments

Carbon steel grades, including ST37 and ST52, form the base material for standard steel drag chains, offering a balance of strength and formability. For corrosive environments involving coolant fluids or caustic cleaning agents, stainless steel grades such as AISI 304 or AISI 316 provide superior corrosion resistance. Surface treatments significantly influence service life. Zinc plating with chromate conversion coating provides basic corrosion protection for indoor applications. For heavy-duty machining environments with abrasive chip loads, hardened steel chains with induction-hardened link surfaces demonstrate extended wear resistance.

QUNHUI manufactures steel drag chains using precision blanking and forming processes, with link geometry optimized for high-strength articulation. The pivot pin design incorporates hardened steel pins and bushing elements that distribute wear across larger contact areas, reducing the rate of elongation during service.

Load Capacity and Speed Ratings

The load capacity of a steel drag chain depends on link section modulus, pin diameter, and the number of chain strands supporting the cable weight. Suspended weight from cables and hoses represents a static load component, while acceleration forces during axis movements contribute dynamic loads. Engineering calculations typically use a safety factor of 4 to 6 against ultimate tensile strength to account for shock loads and vibration during high-speed operation.

Travel speed and acceleration directly affect the chain's dynamic behavior. Standard steel drag chains operate at speeds up to 60 meters per minute with accelerations of 2 meters per second squared. High-performance designs with reduced link mass and precision-ground pins achieve speeds exceeding 100 meters per minute. The unsupported span length between the fixed and moving ends determines the chain's ability to maintain the trough shape without sagging or buckling. Longer spans require higher chain stiffness or additional support troughs.

Performance Characteristics Across Applications

Machine tool applications present some of the most demanding conditions for steel drag chains. Continuous exposure to hot steel chips, cutting fluids, and high-frequency vibration requires robust sealing and chip-resistant link designs. Steel drag chains with closed cross-section links prevent chip ingress that could cause cable insulation abrasion. The smooth interior surface minimizes friction on cable jackets, preserving electrical integrity over millions of cycles.

Automated welding systems and robotic cells require steel drag chains capable of handling multiple media lines simultaneously. Hydraulic hoses, coolant supply lines, and power cables with shielding must be arranged in specific layers to prevent cross-abrasion. QUNHUI provides custom divider configurations within the steel drag chain internal space, ensuring individual lines maintain their designated position throughout the motion envelope.

Installation and Maintenance Considerations

Proper steel drag chain installation begins with accurate determination of the chain length required for the travel distance. The service length, including the bending loop and fixed ends, must accommodate the moving cables without excessive tension or compression. Guide troughs or glide rails support the chain during long travel applications, preventing lateral deflection that could cause cable pinching.

Chain elongation occurs gradually as pivot pins and link bores wear during operation. Regular inspection intervals, typically every 500 operating hours, allow measurement of chain length extension. When elongation exceeds 3% of the original length, pin and bushing replacement becomes necessary to maintain proper cable protection. Lubrication of pivot points using high-pressure grease with extreme-pressure additives extends wear life, particularly in high-cycle applications.

Cable layering within the chain requires careful arrangement to prevent twisting and tension imbalances. The heaviest cables should be positioned toward the chain's outer radius, while lighter wires occupy the inner radius. All cables must have sufficient length to reach the moving end without kinking, and strain relief at both fixed and moving ends prevents pull-out forces from transmitting through the cable conductors.

Selection Criteria for Steel Drag Chains

Specifying a steel drag chain for a given machine or system involves evaluating several performance and environmental factors. The total cable weight, including hydraulic hoses filled with fluid, determines the chain's required tensile capacity. The frequency and speed of axis motions influence wear rate and the required pin hardness. Environmental factors such as ambient temperature, presence of metal chips, and coolant concentration guide material and seal selection.

Space constraints around the machine axis limit the available bending radius. Steel drag chains with smaller pitch designs achieve tighter bending radii while maintaining adequate internal space for cables. For retrofit applications where existing cable lengths are fixed, the chain's internal height and width must accommodate the existing bundle without requiring cable re-termination. QUNHUI provides dimensional data and layout assistance to ensure the selected chain fits within the available mounting space while satisfying load requirements.

Comparing Steel and Plastic Drag Chains

Steel drag chains offer advantages in load capacity, temperature resistance, and chip protection that exceed plastic carrier capabilities. Plastic chains operate effectively in clean environments with moderate loads and speeds, but they degrade rapidly under chip impact or exposure to cutting fluids containing esters or aromatic hydrocarbons. Steel chains withstand the puncturing action of sharp chips and maintain structural integrity at elevated temperatures exceeding 200°C, where plastic carriers would soften and deform.

The initial cost of steel drag chains exceeds that of plastic equivalents, but the extended service life and reduced maintenance frequency often justify the premium. For machines operating three shifts per day, steel chains typically achieve three to five times the service life of comparable plastic carriers. The ability to replace pins and bushings rather than the entire chain further reduces lifecycle costs.

Engineering Standards and Quality Verification

Manufacturing standards for steel drag chains include dimensional tolerances for link pitch, pin hole alignment, and side clearance. The DIN 41424 standard provides guidelines for energy chain classification and load rating. Material testing verifies tensile strength, hardness, and surface roughness to ensure consistent articulation properties. QUNHUI production facilities operate under ISO 9001 quality management, with statistical process control monitoring critical dimensions during manufacturing.

Performance verification includes endurance testing on dedicated test rigs that simulate application motion cycles with representative cable loads and accelerations. Temperature testing confirms the chain's ability to operate under rated environmental conditions without dimensional change or loss of flexibility.

Frequently Asked Questions

Q1: What determines the minimum bending radius for a steel drag chain?

The minimum bending radius is governed by the stiffest cable or hose installed in the chain. Each cable manufacturer specifies a minimum permanent bending radius, typically 10 to 15 times the cable diameter. The steel drag chain's bending radius must exceed this value by at least 15% to prevent exceeding the cable's strain limit during articulation.

Q2: How often should a steel drag chain be lubricated?

Lubrication intervals depend on operating cycles and environmental conditions. Standard recommendations specify lubrication every 2000 hours of operation, or more frequently in high-speed applications exceeding 80 meters per minute. The lubricant should be applied to pivot pins using a low-pressure grease gun, followed by cycling the chain to distribute grease uniformly across bearing surfaces.

Q3: Can steel drag chains be used in vertical orientation?

Vertical applications require additional support devices such as guide rails or circulating chains with tensioning mechanisms. The chain's self-weight and cable load cause vertical sagging, which can lead to pin misalignment and premature wear. QUNHUI provides vertical guidance systems that maintain chain alignment and prevent sagging in elevator and lift applications.

Q4: What are the failure indicators for a steel drag chain?

Excessive chain elongation, visible pin wear, uneven cable abrasion, and increased noise during articulation indicate approaching failure. Regular measurement of chain pitch extension and visual inspection for link distortion identify problems before cable damage occurs. Vibration analysis can detect pin wear before significant elongation develops.

Q5: How does coolant temperature affect steel drag chain performance?

Coolant temperature influences material properties through thermal expansion and lubricant degradation. The coefficient of thermal expansion for steel affects pin clearance, with higher temperatures reducing clearance and potentially causing binding. Coolants above 60°C require modified lubricant formulations with higher thermal stability and may necessitate increased pin clearance to maintain smooth articulation.

Q6: What design features prevent chip ingress into steel drag chains?

Chip-resistant designs include closed outer link plates, overlapping side panels, and brush seals at the chain's moving ends. The link geometry prevents sharp chips from entering the internal cable space, while the smooth exterior surface allows chips to slide off the chain without accumulating.

Q7: How is the required chain length calculated for a new machine application?

The chain length equals the travel distance multiplied by two (for upper and lower chain runs), plus the bending loop length determined by the bending radius and chain pitch, plus an additional allowance for cable sweep at the moving end. A 5% contingency length is added to accommodate future cable additions or routing adjustments.

Specification and Sourcing Guidance

Selecting a steel drag chain for industrial machinery requires detailed evaluation of cable configurations, motion parameters, and environmental exposure. Engineering drawings should specify internal height and width, maximum bending radius, and tensile strength requirements. The chain's weight affects the drive system requirements, particularly in applications with vertical orientation or high acceleration rates.

Supplier cooperation during the specification phase ensures that the final design matches installation requirements and cable routing constraints. QUNHUI engineering representatives provide application analysis, including load calculations, life prediction modeling, and mounting configuration recommendations. All critical dimensions are verified against machine interface drawings to ensure retrofit compatibility.

For product documentation, dimensional drawings, and application engineering support for steel drag chain projects, please contact our engineering department at qunnhui3286@gmail.com. Quotations include delivery schedules, material certificates, and performance test reports as required for project documentation.
