The Role of Automated Scrap Management in High-Speed Machining
In large-scale manufacturing operations, continuous production relies heavily on the steady removal of metal waste. High-speed CNC turning, milling, and boring centers produce substantial volumes of metal scrap every hour. If left unmanaged within the machining envelope, these scraps accumulate rapidly, leading to thermal distortion, scraped surfaces, tool damage, and direct interruptions to the manufacturing cycle.
Integrating an automated machine tool chip conveyor resolves these bottlenecks. Rather than relying on operator intervention to clear scrap trays, an automated transport system extracts waste continuously during the machining cycle. This steady removal helps maintain thermal equilibrium within the machine enclosure, as hot chips are transferred away from the workpiece and spindle assembly before transferring their thermal energy. QUNHUI provides engineered solutions designed to match these manufacturing demands, aligning conveyor mechanics with specific chip volumes and workspace configurations.
.webp?t=1782899812271 "集中输送系统-(1)")
Classifying the Machine Tool Chip Conveyor by Mechanical Design
Selecting the appropriate machinery requires a detailed understanding of the mechanical configurations available. Different chip shapes, materials, and sizes require distinct conveyor mechanisms to prevent mechanical failure and ensure consistent discharge.

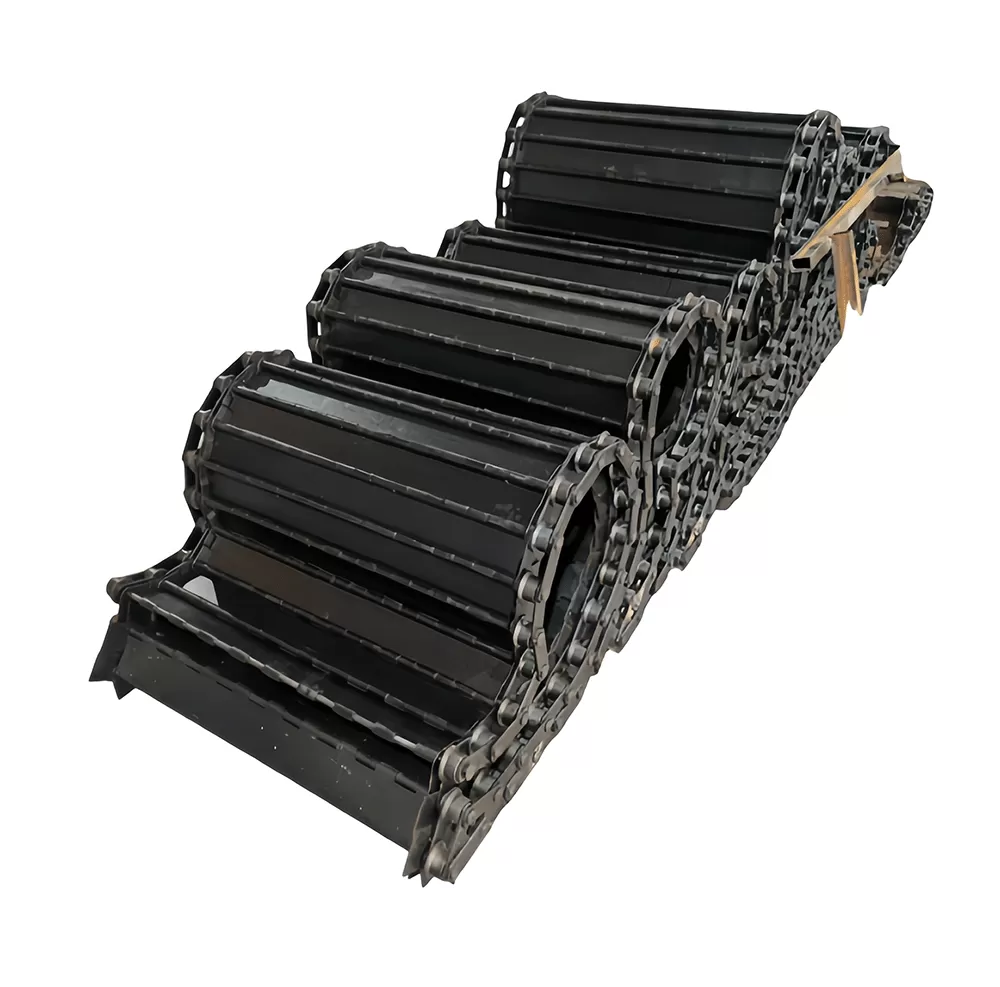

Hinged Belt Conveyors
Hinged belt systems represent the most widely deployed design in the machining industry. These systems consist of interconnected steel plates that form a continuous loop, driven by heavy-duty side chains over sprockets.
Applicability: Highly effective for handling long, curly, bushy steel chips, heavy scrap, and small drop-offs from turning centers.
Mechanical Design: The belt surface features raised cleats or ribs that prevent scrap from sliding backward on inclined sections. The pitch of the hinge (commonly ranging from 31.75 mm to 50.8 mm) dictates the minimum turning radius and overall torque requirements of the drive unit.
Limitations: Very fine particles, such as cast iron dust or brass shavings, can slip through the gaps between hinges, accumulating in the lower conveyor frame and causing wear to the internal chain guide tracks.
Scraper and Drag Chain Conveyors
Scraper systems utilize a series of cross-bars or flights mounted between two strands of drive chain. These flights drag along the bottom floor of a hardened steel trough, scraping particles upward toward the discharge chute.
Applicability: Best suited for short, broken chips, fine cast iron dust, brass shavings, and aluminum milled particles.
Mechanical Design: The bottom plate of the conveyor housing is typically lined with hardened materials to withstand constant friction. This configuration ensures that fine particles that drop to the bottom are physically scraped out rather than settling in the coolant reservoir.
Limitations: Long, stringy nest-like chips can wrap around the scraper flights, causing structural binding or chain misalignment.
Magnetic Conveyors
Magnetic transport systems do not employ an exposed moving belt. Instead, a series of powerful permanent magnets are mounted to a drive chain running beneath a sealed, stationary stainless steel top plate.
Applicability: Designed specifically for ferrous materials, including cast iron fines, steel filings, and small magnetic stamping scrap.
Mechanical Design: Because the moving mechanism is completely sealed inside an oil or coolant bath within the frame, the raw scrap never comes into contact with the internal drive chains or sprockets. This design reduces mechanical wear.
Limitations: Ineffective for non-ferrous materials such as aluminum, brass, copper, and 300-series stainless steels.
Screw and Spiral Conveyors
Screw systems utilize a rotating helical auger or spiral shaft to push chips forward through a custom-shaped trough.
Applicability: Ideal for dry machining applications or setups with confined space constraints directly underneath the machine bed.
Mechanical Design: The screw can be shafted or shaftless, depending on the length and consistency of the chips. The low profile allows these units to fit into narrow machine cavities where a traditional belt system cannot be integrated.
Limitations: Limited transport distance and reduced efficiency on steep vertical inclines compared to belt-driven units.
Material Compatibility and Chip Morphology
A common cause of failure in a machine tool chip conveyor is mismatching the system type with the material being machined. Metal scrap behaves differently based on its mechanical properties and how it fractures during the cutting process.
Selecting the right system requires analyzing the specific material characteristics:
Long Steel Turnings: Turning tough structural steels often produces long, continuous nesting chips. These require a hinged belt system equipped with top-mounted scrap crushers or specialized cleat configurations to prevent the nest from catching on the conveyor housing.
Aluminum Castings and Profiles: Aluminum is lightweight and often sticky under high temperatures. Its low density means fine aluminum chips easily float in the coolant. A scraper conveyor combined with a specialized surface mesh is often required to force these floating chips down and drag them out of the tank.
Cast Iron and Hardened Powders: Cast iron fractures into highly abrasive micro-particles without forming traditional chips. These fine powders act as an abrasive paste when mixed with coolant. Scraper systems with hardened wear tracks or magnetic units are mandatory to prevent fast abrasive wear on moving parts.
Brass and Bronze Alloys: These materials generate small, brittle chips. Like cast iron, they require scraper systems, but because they are non-ferrous, magnetic options are ruled out.
Integrating Coolant Filtration and Management
Modern CNC machining relies on high-pressure coolant systems to maintain tool life and finish quality. The machine tool chip conveyor serves as the primary stage of the coolant filtration loop.
When chips drop into the conveyor, they carry large quantities of coolant with them. Effective systems must separate the liquid from the solid waste to prevent coolant loss and fluid contamination. Many industrial setups implement dual-zone systems that incorporate drum filters or paper band filters alongside the main conveyor mechanism.
Perforated Plates and Screens: Hinged belts and scraper troughs often feature perforated screen plates at the bottom. The coolant drains through these micro-openings into the main reservoir, while the dry chips are carried up the incline.
Rotary Drum Filters: In applications with high volumes of fine particles, a rotary drum filter is integrated into the conveyor frame. As dirty coolant flows into the drum, the screen captures particles as small as 50 microns, while a self-cleaning mechanism continuously flushes the screen.
Magnetic Separation Cylinders: For ferrous applications, magnetic rollers can be positioned at the discharge transition to capture suspended iron dust from the fluid before it returns to the main high-pressure pump station.
Proper filtration protects the high-pressure pumps from premature seal wear and prevents fine metal debris from recirculating through the nozzles, which could otherwise scratch the machined workpiece surfaces. QUNHUI engineers conveyor frames with integrated settling tanks and secondary filtration options to maintain fluid cleanliness throughout continuous shifts.
Maintenance Protocols for a Machine Tool Chip Conveyor
To avoid unscheduled downtime in automated production lines, the conveyor system must be maintained according to structured protocols. Because these machines work in abrasive, high-friction environments, certain components are subject to predictable wear.
Key maintenance areas include:
Chain Tension Adjustment: Over time, drive chains stretch due to mechanical load. Regular inspections are required to adjust the tensioning bolts on the conveyor tail ends. Excess slack can cause the chain to jump off the sprockets, leading to structural damage.
Wear Strip Replacement: The tracks on which the conveyor chain glides are lined with wear-resistant strips. Utilizing hardened materials like UHMW-PE for light-duty applications or manganese steel for heavy-duty setups protects the main structural frame from wearing out.
Torque Limiter Maintenance: Most systems utilize a mechanical clutch or an electronic current-limiting sensor on the drive motor. If a large scrap piece jams the belt, the torque limiter must slip or shut down power instantly to prevent the motor from tearing the chain apart. Regular testing of this safety mechanism is vital.
Lubrication Protocols: Drive chains and bearings require continuous or scheduled lubrication, particularly in dry machining setups where the lubricating properties of water-soluble coolants are absent.

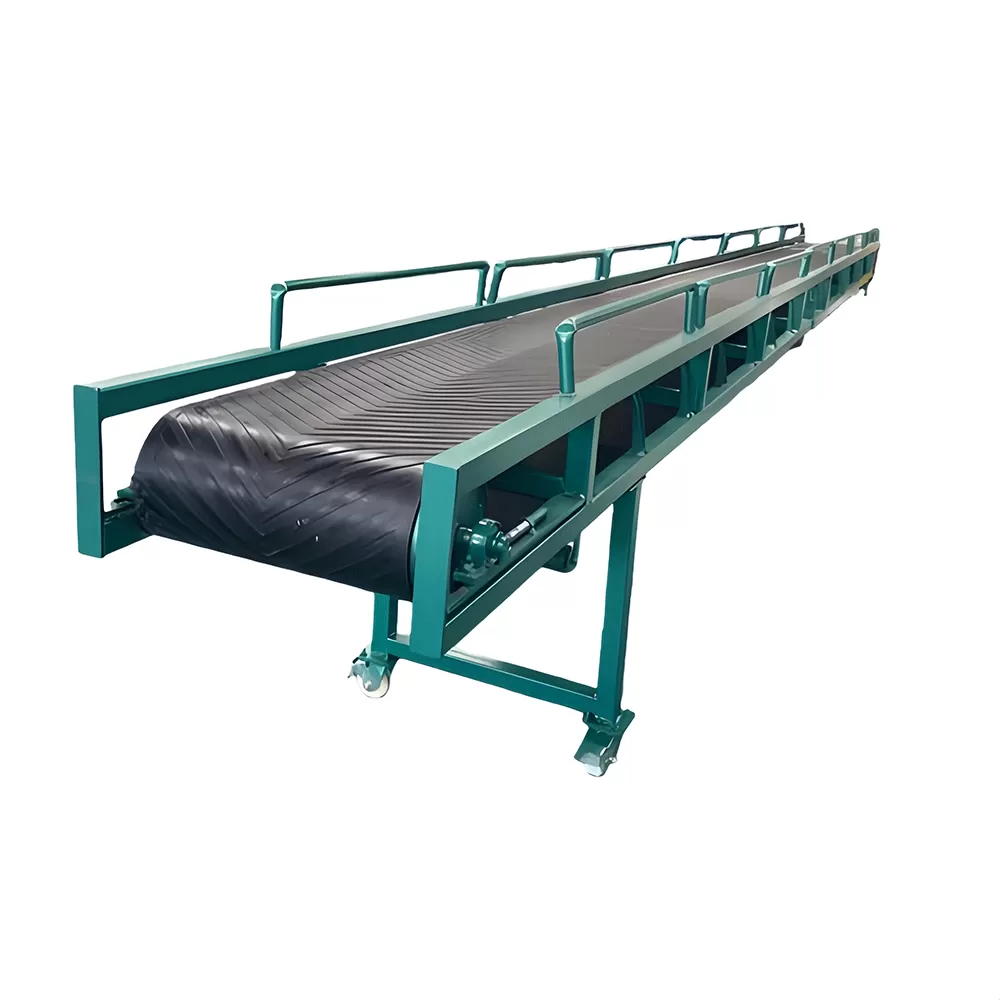

.webp?t=1782899812271 "组合皮带输送机-(1)")
Designing Tailored Solutions with QUNHUI
Every manufacturing facility presents unique space limits, machine layouts, and material configurations. A standard off-the-shelf conveyor rarely matches the exact demands of a high-capacity CNC cell.
At QUNHUI, we analyze the specific parameters of your production environment:
Discharge Height and Angle: Customized configurations allow the conveyor discharge chute to match standard scrap cart heights or integrate directly with factory-wide overhead scrap flumes.
Space Constraints: Custom frame profiles allow our systems to sit within the narrow footprint of multi-axis machining centers without obstructing maintenance access doors.
Material Selection: By using hardened alloys for high-wear zones and selecting the appropriate chain pitches, we build systems that endure the demanding cycles of automotive, aerospace, and heavy machinery manufacturing.
By focusing on robust mechanical design and logical component placement, QUNHUI delivers reliable chip management systems that support uninterrupted production cycles.
Frequently Asked Questions
Q1: What are the primary indicators that a scraper conveyor is preferred over a hinged belt system?
A1: A scraper conveyor is preferred when the machining process generates small, broken chips, fine particles, or abrasive cast iron and brass dust. Unlike hinged belts, which allow small particles to slip through the plate gaps, scraper systems physically drag fine sediment along the floor of the housing to prevent accumulation in the coolant tank.
Q2: How does QUNHUI prevent conveyor belt jamming caused by oversized drop-offs?
A2: We address jamming issues by integrating adjustable mechanical torque limiters or electronic overload sensors on the drive system. When an oversized workpiece scrap or tool shank falls into the conveyor and blocks movement, the system immediately cuts power or slips the clutch, preventing mechanical damage to the chain and structural frame.
Q3: Can a magnetic conveyor be utilized for aluminum machining operations?
A3: No, magnetic conveyors rely on permanent magnets positioned beneath a stainless steel plate to attract and transport materials. Since aluminum is non-ferrous, it will not respond to the magnetic field. For aluminum machining, a hinged belt or a scraper conveyor with fine filtration screens is the appropriate choice.
Q4: What maintenance steps are required to preserve the lifespan of the conveyor chain?
A4: Preserving chain lifespan requires regular tension checks to prevent slack-induced sprocket jumping, periodic lubrication of the chain linkages (especially in dry machining setups), and the timely replacement of worn guide tracks and wear strips before the main frame sustains structural wear.
Q5: How does chip conveyor design impact the overall lifetime of CNC coolant?
A5: The design impacts coolant life through integrated pre-filtration. Conveyors equipped with fine screens, settling zones, or rotary drum filters separate fine metal particles from the fluid immediately. This prevents the particles from oxidizing or acting as a breeding ground for bacteria, thereby maintaining coolant chemistry and cleanliness.
