Reducing Downtime in Ferrous Metalworking with Specialized Magnetic Conveyors

Automated CNC machine shops processing steel, cast iron, and ductile iron require highly reliable material handling systems to manage the continuous accumulation of metal waste. Unlike non-ferrous materials such as aluminum or brass, ferrous metals present specific opportunities for automated extraction due to their magnetic properties. Implementing a dedicated magnetic separation system is a major step toward maintaining continuous uptime in high-production environments. Working with an experienced magnetic chip conveyor manufacturer allows industrial facilities to implement custom configurations designed to handle heavy chip loads, fine powders, and abrasive scrap while ensuring that liquid coolants are managed and preserved.

Industrial operations require components that withstand continuous wear while maintaining structural integrity. As an established magnetic chip conveyor manufacturer, QUNHUI designs material handling systems that isolate moving mechanical parts from the abrasive environment of metal cutting. By understanding the underlying physics of magnetic separation and the mechanical demands of high-speed machining, manufacturing engineers can select conveyor configurations that prevent machine downtime and reduce manual maintenance intervals.

The Physics and Structural Mechanics of Magnetic Separation

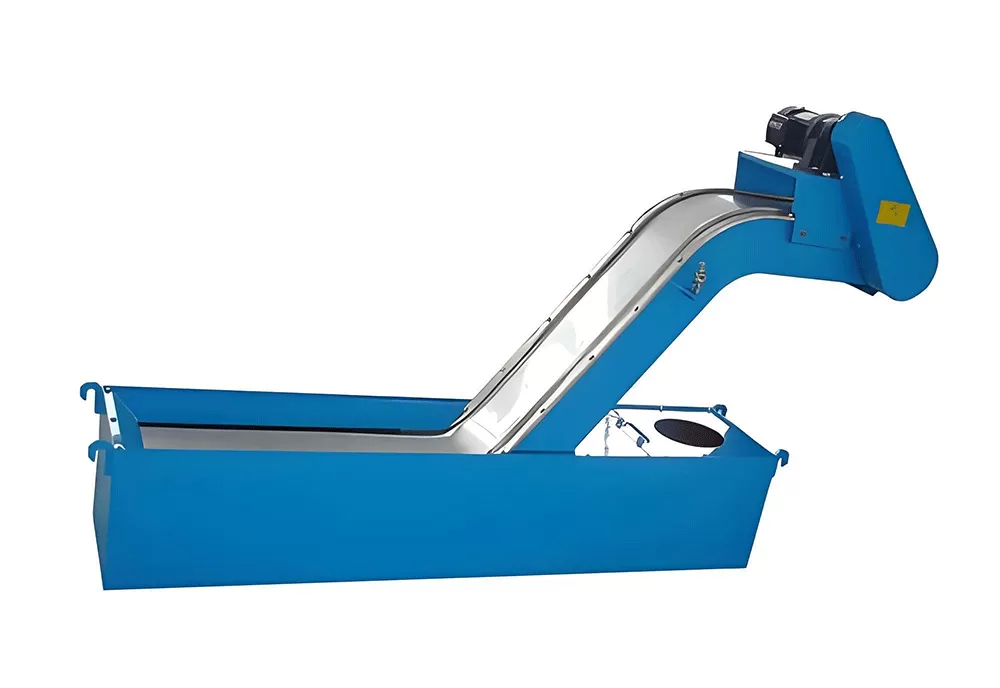

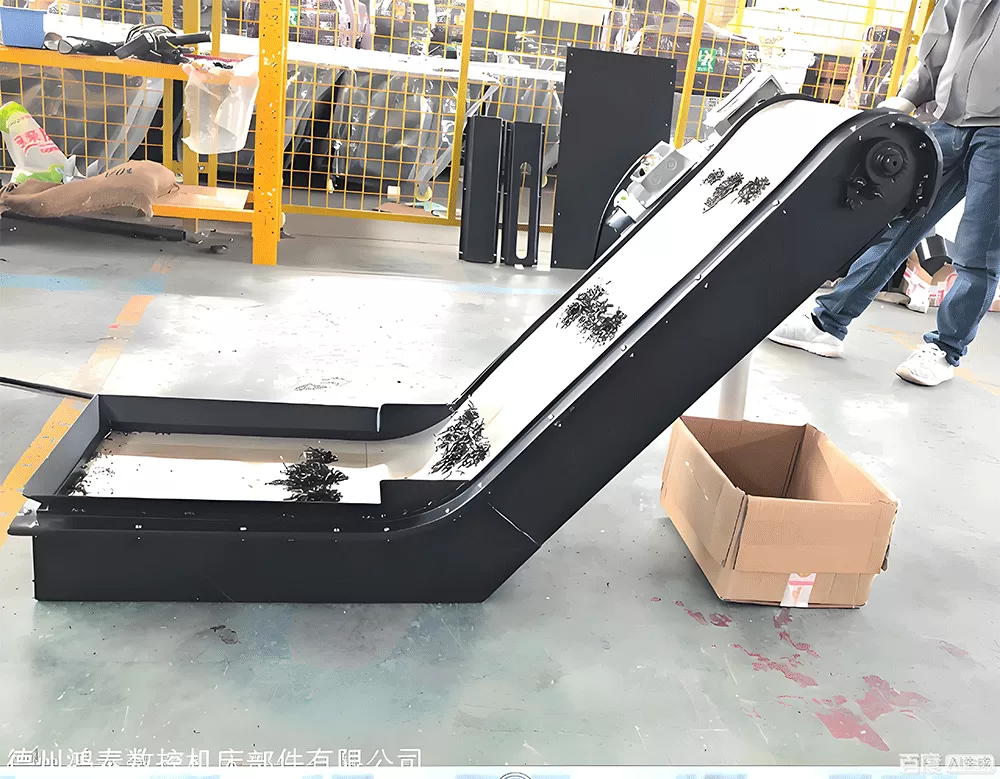

The operational core of a magnetic conveyor lies in the interaction between moving permanent magnets and stationary ferrous scrap. Unlike conventional conveyor belts that transport materials on a exposed moving surface, a magnetic conveyor utilizes a stationary outer slider bed. Beneath this non-magnetic stainless steel plate, a continuous chain-driven loop of powerful magnets attracts and drags ferrous materials along the surface toward the discharge point.

Magnet Selection and Magnetic Field Depth

The choice of magnetic material determines the conveyor's capability to capture different types of metal scrap. Two primary magnetic alloys are utilized in these systems:

• Barium or Strontium Ferrite (Ceramic) Magnets: These materials provide a deep magnetic field that is effective for attracting larger, heavier scrap pieces from a distance. They are highly resistant to demagnetization and are cost-effective for standard production lines.

• Neodymium-Iron-Boron (NdFeB) Rare Earth Magnets: These magnets deliver a highly concentrated magnetic flux. They are applied when the conveyor must capture micro-fines, cast iron powder, or small chips through thicker stainless steel slider beds or heavy pools of high-viscosity cutting oil.

A professional magnetic chip conveyor manufacturer must carefully calculate the magnetic flux density and pole spacing. If the spacing is too wide, fine particles may accumulate in the dead zones between the magnetic assemblies. If the poles are too close, the magnetic field may not penetrate deep enough into the coolant flow to capture suspended particles before they are washed back into the reservoir.

The Mechanics of the Stainless Steel Slider Bed

The stationary slider bed is typically constructed from high-grade, non-magnetic stainless steel, such as AISI 304 or AISI 316. Because these alloys have very low magnetic permeability, the magnetic field passes through the plate with minimal attenuation, acting directly on the metal scrap. The surface must be highly polished to reduce friction as the metal chips are dragged along the bed. Over time, the continuous sliding of abrasive steel chips can cause physical wear, which is why premium designs incorporate hardened wear strips or specialized surface treatments in high-friction zones.

Overcoming Operational Bottlenecks in Ferrous Machining

Metalworking facilities face several distinct challenges when handling ferrous scrap. Understanding these pain points allows plant managers to coordinate with their magnetic chip conveyor manufacturer to implement specific structural solutions.

Fine Cast Iron Powder and Sludge Management

Cast iron machining does not produce long, curly chips; instead, it generates a fine, graphite-rich dust. When mixed with water-based coolants, this dust forms an abrasive sludge that can quickly penetrate the joints of traditional hinge-belt conveyors, causing rapid wear on pins and bushings. A magnetic conveyor solves this issue because its moving parts—including the drive chains, sprockets, and guide tracks—are completely enclosed inside the conveyor frame, running in a continuous oil bath. The abrasive sludge remains on the outside of the slider bed, completely isolated from the internal drive mechanism.

Coolant Preservation and Liquid-Solid Separation

In high-volume machining, coolants represent a significant operational cost. When scrap is discharged from the machine, it carries a film of coolant with it. If this liquid is not recovered, chemical costs rise and the dry scrap becomes more difficult to recycle. To resolve this, the conveyor frame is designed with a sloped incline, often referred to as the de-watering zone. As the magnets drag the chips up this incline, gravity pulls the liquid coolant downward, allowing it to drain through integrated filtration screens back into the main coolant reservoir. The angle of this incline must be balanced based on the viscosity of the fluid and the geometry of the chips.

Tailored Configurations for Custom CNC Automation

Every manufacturing facility uses a unique layout of machine tools, ranging from vertical machining centers to multi-spindle automatic lathes. A standard, off-the-shelf conveyor rarely meets the specific space limitations and volume requirements of custom CNC automation. Consequently, collaborating with an adaptable magnetic chip conveyor manufacturer like QUNHUI ensures that the mechanical dimensions and capacity ratings are tailored to the exact application.

Determining the Correct Conveyor Incline and Speed

The design of the discharge path is highly dependent on the machine tool output and shop floor layout. Standard configurations typically feature incline angles of 30, 45, or 60 degrees. While a steeper angle conserves valuable floor space, it requires a more robust magnetic array to prevent heavy steel parts or dense clusters of chips from sliding backward down the incline. The linear speed of the internal conveyor chain must also be adjusted. If the chain moves too fast, the magnets may lose hold of fine particles due to hydrodynamic drag from the coolant; if it moves too slowly, scrap can accumulate in the receiving hopper, causing a blockage.

Integration with Filtration and Coolant Tanks

Modern manufacturing requires unified liquid management. The magnetic conveyor is often integrated directly into a multi-stage filtration tank. As the raw coolant and chip mixture enters the conveyor hopper, primary magnetic separation removes the bulk of the ferrous scrap. The remaining liquid then flows through secondary paper band filters or cyclone separators to remove non-ferrous contaminants and ultra-fine particles. By coordinating the design of the conveyor frame with the coolant tank geometry, engineers can create a compact footprint that fits neatly underneath the machine tool's discharge chute.

Durability Engineering and Internal Maintenance Cycles

Industrial machinery must operate continuously across multiple shifts with minimal intervention. To achieve this level of reliability, specific engineering choices must be made regarding the internal components of the conveyor.

Drive Protection and Torque Limiters

Even in highly controlled environments, foreign objects such as hand tools, heavy bar ends, or oversized raw stock can accidentally fall into the conveyor hopper. If these solid steel objects wedge themselves against the slider bed, they can cause serious structural damage to the conveyor chain or burn out the electric drive motor. To prevent this, QUNHUI integrates mechanical slip clutches or electronic current-sensing torque limiters into the drive assembly. When an overload is detected, the system immediately halts the motor or slips the drive sprocket, allowing the operator to clear the obstruction without damaging the internal mechanisms.

Internal Chain Tensioning and Lubrication

Because the internal drive chain operates inside a sealed housing, maintaining proper tension is vital for preventing chain derailment. Premium conveyor designs feature external tensioning adjustment points, allowing maintenance personnel to adjust the chain slack without dismantling the outer casing or draining the internal oil bath. Furthermore, the use of heavy-duty, pre-lubricated roller chains ensures a long operational life, even under the constant cyclical loads of heavy-duty industrial scrap removal.

Evaluation Criteria for B2B Procurement Managers

Selecting a reliable supplier involves assessing more than just dimensional compatibility. Procurement managers and plant engineers must evaluate the manufacturing standards and quality control protocols of the chosen partner.

When sourcing from a magnetic chip conveyor manufacturer, the following criteria should be thoroughly reviewed:

• Structural Plate Thickness: Frame components should be manufactured from thick-gauge steel (typically 3mm to 5mm) to resist warping and structural twisting under load.

• Magnetic Stabilization: The permanent magnets must undergo stabilization processes to ensure they do not lose their magnetic strength over years of exposure to heat, vibrations, and chemical coolants.

• Custom Engineering Capabilities: The supplier must be capable of providing detailed 3D CAD models to verify fitment with existing CNC machinery before fabrication begins.

• Sealing Integrity: The welded seams of the conveyor frame must be completely liquid-tight to prevent coolant from leaking into the dry internal drive chambers.

By focusing on these structural and operational details, industrial plants can secure a scrap management system that provides consistent performance, reduces manual labor requirements, and maintains a clean, productive shop floor.

Frequently Asked Questions

Q1: What materials are suitable for a magnetic conveyor system?

A1: These systems are designed exclusively for handling ferrous metals, including carbon steels, alloy steels, cast iron, and ductile iron. Non-ferrous materials such as aluminum, brass, copper, and most grades of austenitic stainless steel (like 304 and 316) cannot be transported because they do not react to magnetic fields.

Q2: Can a magnetic conveyor handle a mix of ferrous and non-ferrous materials?

A2: No. If your machining process generates both steel and aluminum chips, a magnetic conveyor will only capture the steel. The aluminum chips will remain in the coolant tank or accumulate in the hopper, eventually causing blockages. For mixed-material applications, a hinge-belt or scraper-type conveyor is generally recommended.

Q3: How does the conveyor handle high-viscosity cutting oils compared to water-soluble coolants?

A3: High-viscosity cutting oils create stronger surface tension and hydrodynamic drag, which can make it harder for the magnets to pull fine chips out of the fluid. In these applications, the conveyor design must feature stronger rare-earth magnets and a slower chain speed to allow sufficient settling time for the metal particles.

Q4: What routine maintenance is required for a sealed magnetic conveyor?

A4: Because the drive mechanism is completely sealed inside the frame, maintenance is much lower than that of open-chain conveyors. Operators only need to periodically inspect the outer slider plate for wear, check the oil level in the gear reducer, monitor the chain tension via the external adjustment screws, and ensure the torque limiter is functioning correctly.

Q5: How does a magnetic conveyor prevent jamming from large, solid metal parts?

A5: Systems are equipped with mechanical torque limiters or electronic overload sensors. If a large piece of bar stock or a heavy scrap part jams the conveyor, the drive system automatically slips or cuts power to the motor, preventing mechanical failure and allowing the operator to clear the jam.

Procurement and Engineering Inquiries

Selecting the correct scrap management configuration requires a detailed analysis of your machining processes, chip volumes, and coolant flow rates. The engineering team at QUNHUI is ready to assist you in designing a robust, custom-tailored conveyor system that integrates smoothly with your CNC machinery. Contact us to submit your technical specifications, structural drawings, or operational requirements, and our application engineers will provide a comprehensive proposal to support your automated manufacturing goals.
