For engineering professionals and procurement specialists specifying cable management systems for automated production lines, CNC machining centers, and material handling equipment, the selection of an appropriate cable carrier directly impacts operational uptime, maintenance frequency, and total lifecycle costs. While polymer-based drag chains serve adequately in many light-duty applications, a growing number of industrial environments demand the superior mechanical strength, thermal stability, and corrosion resistance that only a stainless steel drag chain can provide. This analysis moves beyond basic feature lists to examine the metallurgical principles, application engineering criteria, and economic considerations that define successful deployment of stainless steel cable carriers in demanding operational contexts.

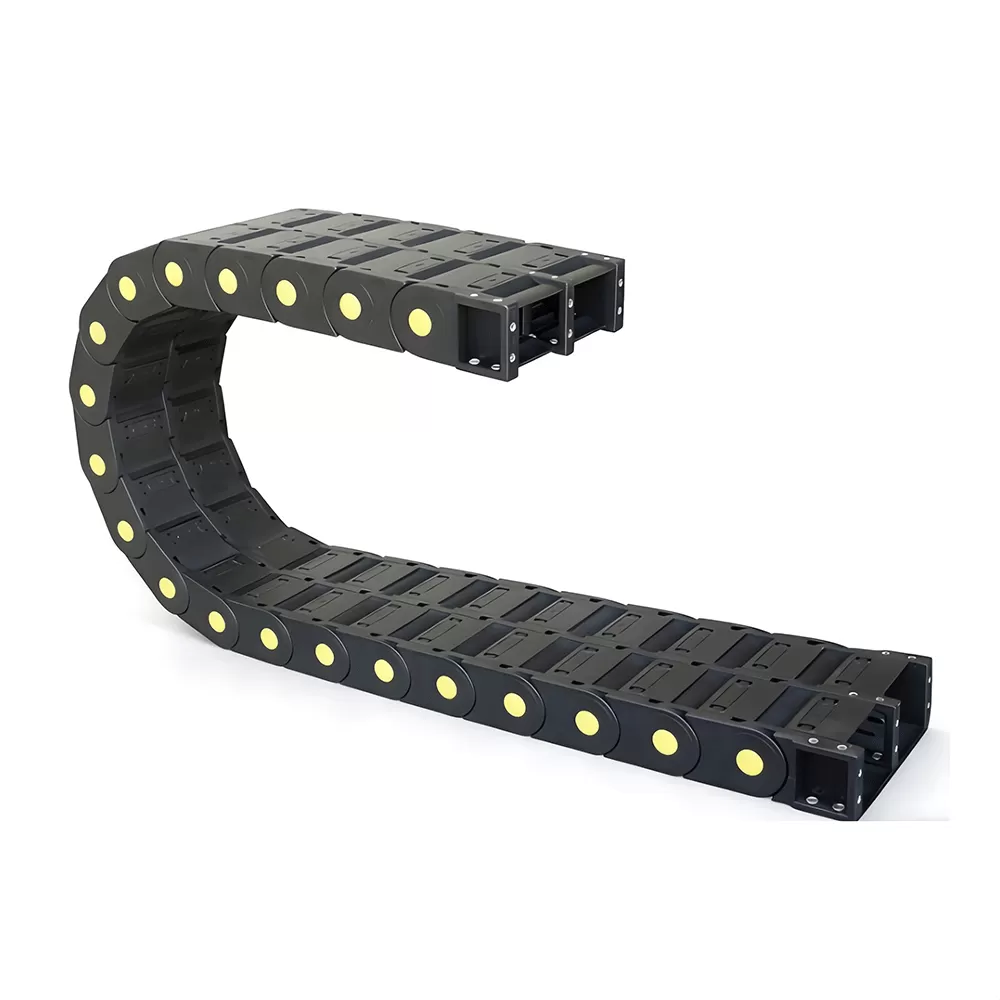

.webp?t=1787023060618 "stainless steel drag chain")
Metallurgical Basis and Material Grade Selection for Stainless Steel Cable
Carriers
The performance of a cable carrier in dynamic service is fundamentally determined by the interplay between link geometry, hinge pin design, and the base material's mechanical properties. Austenitic stainless steel grades—predominantly AISI 304 and 316—offer a combination of tensile strength, work-hardening resistance, and passive surface oxide layers that maintain structural integrity under conditions that rapidly degrade galvanized steel or engineering plastics. The stainless steel drag chain manufactured through precision stamping or laser-welded fabrication achieves consistent radius tolerances and low internal friction across the entire operating temperature range.
From a tribological perspective, the sliding surfaces between adjacent links benefit from the work-hardening characteristic inherent to austenitic stainless steels. Under cyclic loading, the surface layer undergoes localized strain hardening, which decreases the coefficient of friction and reduces generation of metallic wear debris. This phenomenon proves particularly valuable in clean-room or food-grade applications where particulate contamination must be strictly controlled. Additionally, the corrosion resistance of the passive film—enhanced by molybdenum content in 316 grades—ensures that the chain's structural cross-section remains unaffected by exposure to coolants, cutting oils, or alkaline cleaning agents commonly encountered in CNC machining cells.
Grade Comparison: 304 versus 316 Stainless Steel
AISI 304 stainless steel provides excellent general corrosion resistance and mechanical strength for most industrial environments, offering a cost-effective solution for applications without aggressive chemical exposure or chloride-rich conditions.
AISI 316 stainless steel, containing 2–3% molybdenum, delivers superior resistance to pitting and crevice corrosion, making it the preferred choice for marine environments, chemical processing facilities, and applications involving frequent wash-down with chlorinated cleaners.
The selection between grades should be based on a thorough analysis of the specific environmental stressors present in the installation, rather than a blanket preference for the higher-spec material.
Application Environments That Mandate Stainless Steel Drag Chains
Identifying the specific operational contexts where a stainless steel cable carrier becomes the technically correct choice is essential for system designers and facility engineers. These environments share common characteristics that challenge alternative materials to the point of premature failure.
High-Temperature Zones Adjacent to Heat-Treatment Equipment
In forge shops, glass tempering lines, and ceramic kiln transfer stations, ambient temperatures frequently reach 250°C to 400°C. Polymer drag chains—even those formulated with high-temperature stabilizers—exhibit creep, dimensional instability, and embrittlement under such conditions. A stainless steel drag chain maintains its geometric profile and hinge clearance up to 500°C (with appropriate pin lubrication), ensuring cables remain properly supported and guided without excessive sagging or pinch points. The thermal expansion coefficient of stainless steel approximates that of the structural steel frames used in these machines, minimizing differential expansion stresses at mounting brackets.
Aggressive Chemical and Wash-Down Environments
Industrial washing stations, pickling lines, and pharmaceutical processing equipment subject cable carriers to daily exposure to acids, chlorides, and caustic solutions. The crevice corrosion resistance and pitting potential of 316L stainless steel make it the preferred material for these applications. Unlike coated or plated carbon steel chains, where localized coating damage initiates rapid corrosion under the protective layer, the homogeneous composition of a stainless steel drag chain provides uniform resistance across cut edges, punched holes, and welded joints. This characteristic proves directly relevant to facilities performing frequent high-pressure wash-downs with detergent solutions containing sodium hypochlorite or quaternary ammonium compounds.
Heavy Particle Impact and Abrasive Dust Environments
Foundry casting cleaning lines, mining conveyor transfer points, and shot-blasting chambers generate airborne metallic grit and abrasive dust. These particulates can penetrate between moving links of conventional chains, acting as a lapping compound that accelerates hinge wear. The higher hardness and yield strength of cold-worked stainless steel link plates resist abrasive penetration, maintaining hinge clearances within acceptable limits for longer periods. Advanced chain designs incorporate sealed pin joints or labyrinth gaps that further reduce particle ingress, extending maintenance intervals in these punishing environments.
Design Parameters and Selection Criteria for Drag Chain Systems
The engineering selection process for a cable carrier involves multiple interdependent variables that must be evaluated collectively rather than in isolation. A systematic approach ensures that the chosen stainless steel drag chain aligns with the mechanical, electrical, and spatial constraints of the installation.
Internal Clearance and Cable Bundle Configuration
Internal clearance dimensions constitute the primary starting point for selection. The cross-sectional area of the cable bundle—including allowance for bend radius of the thickest cable—must fit within the chain's interior height and width with a safety margin of at least 15% to accommodate slight variations in cable diameter and prevent excessive crowding. Crowding leads to increased friction between cables and the chain interior, translating into higher driving torque requirements and potential insulation damage over time. For multi-axis robotic applications or gantry systems with complex cable routings, the use of separator elements within the chain to physically segregate power cables from sensitive signal lines is strongly recommended to minimize electromagnetic interference and mechanical chafing.
Bending Radius Calculation and Cable Service Life
Bending radius calculation is another critical parameter that directly affects cable service life. The minimum bending radius of the chain must always exceed the minimum bending radius specified by the cable manufacturer—typically by a factor of 1.5 to 2 for dynamic applications. Stainless steel chains offer the advantage of maintaining a consistent bending radius across the entire operating temperature range, whereas polymer chains often exhibit radius variations due to thermal expansion and creep. This consistency reduces the cyclic strain amplitude experienced by the conductors and shielding layers within the cables, delaying the onset of fatigue failures.
Long-Span Travel and Weight Management
For long travel distances exceeding 50 meters, the chain weight and resulting tensile load on the drive system become significant considerations. The higher density of stainless steel compared to aluminum or engineered plastics means that the chain's self-weight contributes substantially to the total drag load. This factor is managed through the use of gliding shoes, support rollers, or gutter-mounted guide rails that distribute the weight and reduce the tensile load on the drive pinion. Manufacturers such as QUNHUI have developed optimized link profiles that reduce material content without compromising strength, achieving weight reductions of up to 18% compared to traditional solid-link designs while maintaining the same load rating.
Installation Best Practices and Common Errors
Proper installation of a stainless steel cable carrier involves attention to alignment, tensioning, and fixity that differs from that of plastic chains due to the higher stiffness and mass of the metal structure. The mounting brackets at both the fixed end and the moving end must be precisely aligned in both the horizontal and vertical planes to prevent twisting or off-axis loading of the chain links. Twisting introduces edge loading on the hinge pins, which accelerates wear and increases the risk of pin migration or link separation. For applications requiring side-mounted chains, the bracket design should incorporate provisions for vertical adjustment to compensate for any sag induced by the chain's own weight over the unsupported span.
When using a gliding or rolling support system, the coefficient of friction between the chain's bottom surface and the guide rail affects the driving force required. Stainless steel chains exhibit a higher friction coefficient against steel guides compared to plastic chains against aluminum or plastic guides. This difference can be mitigated by applying solid lubricant coatings to the sliding surfaces or by employing rollers mounted within the chain links that convert sliding friction to rolling friction. QUNHUI offers stainless steel chains with integrated roller bearings in each link for extremely long travel applications, effectively reducing the required drive power by more than 40%.
Installation Errors to Avoid
Improper bracket alignment causing torsional stress on chain links and accelerated hinge pin wear.
Insufficient support spacing for long unsupported spans, leading to excessive sag and potential cable entanglement.
Incorrect cable routing within the chain interior, resulting in overlapping cables that chafe and degrade prematurely.
Failure to account for thermal expansion in high-temperature applications, risking buckling or binding at extreme temperatures.
Over-tightening of mounting hardware that restricts necessary movement of the chain's fixed end.
Predictive Maintenance and Wear Monitoring Strategies
The service life of a cable carrier system is not infinite, even with stainless steel construction. Wear primarily occurs at the hinge pin and link bore interface, where reciprocating motion generates minute abrasive wear particles. As the clearance increases beyond the design tolerance, the chain's pitch length elongates, leading to increased sag, misalignment, and ultimately, failure of the guidance system. Implementing a predictive maintenance strategy involves periodic measurement of the chain's pitch length over a reference span—typically 10 to 20 links—and comparing the measurement against the original specification. A pitch elongation exceeding 3% signals the need for replacement, as continued operation beyond this point risks cable damage due to excessive bending radius variation and link separation.
Lubrication of the hinge pins presents a trade-off between wear reduction and contamination risk. For most industrial environments, applying a high-temperature, extreme-pressure grease to the hinge pins at intervals ranging from 500 to 2000 operating hours provides substantial reduction in wear rate. In food or pharmaceutical applications, food-grade lubricants meeting FDA regulations are available, though they typically require more frequent replenishment due to lower film strength. Some chains incorporate a central lubrication manifold that distributes lubricant simultaneously to all hinge pins, reducing maintenance labor and ensuring consistent coverage.
Condition Monitoring Integration
Modern manufacturing execution systems benefit from continuous monitoring of cable carrier status to anticipate failures and schedule maintenance during planned downtimes. Approaches include strain gauges attached to the chain's link plates to measure tensile force during operation, with deviations from the baseline force profile indicating increased friction, cable bundle expansion, or binding. Inductive proximity sensors arranged along the travel path detect position and speed variations, providing early warning of chain elongation or drive system degradation. The data collected from these sensors integrates with supervisory control platforms that track cumulative cycles, elapsed time, and temperature exposure, enabling maintenance teams to apply physics-of-failure models to predict remaining useful life with reasonable accuracy.
Total Cost of Ownership and ROI Analysis
When evaluating the economic justification for a stainless steel cable carrier, the initial material premium over polymer alternatives must be weighed against operational savings realized over the equipment's service life. A comprehensive lifecycle cost analysis should incorporate the following factors:
Reduced maintenance frequency due to superior wear resistance and corrosion protection.
Extended cable service life resulting from consistent bending radius and reduced mechanical stress.
Decreased unplanned downtime from cable carrier failures, particularly critical in high-throughput production lines.
Elimination of replacement costs for degraded polymer chains in high-temperature or chemically aggressive environments.
Lower labor costs for inspection, cleaning, and lubrication activities over the equipment's lifespan.
For continuous casting lines, automotive body welding cells, and other high-value production processes, an unplanned stoppage can cost tens of thousands of dollars per hour in lost production alone. In such contexts, the enhanced reliability of a stainless steel drag chain delivers a compelling return on investment that far outweighs its higher acquisition cost.

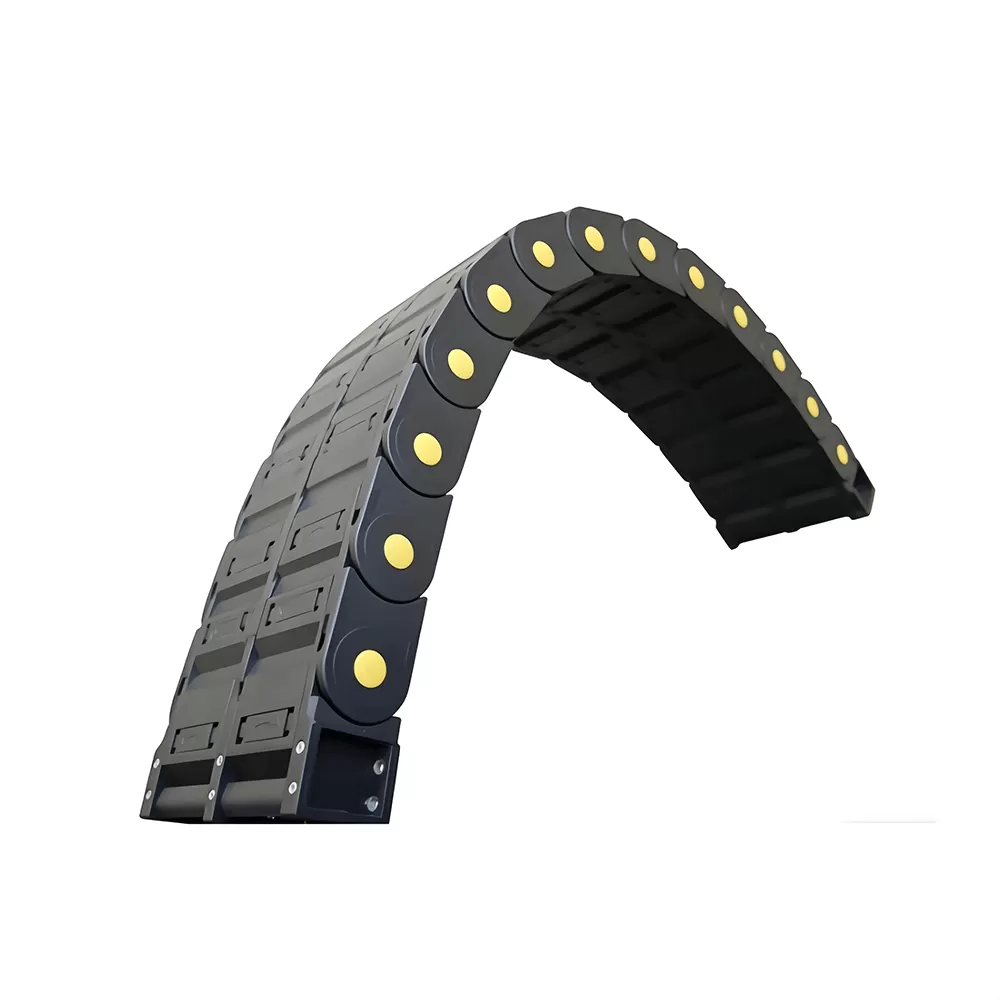

.webp?t=1787023060618 "stainless steel drag chain")
Systematic Comparison: Stainless Steel versus Polymer Drag Chains
Understanding the fundamental differences between stainless steel and polymer cable carriers enables informed selection decisions based on application requirements rather than default preferences.
Mechanical Performance Characteristics
Stainless steel chains typically exhibit tensile strength values of 500 MPa or higher, enabling support for heavier cable bundles and resistance to higher pull forces than polymer chains. The load capacity of a polymer chain is limited by creep and stress relaxation, which cause permanent deformation under sustained loads. The failure mode also differs—polymer chains often fail by brittle fracture or creep rupture, whereas stainless steel chains exhibit ductile failure with visible deformation providing warning signs before catastrophic failure. However, polymer chains offer distinct advantages in terms of weight reduction, noise attenuation, and electrical isolation, making them preferable for lighter-duty applications in controlled environments.
Environmental Suitability
The environmental operating window for polymer chains is substantially narrower than for stainless steel. Most engineering plastics maintain mechanical integrity only up to approximately 120°C, with specialized formulations extending to perhaps 200°C. Beyond this range, polymer chains experience softening, creep acceleration, and eventual decomposition. Similarly, chemical compatibility restricts polymer use in contact with many industrial solvents, acids, and oils. Stainless steel chains, by contrast, maintain structural integrity across a temperature range from cryogenic conditions to 500°C and resist attack from virtually all industrial chemicals when properly graded.
Technical Support and Application Engineering
The engineering team at QUNHUI provides detailed application engineering support to assist customers in selecting the appropriate chain configuration, including link design, pin material, lubrication method, and accessory requirements. This support extends to the review of cable bundle geometry, travel path constraints, and environmental factors, ensuring the final installation achieves the intended reliability and performance targets. For standard industrial environments, the 304 grade offers a balance of corrosion resistance and mechanical strength, while the 316 grade is specified for chloride-rich or acidic environments where enhanced corrosion resistance is necessary.
For high-speed or long-stroke applications exceeding 100 meters of travel, the use of a chain with integrated roller bearings and specialized guide rails becomes necessary to maintain acceptable drive power and reduce wear on the link plates. These configurations are typically custom-engineered based on the specific layout and operating parameters of the facility, with finite element analysis used to validate the design under expected loading conditions. The results of this analysis guide the selection of link thickness, pin diameter, and support spacing to achieve a fatigue life that matches or exceeds the design life of the production equipment.
Facilities that operate multiple shifts with high utilization rates benefit from the predictive maintenance capabilities that can be integrated with the chain system. By monitoring chain tension, vibration, and temperature, maintenance teams gain real-time visibility into the condition of the cable carrier, allowing them to schedule interventions during planned maintenance windows rather than reacting to unexpected failures. This proactive approach reduces the total cost of ownership and enhances overall equipment effectiveness.
For detailed specifications, application diagrams, and customized engineering support for stainless steel cable carrier systems, contact the QUNHUI application engineering department directly. Their technical experts provide guidance on chain selection, installation procedures, and lifecycle maintenance planning tailored to your specific operational conditions and performance requirements. Submit your project requirements today to receive a comprehensive proposal and engineering assessment for your cable management application.
Frequently Asked Questions About Stainless Steel Drag Chains
What is the maximum operating temperature for a stainless steel drag chain?
The maximum continuous operating temperature is contingent on the specific grade of stainless steel and the type of lubricant used. For AISI 304 and 316 chains with suitable solid or synthetic lubricants, continuous operation at 400°C is achievable. For short-term exposure, some chains have been validated at temperatures up to 500°C. Beyond this range, material creep and oxidation of the pin surfaces become significant, and alternative cooling measures or heat shielding should be considered. The thermal expansion of stainless steel at elevated temperatures must also be accounted for in the mounting system design to avoid buckling or binding.
Can stainless steel drag chains be used in saltwater or marine environments?
Grade 316L stainless steel, which contains 2–3% molybdenum, is specifically designed for resistance to chloride-induced pitting and crevice corrosion. This makes it suitable for marine environments, offshore platforms, and dockside equipment. Grade 304, while offering good general corrosion resistance, is more susceptible to pitting in the presence of saltwater and is generally not recommended for continuous marine exposure. When using 316L chains in saltwater, periodic washing with fresh water to remove salt deposits is beneficial to prevent the formation of differential aeration cells at crevices.
What are the primary differences between stainless steel drag chains and polymer chains in terms of load capacity?
Stainless steel chains typically exhibit tensile strength values of 500 MPa or higher, enabling them to support heavier cable bundles and withstand higher pull forces than polymer chains. The load capacity of a polymer chain is limited by creep and stress relaxation, which cause permanent deformation under sustained loads. The failure mode also differs—polymer chains often fail by brittle fracture or creep rupture, whereas stainless steel chains exhibit ductile failure with visible deformation providing warning signs. However, polymer chains have advantages in terms of weight, noise reduction, and electrical isolation, making them preferable for lighter-duty applications.
How do I calculate the correct chain length for a given travel distance?
The required chain length is calculated as half the travel distance plus the bending radius multiplied by pi (π) plus an additional allowance for mounting clearance. Specifically, for a travel distance L, the chain length on a horizontal application is (L / 2) + (π × R) + allowance, where R is the bending radius. The allowance typically ranges from 100 to 300 mm depending on the chain size and mounting configuration. For vertical applications, the calculation must also account for the weight-induced sag and may require a longer length to provide sufficient support. Consulting the chain manufacturer's application engineering team is recommended for complex installations.
What maintenance intervals are recommended for stainless steel drag chains in heavy-duty CNC applications?
For CNC machining centers operating on two-shift schedules, a visual inspection every 500 hours of operation is recommended to check for pin wear, link deformation, and cable condition. Lubrication intervals depend on the lubricant type and operating temperature, but a typical schedule involves re-lubrication every 1000 to 1500 hours. Pitch length measurement should be performed during the visual inspection, with documented records maintained to track wear progression. If the application involves coolant exposure, the chain should be thoroughly cleaned at each maintenance interval to remove residue that could cause localized corrosion or abrasive wear.
