Industrial Machine Tool Automation: Selecting the Right Chip Conveyor for Sale

In modern high-throughput machining operations, continuous material removal yields substantial volumes of metal turnings, swarf, and fine particulate sludge. Left unmanaged within the machine bed, this waste accumulation leads to thermal expansion issues on axis ball screws, premature tool wear, damaged surface finishes, and frequent unscheduled downtime. Automated chip handling systems form the core infrastructure needed to keep subtractive manufacturing cells operating at peak efficiency. Identifying an engineered industrial chip conveyor for sale that aligns precise physical layout dimensions with material behavior dynamics is imperative for production managers seeking sustained plant throughput.

Custom industrial equipment provider QUNHUI manufactures custom scrap management systems designed to integrate directly into multi-axis CNC turning centers, horizontal milling setups, and heavy gantry complexes. Effective swarf management requires analyzing raw material composition, fluid flow dynamics, drop height requirements, and mechanical loading limits. A mismatched waste system acts as a bottleneck, causing fluid overflow, belt binding, and high maintenance costs.

Mechanical Architectures of Chip Handling Systems

Selecting the correct extraction mechanism depends heavily on the geometry, mass, and wetness of the scrap generated during cutting operations. Machine tools produce widely divergent material geometries, ranging from long, stringy alloy steel turnings to powdery cast iron dust and abrasive brass granules.

Hinged Belt Conveyors

Hinged belt systems represent the standard workhorse design across automotive, aerospace, and general job-shop machining setups. Constructed from interlocking steel plates connected by hardened cross-pins, these belts move continuous loops along precision side chains. Raised cleats or cross-bars are welded at fixed intervals to lift material up inclines ranging from 30 to 60 degrees.

• Optimal Applications: Broad utility across medium-to-heavy chip loads, including bushy steel turnings, aluminum curly chips, stamping scrap, and brass drop-offs.

• Key Design Specifications: Chain pitch typically ranges from 31.75 mm for compact machine bases up to 63.5 mm or 101.6 mm for heavy-duty floor-standing systems. Integrated side-wings prevent stringy chips from slipping under the belt loop and binding the drive sprockets.

• Coolant Interaction: Perforated belt options allow liquid cutting fluids to drain directly through the belt into an under-slung coolant reservoir while solids travel upward toward the discharge chute.

Scraper and Drag Flight Conveyors

When machining operations create short chips, broken castings, or abrasive micro-fines, traditional hinged belts often allow small particles to pass through hinge joints, resulting in internal casing accumulation. Scraper or drag flight systems address this problem through a reverse-evacuation mechanism.

Instead of carrying material on top of a moving surface, a scraper system uses twin strands of side chain joined by transverse angle-iron flights. These flights drag along the bottom floor of a stationary steel trough, pushing accumulated swarf up an inclined ramp toward the outlet box.

• Optimal Applications: Cast iron dust, fine brass, short broken aluminum chips, small fasteners, and bronze turnings.

• Mechanical Safeguards: High-wear areas feature hardened manganese steel wear rails and replaceable bottom floor plates to withstand the continuous grinding action of iron fines.

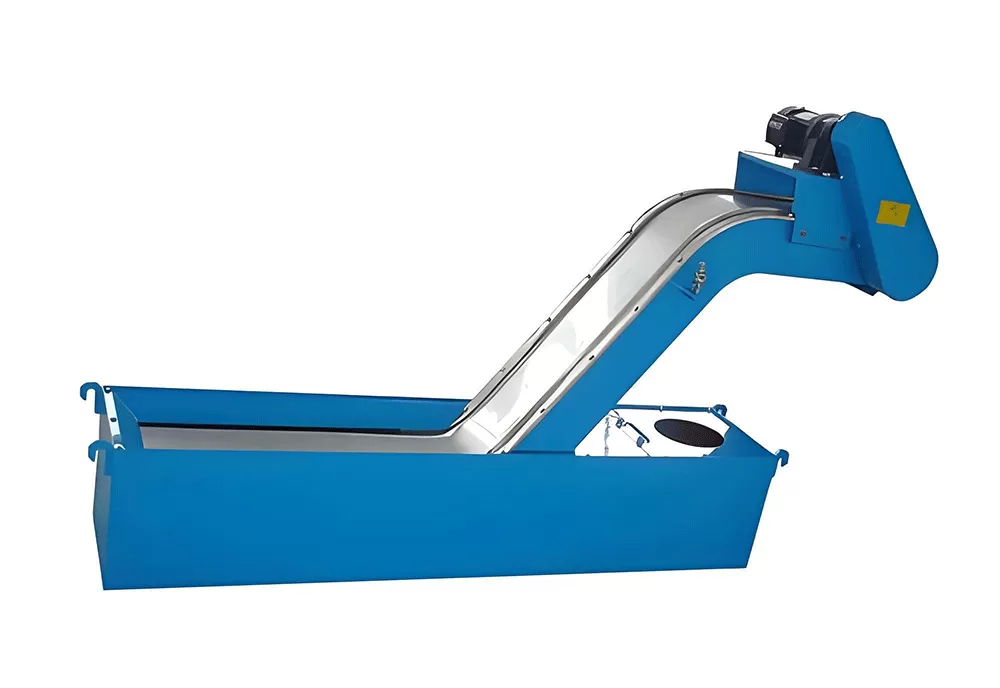

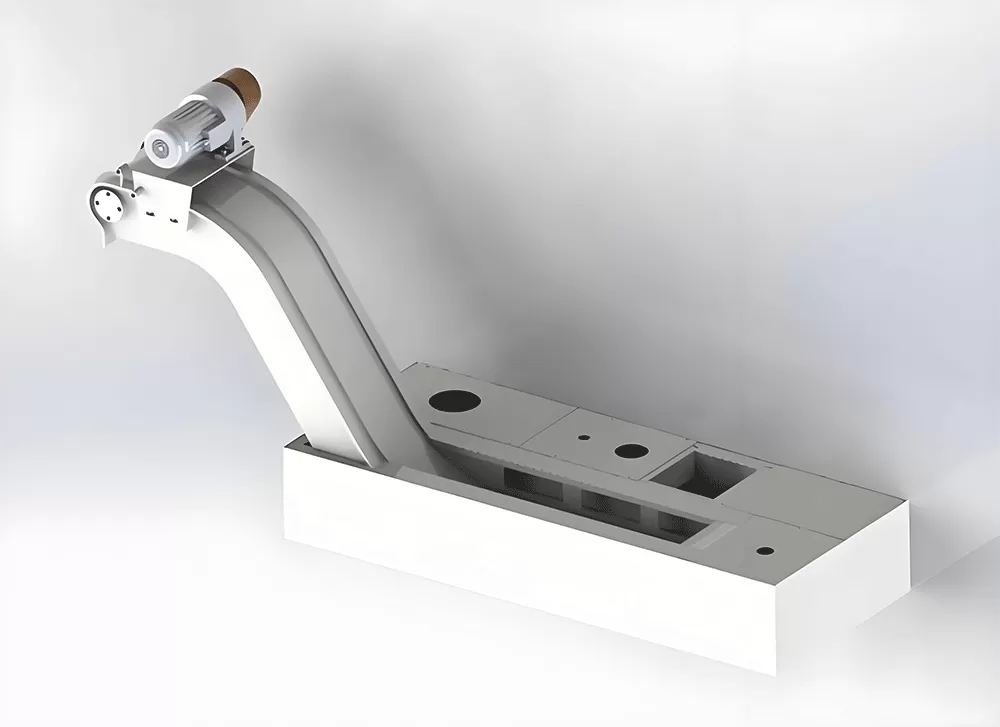

Magnetic Conveyors

For operations exclusively focused on ferrous metals, magnetic scrap systems eliminate external moving belts entirely. Powerful permanent neodymium or ceramic magnet packs are mounted on an internal drive chain running directly beneath a sealed, non-magnetic stainless steel top slider plate.

As ferrous chips fall onto the smooth stainless surface, the moving magnets underneath pull the chips along the slider face, dragging them up the incline. At the top of the discharge head, the internal magnet track recedes away from the outer sheet, allowing gravity to drop the dry chips into a collecting hopper.

• Optimal Applications: Small carbon steel chips, broaching swarf, thread-milling waste, and fine iron turnings produced under heavy liquid coolant flood.

• Operational Advantages: Because the mechanical chain and drive sprockets are completely enclosed in a sealed oil bath away from the chip stream, liquid penetration and mechanical jamming are virtually eliminated.

Auger and Screw Conveyors

Space limitations inside compact machine beds often preclude installing full-casing loop systems. Screw or auger conveyors utilize a helical steel flighting rotating within a round tube or semicircular trough to push material horizontally or at moderate inclines.

• Optimal Applications: OEM internal machine tool troughs, localized space-constrained chip pockets, and dry cast iron removal.

• Limitations: Long, stringy turnings tend to wrap around open center shafts, causing material balling and mechanical binding. They are best suited for short broken material or as feed units feeding into a main floor-level hinged conveyor.

Matching Material Geometries to System Selection

Evaluating a commercial chip conveyor for sale requires a detailed audit of swarf geometry and production volumes. Incorrect pairing leads to mechanical failure, fluid loss, and elevated shop-floor downtime.

• High cleat profile and overlapping side wings to prevent wrapping

• Bottom-drag design with hardened manganese wear paths

• Sealed stainless slider bed preventing mechanical jamming

• High liquid drainage capacity and large sump volume

Material Type	Chip Geometry	Recommended System	Key Selection Factor
Alloy Steel / Stainless	Long, bushy, stringy continuous turnings	Hinged Belt Conveyor
Cast Iron	Fine powder, granular dust, heavy sludge	Scraper / Drag Conveyor
Ferrous Carbon Steels	Small broken chips, drill turnings	Magnetic Conveyor
Aluminum Alloys	High-volume curly turnings with high fluid retention	Hinged Belt with Integrated Filtration

Engineering Criteria for Machine Tool Integration

Integrating continuous swarf extraction equipment into existing machine tool layouts demands precision in both spatial dimensions and mechanical interfaces. Installing an improperly sized chip conveyor for sale risks floor-space interference, coolant leakage, and poor discharge alignment.

Discharge Height and Floor Footprint

Discharge height must align with standard shop-floor collection hoppers or centralized overhead collection ducting. Standard tipping hoppers require clearance heights ranging from 800 mm to 1200 mm from the floor level. Higher discharge heights create longer inclined legs, expanding the overall physical footprint of the unit.

The incline angle directly affects footprint length. Standard inclines are set at 30, 45, or 60 degrees. While a 60-degree incline saves floor space, it increases the risk of round or slippery chips rolling back down the belt face. In such setups, higher cleats or textured belt profiles are required to maintain positive material lift.

Coolant Tank Integration and Filtration

Chips carry substantial volumes of liquid coolant out of the working envelope. Unfiltered coolant returned to the high-pressure delivery pumps causes premature pump wear, clogged tool nozzles, and poor workpiece surface finishes.

Modern extraction units incorporate multi-stage fluid handling features directly beneath the inclined section:

• Settling Tanks: Extended residence zones that allow heavy micro-fines to sink to the tank bottom before the fluid flows over a weir into the clean pump chamber.

• Filter Drums: Rotating mesh drums integrated inside the conveyor housing clean the returning liquid down to 100-200 microns without requiring consumable paper media.

• Cyclonic Separators: Secondary centrifugal filtration modules that remove micro-particles down to 10-20 microns, safeguarding high-pressure through-spindle coolant systems.

Drive Systems and Overload Protection Mechanisms

Heavy chip loads, rogue drop-offs, or stray hand tools dropped into the trough can stall moving mechanical assemblies. Without protection, a jammed motor will strip sprocket teeth, snap chain links, or burn out electrical windings.

QUNHUI equips custom extraction setups with layered drive protection architectures. Mechanical shear pins provide physical break-away protection against catastrophic dead-stops. Electronic current-sensing relays monitor real-time motor load profiles, immediately reversing the drive motor for several cycles to clear mild jams before tripping a system alarm and safely pausing the CNC cycle.

Evaluating Total Cost of Ownership

Procurement teams often evaluate initial capital costs in isolation, overlooking long-term operating costs. Selecting a budget scrap handling option can incur continuous expense through maintenance calls, fluid drag-out waste, and lost production hours.

Operating a high-durability unit delivers quantifiable return on investment across three key areas:

First, automated continuous chip removal eliminates manual bed clean-outs, turning non-productive operator downtime into active spindle time. Second, efficient fluid separation minimizes coolant drag-out loss. Metal turnings carrying liquid out of the plant in scrap bins waste expensive cutting concentrates. Built-in fluid recovery systems reduce raw fluid top-up purchases by up to 25 percent annually.

Third, proper mechanical component selection reduces replacement frequency. Utilizing hardened alloy chain tracks, heavy-gauge structural sheet metal, and sealed bearing housings extends equipment service life under continuous multi-shift operations.

When reviewing a commercial chip conveyor for sale, plant engineers should inspect build quality details such as side-plate sheet thickness, drive chain tensile strength ratings, brand-name gear motor reliability, and accessible grease port locations.



Custom Manufacturing and Retrofit Considerations

Standard off-the-shelf units rarely fit seamlessly into specialized machining cells, legacy equipment footprints, or multi-axis transfer machines. Custom dimensional tailored builds ensure proper clearance beneath chip discharge ports while maintaining ergonomic operator access around the machine envelope.

QUNHUI offers end-to-end engineering assistance, evaluating existing machine bed footprints, coolant pump electrical specifications, and floor layout constraints. Custom modifications include multi-stage incline angles, custom tank fluid capacities, integrated oil skimmers, dual-drive motors for ultra-heavy duty scrap loads, and custom painted protective finishes matched to plant standards.

Engineers evaluating options for a chip conveyor for sale should review operational parameters including peak hourly chip volume, material grade, machine tank access width, and desired discharge elevation before finalizing hardware selection.

Frequently Asked Questions

Q1: How do I select between a hinged belt conveyor and a scraper conveyor for mixed machining materials?
A1: The selection depends on the predominant chip size. If the work involves stringy, bushy turnings alongside short chips, a hinged belt with textured cleats and side wings is ideal. However, if the operation primarily generates fine cast iron, brass, or broken chip material, a scraper conveyor provides better bottom-trough sweeping action, preventing small particles from accumulating under the belt tracks.

Q2: What mechanism prevents motor burnout when a large metal drop-off jams the conveyor belt?
A2: Quality industrial units utilize a combination of mechanical and electrical safeguards. Mechanical torque limiters or shear pins disengage the drive shaft during sudden mechanical stops. Concurrently, electronic load monitoring relays detect current spikes, temporarily reversing the drive motor to clear the jam automatically or shutting off power to protect system components.

Q3: Can a chip conveyor system help reduce coolant consumption in large workshops?
A3: Yes. Efficient chip handling systems include built-in liquid recovery zones, perforated belt plates, angled drain pans, and integrated settling tanks. These features allow cutting fluid to drain back into the primary machine reservoir before the chips are dumped into the scrap bin, minimizing expensive fluid carry-away loss.

Q4: What routine maintenance is required to maintain reliable continuous operation?
A4: Regular maintenance includes checking and adjusting drive chain tension, lubricating external bearings and drive sprockets, inspecting belt cleats for physical damage, and periodically clearing fine sludge settlement from the bottom fluid tank. Inspecting shear pins and checking motor current draw also helps prevent unexpected line stoppages.

Q5: What technical details are required to receive an accurate custom quote for a replacement conveyor?
A5: You need to provide the target machine tool model, material type, peak chip volume per hour, coolant flow rate, available under-machine cavity dimensions, required discharge height, and desired drive motor voltage specifications.

Request a Customized Swarf Management Solution

Matching your precise machining conditions with an engineered swarf management system prevents costly production bottlenecks, reduces operator intervention, and preserves valuable cutting fluids. The technical team at QUNHUI assists manufacturing facilities worldwide in designing, building, and retrofitting custom extraction setups built for demanding industrial environments.

Submit your machine specifications, material types, and floor layout drawings to receive a custom engineering evaluation and a detailed proposal for a high-durability chip conveyor for sale designed specifically for your manufacturing floor.
