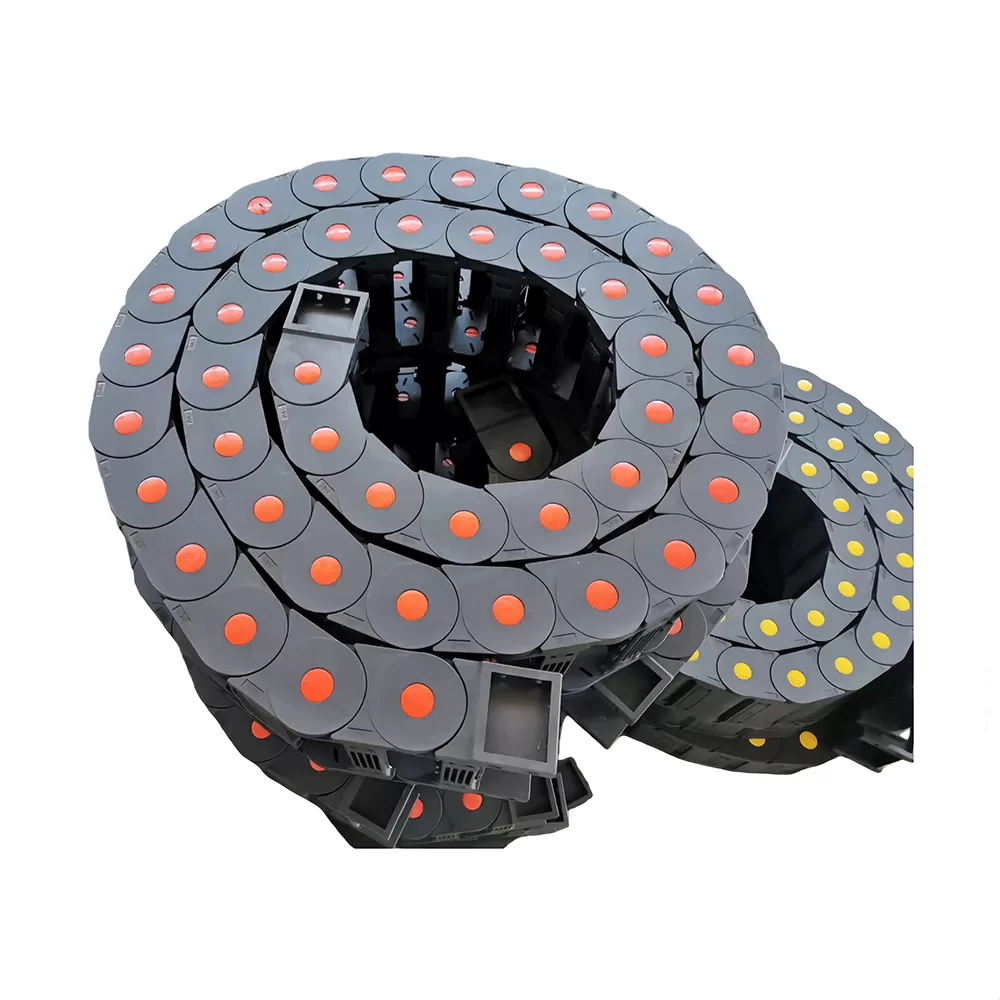

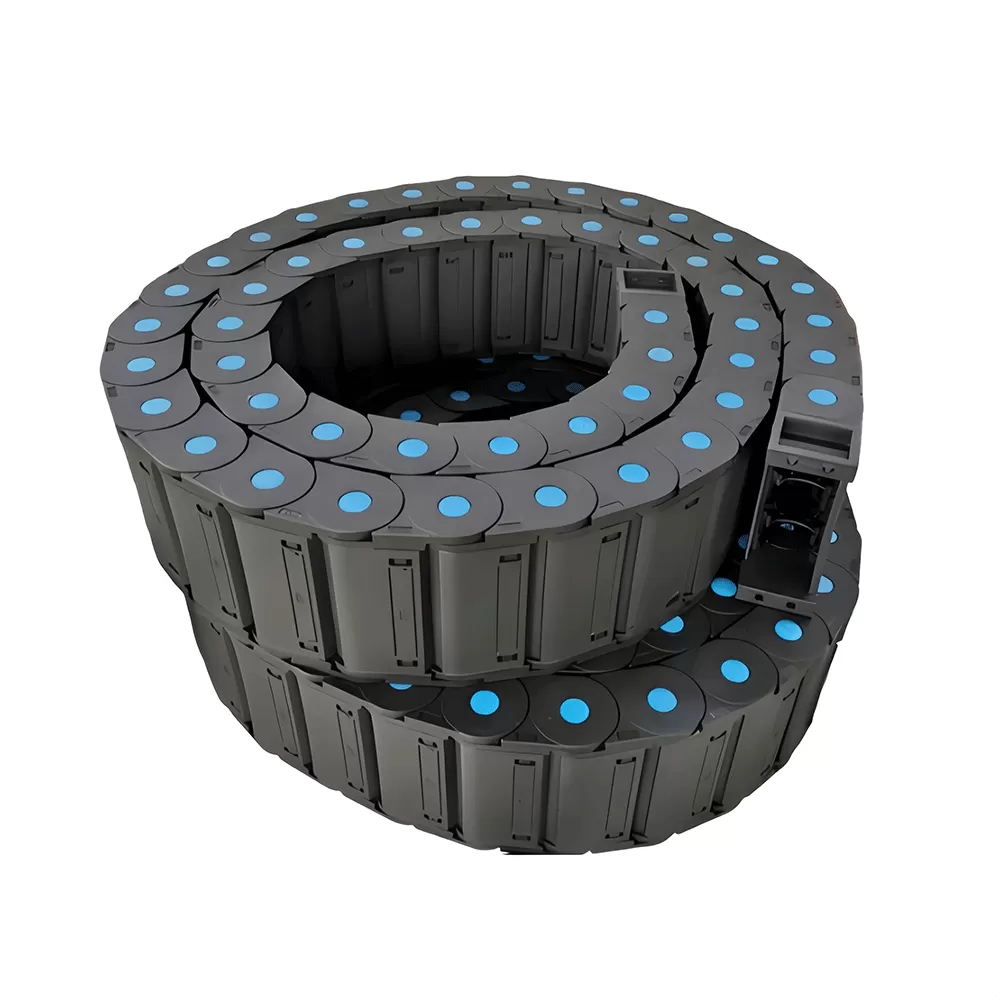

Industrial Plastic Cable Drag Chain Solutions for CNC & Automation Systems

Automated manufacturing systems require precise cable management to transfer power, pneumatic pressure, hydraulic fluids, and data without signal interruption or physical wear. In high-cycle automated tooling, multi-axis gantries, and industrial machining centers, continuous linear and rotary travel subjects flexible conduits to accelerated mechanical fatigue. Installing a high-grade plastic cable drag chain provides controlled bending, protects sensitive conductors from mechanical strain, and isolates wiring harnesses from abrasive factory environments.

Specifying the proper drag chain demands an understanding of polymer chemistry, dynamic load factors, acceleration kinematics, and internal channel partitioning. Mechanical engineers must evaluate operational velocity, unsupported travel lengths, ambient chemical exposures, and the minimum allowable bend radii of enclosed lines to achieve maximum mean time between failures (MTBF).

Polymer Material Science: Reinforced Polyamide Formulations

The structural longevity of dynamic cable track rests upon polymer composition. Standard unfilled plastics degrade rapidly under continuous cyclic flexure and high frictional contact. Industrial-grade carriers use modified Polyamide 66 (PA66) compounded with varying ratios of short or long glass fiber reinforcement, typically ranging between 15% and 35% by weight.

Glass-fiber reinforcement increases the flexural modulus and tensile strength of the chain links, preventing pin-and-bore distortion under high dynamic loads. Unreinforced PA66 provides basic flexibility but lacks the dimensional stability required for high unsupported lengths. Conversely, over-reinforcement increases link brittleness, leading to fatigue fractures at the hinge pins during high-acceleration travel. Manufacturers like QUNHUI fine-tune this material matrix to balance mechanical stiffness with impact absorption.

Operational conditions also dictate specific additive packages:

• Tribological Modifiers: Solid lubricants such as polytetrafluoroethylene (PTFE) or molybdenum disulfide (MoS2) are integrated directly into the polymer chain matrix to reduce pin friction, lower operating acoustics, and minimize dust shedding.

• Thermal Stabilizers: Heat-stabilized grades resist thermal degradation during extended duty cycles in ambient temperatures ranging from -40°C to +130°C.

• Conductive Additives: Carbon black or inherently dissipative polymers reduce surface resistivity to between 10⁴ and 10⁹ ohms, satisfying ATEX and ESD cleanroom standards by preventing electrostatic charge accumulation.

• Hydrolytic and Chemical Resistance: Formulations resist continuous saturation by synthetic metalworking coolants, cutting oils, hydraulic fluids, and standard industrial solvents.

Kinematics and Load Calculations for Unsupported Travel

A central design calculation in linear motion systems is determining whether the carrier will operate in an unsupported condition or require intermediate support rollers and guide troughs. The unsupported length directly dictates the permissible system acceleration, velocity, and dynamic fill weight.

Unsupported travel occurs in two operational modes: straight upper run ($F_L$) and sagging upper run ($F_B$). Maintaining a straight upper run ensures the lowest friction, minimal vibration, and longest operating life.

Formula for Total Fill Load and Carrier Selection

To determine the mechanical feasibility of a plastic cable drag chain configuration, design engineers calculate the total dynamic weight per meter:

q_total = q_k + q_z

Where q_k represents the weight of the carrier itself (kg/m), and q_z represents the cumulative weight of all dynamic cables, hoses, and media lines housed within the cross-section (kg/m).

The required travel distance determines the minimum operational length of the chain. For a center-mounted fixed end, the required chain length ($L_k$) is calculated using:

L_k = (S / 2) + K

Where S equals total stroke length, and K is a geometric constant derived from the selected bending radius ($R$) and link pitch ($P$):

K = (π × R) + (2 × P)

If the calculated stroke ($S$) causes the carrier to exceed its rated unsupported limit under load q_total, the upper run will sag, contact the lower run, and introduce abrasive friction. When strokes exceed 6 to 8 meters, the system transitions into a gliding configuration requiring specialized guide troughs, low-friction side glides, and reduced travel speeds.

Internal Partitioning and Cable Dynamics

Premature failure in automated energy supply systems rarely stems from the carrier breaking directly; rather, it occurs when internal cables experience jacket abrasion, corkscrewing, or core shearing. Proper internal partitioning prevents lines from tangling, twisting, or resting against one another under tension.

The Clearance Factor

All conductors and pneumatic hoses require adequate clearance within their allocated compartments to allow free movement along their neutral axis during continuous bending. As a rule:

• Round electrical cables require at least 10% to 15% of their outer diameter as free radial clearance within the partition cell.

• Pneumatic and hydraulic hoses require 20% clearance to account for volumetric expansion and contraction under operational pressure spikes.

Weight Distribution and Separation Rules

Distribute the internal mass symmetrically across the width of the carrier. Heavy cables and hydraulic lines should be mounted near the outer edges, closest to the chain side links, while lighter control and signal wiring should occupy the center. This arrangement reduces torsional deformation and prevents lateral tilting of the chain during high-speed directional changes.

Horizontal shelves and vertical separators must isolate lines of significantly different diameters. Laying a heavy cable directly on top of a thinner conductor causes premature fatigue and insulation breakdown due to uneven compression forces during link articulation.

Structural Configurations: Enclosed versus Open Cross-Sections

Operating conditions determine the physical profile of the cross-bars and side plates. Dynamic chains are broadly classified into open bridge architectures and fully enclosed structural configurations.

Open Bridge Carriers

Open designs feature removable cross-bars on the inner and outer radii. This construction delivers structural benefits:

• Rapid visual inspection of internal conduits without disassembling the carrier structure.

• Efficient convective heat dissipation for high-amperage power lines.

• Significant reduction in total chain mass, lowering the dynamic inertia on drive motors during high-acceleration travel ($>50\text{ m/s}^2$).

Enclosed Duct Carriers

Enclosed designs incorporate overlapping polymer lids that seal the internal cavity from external debris. In heavy CNC milling, woodworking, and plasma cutting, sharp swarf, hot metal chips, abrasive particulate, and direct coolant sprays will abrade exposed cable jackets. An enclosed plastic cable drag chain forms an impenetrable physical barrier against foreign object ingress, preventing premature jacket wear and line contamination.

Brands like QUNHUI manufacture modular enclosed models featuring snap-open lids along both the inner and outer bend radii, allowing maintenance personnel to replace worn lines without unmounting the entire drag chain assembly from the machine base.

High-Speed and Gliding Long-Travel Engineering

When continuous linear travel extends past 10 meters, unsupported operation becomes mechanically unfeasible. The upper run must lower down and glide directly on top of the lower run inside a dedicated guide trough.

Long-travel gliding setups introduce distinct tribological and mechanical dynamics:

• Guide Troughs: Troughs maintain true linear alignment, preventing the chain from snaking sideways under high thrust loads. Trough walls should incorporate low-friction polymer glide strips to reduce lateral resistance.

• Gliding Shoes and Skids: High-molecular-weight polymer skids are affixed to the chain links. These skids serve as sacrificial wear surfaces, isolating the structural side-plates from direct friction.

• Reverse Bending Radii (RBR): Specialized machines with opposing motion profiles or multi-axis articulating heads may require carriers with reverse bending capabilities to navigate compact, complex enclosures.

The table below summarizes core mechanical differences between standard operational modes:

Comprehensive Maintenance and Assembly Protocols

Ensuring that a carrier achieves its designed operational lifecycle requires adherence to precise assembly practices:

• Cable Laying Without Torsion: Unspool cables directly from their delivery reels by rolling the spool along the floor. Never pull conductors over the spool flange, as this induces permanent spiral torsion that causes the line to spiral inside the carrier during operation.

• Strain Relief Placement: Fix dynamic lines securely at both the moving end and fixed end using comb-style strain relief clamps or pneumatic line tie-downs. The clamp must grip the outer jacket firmly without crushing the inner insulation or deforming internal conductor geometry.

• Pin and Bore Alignment: Ensure that all hinge pins are fully seated and snapped into place. Misaligned pins lead to uneven load sharing across side plates, resulting in fatigue cracks at the link joints under dynamic acceleration.

Frequently Asked Questions

What determines the correct bend radius for dynamic lines?

The minimum bend radius is governed by the thickest or stiffest cable housed inside the carrier. High-flex electrical cables typically specify a dynamic bend radius of $7.5\times$ to $10\times$ their outer diameter, while dynamic pneumatic or hydraulic lines may require $10\times$ to $15\times$ their diameter. Always size the carrier bend radius to accommodate the single largest requirement among all enclosed lines.

How does ambient temperature affect standard PA66 carriers?

Low temperatures cause standard Polyamide 66 to lose impact resistance, increasing the potential for brittle fracture at hinge pins during high acceleration. High ambient temperatures decrease the flexural modulus, causing the carrier to sag earlier in its stroke. For extreme environments, specialized low-temperature impact modifiers or heat-stabilized compounds must be selected.

Why do cables experience the 'corkscrew effect' inside a drag chain?

Corkscrewing occurs when cables are installed with residual torsional twist, when there is insufficient radial clearance within internal compartments, or when conductors of vastly different diameters are not segregated with dividers. The conductor twists along its axis until the inner cores permanently deform and rupture the outer jacket.

When should an engineer specify steel carriers over plastic alternatives?

Steel cable carriers are reserved for extreme heavy-duty environments, such as steel mills, foundries, or offshore drilling platforms, where payloads exceed hundreds of kilograms per meter or where ambient temperatures exceed 200°C. For general automation, high-speed pick-and-place, and standard CNC machining, an engineering-grade plastic cable drag chain offers superior cycle life, lighter dynamic mass, quieter performance, and zero corrosion concerns.

Can broken links in a modular carrier be individually replaced?

Modular carriers allow single-link replacement. Using a flat-blade tool, the retaining pins can be disengaged to insert a new link segment without discarding the entire assembly or replacing undamaged cables.

What is the role of strain relief at the mounting brackets?

Strain relief isolates the moving section of the cable from the fixed termination points. It ensures that tensile forces generated during linear articulation are absorbed by the cable's structural jacket at the bracket rather than transferred to internal electrical connections or terminal blocks.

Custom Specifications and Engineering Consultation

Achieving dependable cable protection across millions of continuous flex cycles requires matching material compositions, link geometries, and internal cell layouts to specific kinematic parameters. QUNHUI engineers dynamic plastic cable drag chain solutions tailored to custom CNC machinery, automated warehouse shuttles, gantry robotics, and industrial production lines.

Submit your machine blueprints, travel lengths, line payloads, and environmental parameters to our engineering team today to receive a detailed dynamic load analysis, 2D/3D CAD models, and a competitive quotation for your manufacturing project.
