SS Drag Chain vs Plastic: 2026 CNC Cable Carrier Comparison

Modern CNC machining centers run faster and cut deeper than ever before. Spindles rotate at tens of thousands of revolutions per minute, tossing off red-hot metal swarf and pressurized chemical coolants around the clock.

Inside these harsh machining envelopes, your cables and hydraulic hoses must move back and forth millions of times without snagging, kinking, or melting. A single severed power line or hydraulic rupture can halt a five-axis machine for days.

Engineering teams frequently face a tough decision: should you equip your machinery with a conventional engineering plastic carrier, or invest in a heavy-duty ss drag chain? At QUNHUI, we manufacture complete machine protection and chip evacuation systems, helping industrial engineers select the ideal cable management hardware for their exact mechanical loads.

This technical guide compares stainless steel and polymer cable carriers across thermal thresholds, unsupported lengths, chemical exposures, and total cost of ownership (TCO) for 2026 and beyond.

Quick Comparison: Stainless Steel vs. Engineering Plastic Carriers

Use the side-by-side engineering matrix below to evaluate how an ss drag chain stacks up against reinforced plastic carriers under demanding factory conditions.

Deep Dive: The Engineering Case for an SS Drag Chain

A stainless steel cable carrier serves as an armored shield for internal supply lines. Industrial machinery often subjects moving lines to physical hazards that synthetic compounds cannot endure.

When high-feed milling cuts into tough alloys like titanium, Inconel, or hardened tool steel, the resulting chips exit the shear zone at extreme temperatures. These glowing chips hit the track body with substantial kinetic force. An ss drag chain prevents these fragments from puncturing the protective envelope and slicing into expensive feedback cables.

Beyond heat, heavy-duty CNC machining demands thick, steel-braided hydraulic hoses that deliver high clamping pressures. These hoses add massive deadweight per linear meter. An engineering polymer carrier can buckle under such heavy loads across extended strokes, dragging along the machine bed and accelerating exterior wear.

A steel cable track for CNC setups delivers the structural rigidity needed to maintain long unsupported spans. The pin-and-stop architecture distributes tensile and torsional stress evenly across each link, preventing line sag and eliminating costly track derailments.

Standard heavy industrial applications for stainless steel drag chain assemblies include:

• Heavy-duty horizontal boring mills and large gantry machining centers.

• Foundry casting machinery, forging presses, and thermal processing cells.

• Laser, plasma, and waterjet cutting beds exposed to intense thermal back-scatter.

• Offshore machining setups, maritime cranes, and chemical-washdown facilities.

• Multi-axis mill-turn centers operating adjacent to high-volume chip conveyors.

Structural Configurations: Open Stay vs. Enclosed Metal Drag Chain

Stainless carriers are not one-size-fits-all hardware. Depending on the debris profile in your workspace, engineers can select specific link styles:

• Punched Aluminum Stays: Precision-drilled separator plates isolate each electrical cable and hydraulic conduit into individual circular ports. This stops internal friction and prevents line tangling.

• Milled Link Dividers: Segmented vertical and horizontal bars allow quick adjustments when running retrofit cable bundles of varying diameters.

• Enclosed Metal Drag Chain: Fully overlapping stainless steel covers create an impenetrable exterior shell. This keeps fine dust, abrasive particulate, and pressurized coolant bursts away from sensitive lines.

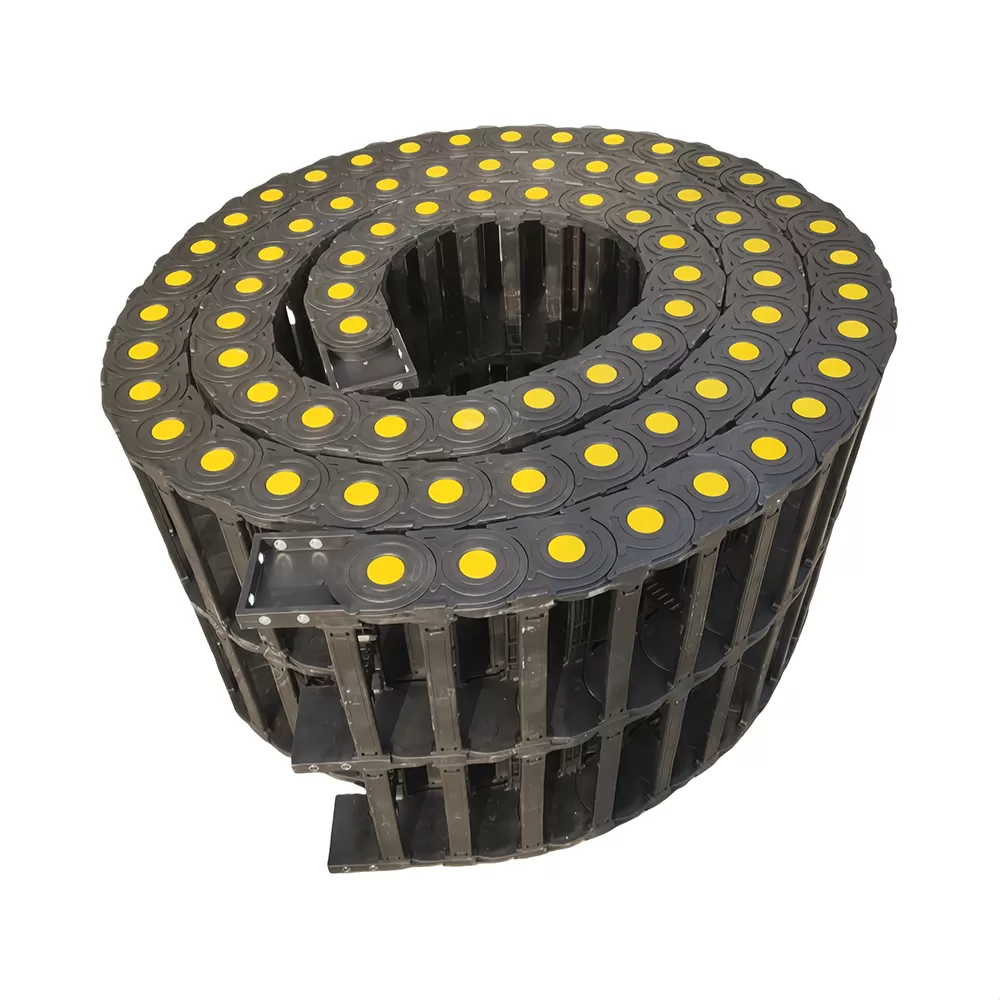

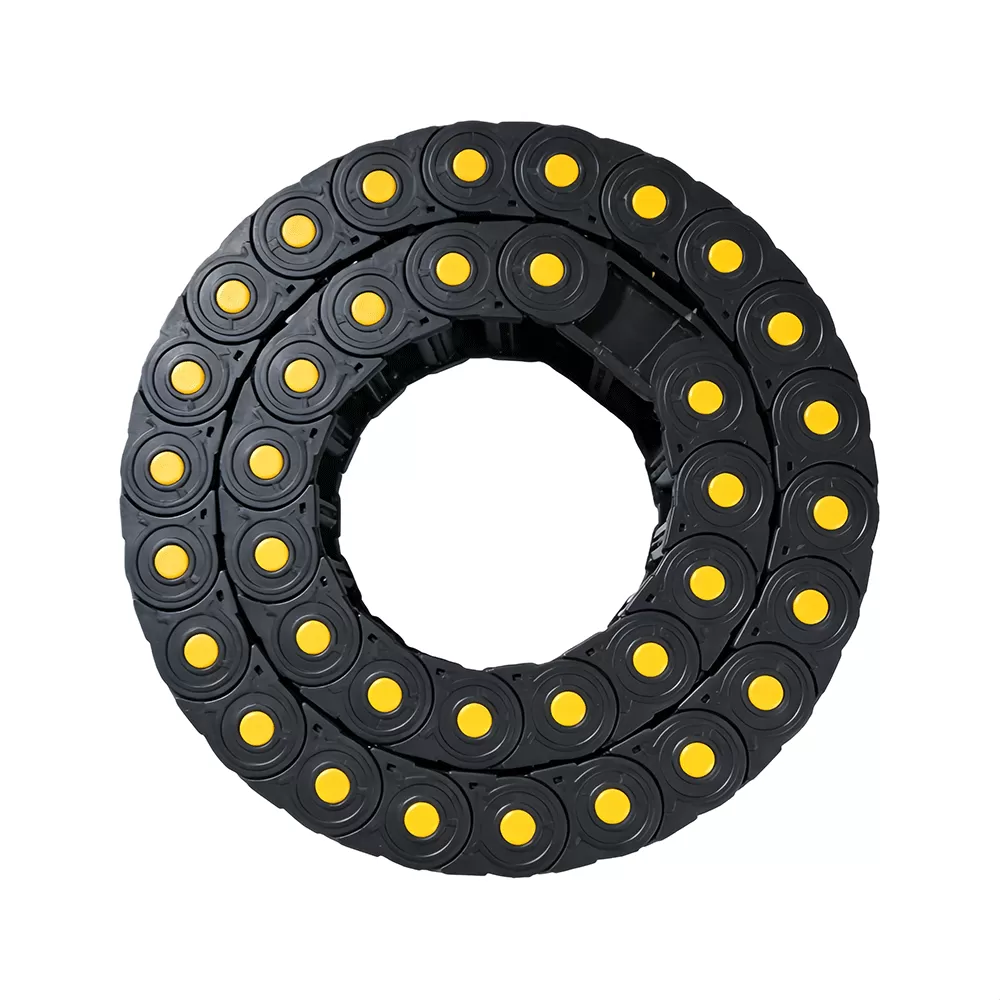

When Does a Plastic Cable Carrier Remain the Better Choice?

Despite the immense strength of an ss drag chain, polymer cable carriers continue to dominate specific industrial niches where weight and velocity take priority.

Engineered polyamide chains (like fiber-reinforced PA66) provide a lightweight structure that minimizes drive motor loads. On high-speed pick-and-place gantries, linear-motor-driven axes, and 3C electronics assembly platforms, low inertia is crucial for maintaining cycle times.

Polymer tracks do not require heavy structural supports on ultra-fast axes. They operate quietly, produce zero metal-on-metal friction dust, and resist basic washdowns in cleanroom or electronic manufacturing environments.

If your application features low mass payloads, high accelerations, dry operation, and zero exposure to red-hot flying chips, a quality plastic carrier delivers reliable performance at a lower initial price point.

2026 Engineering Selection Guide: 4 Steps to the Right Cable Carrier

To avoid premature track failure, equipment designers should follow this four-step selection process when drafting machine tool specifications:

Step 1: Audit the Thermal and Chemical Environment

Identify the maximum chip exit temperatures and coolant delivery rates. If dry cutting or high-pressure flood coolant routinely coats the motion axis, specify an ss drag chain in grade 304 or acid-resistant 316 stainless steel to stop rust and material fatigue.

Step 2: Calculate Internal Payload and Bend Radii

Add up the total weight of all power, encoder, air, and hydraulic lines per meter. Ensure that the carrier’s minimum bend radius (R) matches the largest cable's recommended bend radius—typically 8 to 12 times the cable's outer diameter. Provide at least 10% to 15% clearance around each cable inside the stay cavities to allow smooth movement.

Step 3: Analyze Dynamic Travel Parameters

Measure the total travel stroke, working velocity, and axis acceleration. If the travel length exceeds the unsupported limit of polymer options, switch to a steel cable track for CNC machinery to eliminate line sag, or integrate guide troughs for continuous travel support.

Step 4: Integrate Machine Accessories into a Single Ecosystem

A cable carrier does not operate in isolation. It must clear way cover guards, maintain clearance around telescopic sheet metal plates, and stay clear of moving chip flutes. Sourcing your carriers alongside your machine protection accessories ensures smooth mechanical clearance across all axes.

Why Industrial Machine Builders Partner with QUNHUI

For more than 15 years, QUNHUI has engineered and manufactured industrial protection and material management equipment for global CNC builders and automation plants. Our 10,000-square-meter modern manufacturing facility uses precision fiber laser cutters, heavy CNC press brakes, and robotic welding cells to deliver dependable industrial products.

All QUNHUI drag chain systems and protective components undergo strict quality checks under ISO 9001 and CE-certified frameworks. We build equipment designed to run continuously in heavy industrial environments.

Our comprehensive CNC accessory lineup gives machine builders a unified component ecosystem:

• Heavy-Duty Drag Chains: Custom-engineered stainless steel, carbon steel, and reinforced polymer carriers tailored to any stroke length or cable mix.

• Automatic Chip Conveyors: Hinged belt, scraper, and magnetic chip extraction units that clear cutting debris away from moving machine axes.

• Machine Bellows and Telescopic Covers: High-durability way covers that block coolants, grinding dust, and chips from linear guide rails.

• Metal Briquetting Presses: Hydraulic briquetting systems that compress loose aluminum, steel, and cast iron chips into dense briquettes for profitable scrap recycling.

We maintain comprehensive raw material inventories to support standard orders with fast dispatch, while our engineering department provides complete OEM and ODM design support for custom machinery projects.

Frequently Asked Questions (FAQ)

Q1: When should I choose a 316 stainless steel drag chain over a standard 304 model?
A1: Grade 304 stainless steel handles most CNC metal cutting setups, hot chips, and standard water-soluble coolants. Upgrade to grade 316 when your machinery operates in marine environments, chemical washdown facilities, or processes highly acidic cutting fluids that can cause pitting corrosion in standard steel.

Q2: How do engineers prevent long-stroke metal drag chains from sagging?
A2: For strokes that exceed the unsupported span rating of the carrier, engineers install dedicated guide channels. These channels support the upper run of the carrier as it glides over the lower run, ensuring smooth linear movement without lateral shifting or mechanical bind.

Q3: Can QUNHUI provide custom-drilled internal separators for mixed cable lines?
A3: Yes. QUNHUI precision-mills internal aluminum stays and divider plates to match your exact hydraulic hose and cable diameters. Custom partitioning prevents cables from rubbing against each other, extending the working life of your internal wiring.

Q4: How does a heavy-duty CNC drag chain handle vibration during high-speed cutting?
A4: Heavy-duty metal chains feature precision-machined pivot pins and tight link tolerances. This rigid link construction resists torsional twist and dampens harmonic vibrations caused by high-speed milling cutter engagement.

Q5: Can I retrofit an existing machine from a plastic carrier to an ss drag chain?
A5: Yes. Retrofitting is straightforward as long as your mounting brackets and axis clearances match the steel carrier's outer dimensions and bend radius. Switching to an ss drag chain solves repeated carrier breakage problems on machines running heavy chip-load operations.

Upgrade Your CNC Protection with QUNHUI

Selecting the right cable carrier protects your critical wiring, stops unscheduled machine shutdowns, and lowers overall maintenance costs over years of production. While plastic carriers handle light, high-speed jobs well, harsh machining conditions demand the unbeatable thermal and mechanical strength of a stainless steel carrier.

Whether you are designing a new multi-axis machine tool or upgrading high-wear factory equipment, QUNHUI provides the engineering expertise, fast turnaround, and certified manufacturing quality your production line demands.

Need custom cable carrier dimensions or advice on whole-machine chip protection? Submit your application details and axis drawings to the QUNHUI technical team today for a rapid quote and an engineered solution within 24 hours.
