In high-precision CNC turning, milling, and grinding operations, chip evacuation directly dictates operational efficiency. Machining operations generate continuous waste—ranging from long, stringy steel turnings to abrasive cast iron dust and non-ferrous aluminum swarf. When swarf builds up inside the machine enclosure, it traps heat, contaminates cutting fluids, damages workpiece surfaces, and forces costly unscheduled downtime.
The chip conveyor belt serves as the primary defense mechanism against swarf accumulation. Rather than acting as a simple passive accessory, an engineered chip conveyor belt system maintains continuous production cycles, protects high-pressure coolant pumps, and extends tool life. Selecting an improper conveying belt specification leads to mechanical jams, premature chain stretch, coolant sump contamination, and costly manual clearing operations.
.webp?t=1785815312460 "chip conveyor belt")
Technical Classification: Matching Chip Conveyor Belt Designs to Swarf
Profiles
No single conveyor architecture effectively manages all waste materials. The physical characteristics of the chip—its geometry, weight, friability, and magnetism—determine the required belt mechanism.

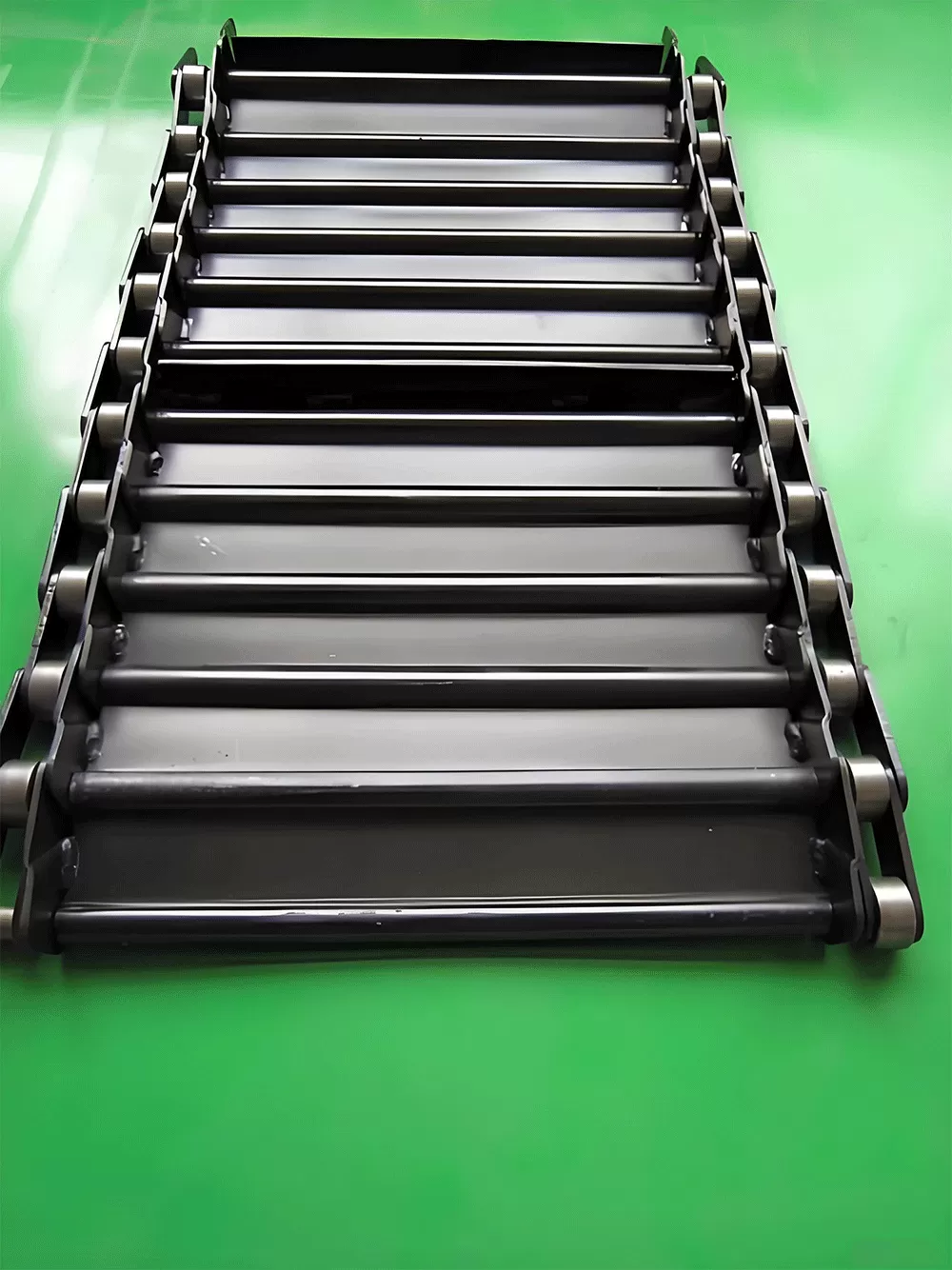

1. Hinge Belt Conveyors (Chain-Type Plates)
Hinge belt systems represent the most widely deployed continuous material handling design in metalworking. Built from interlocking steel apron plates connected by heavy-duty cross pins, these belts physically lift scrap out of the machine tank.
Best Suited For: Long, curly, stringy, or bushy scrap; mixed steel turnings; heavy brass or aluminum scrap.

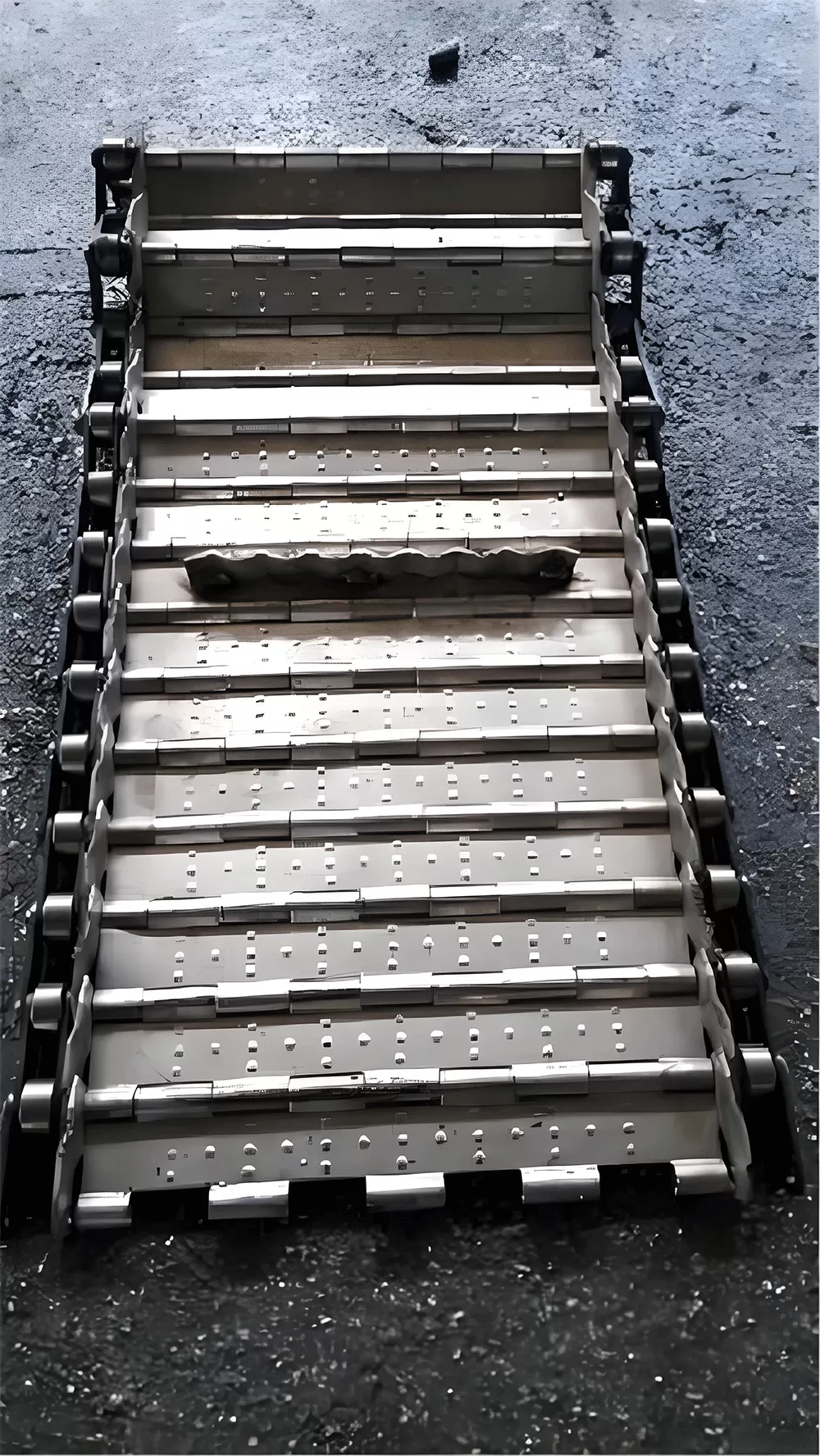

Design Variations: Available in multiple pitch options (typically 31.75 mm to 63.5 mm) with plain, dimpled, or perforated belt plates to facilitate fluid drainage. Integrated cleats (flights) are added at defined intervals to prevent heavy loads from sliding back down steep incline sections.
Engineering Limitation: Fine chips smaller than 2–3 mm can pass through the hinge plate gaps, settling at the bottom of the coolant tank over time.
2. Scraper and Drag-Flight Systems
Scraper conveyors utilize continuous side chains joined by transverse crossbars or paddle scrapers. Instead of carrying chips on top of a moving apron, the paddles drag fine debris along a hardened steel trough, pulling material up an incline to the discharge chute.
Best Suited For: Short, broken chips, fine brass turnings, cast iron granules, and aluminum swarf generated during high-speed milling.
Design Variations: Often combined with bottom wiper plates and secondary filtration screens to scrub the tank floor continuously.
Engineering Limitation: Stringy or long-turn material can tangle around the scraper flights and chain sprockets, causing drive lockups.
3. Magnetic Conveyors
Unlike mechanical belts that expose moving parts directly to sharp scrap, magnetic conveyors utilize a stationary stainless steel top plate with a motorized chain of powerful neodymium or ferrite magnets moving beneath it.
Best Suited For: Small ferrous fragments, cast iron dust, steel slurry, and short turnings.
Design Variations: Completely enclosed fluid-tight sheet metal housings ensure zero mechanical wear on moving internal parts from abrasive swarf.
Engineering Limitation: Strictly limited to ferromagnetic materials (iron, carbon steels). Completely ineffective for aluminum, copper, brass, or austenitic stainless steel.
4. Auger and Hybrid Drum Filtration Systems
Augers use a rotating helical screw inside a trough to push chips laterally. They are frequently deployed in tight machine bases or combined with secondary systems. For operations requiring micro-level coolant clarity, drum-filtration conveyor systems integrate a rotating mesh drum inside a scraper unit, filtering fluid down to 50–100 microns while evacuating solids.
Engineering Criteria for Selecting a Replacement or OEM Chip Conveyor Belt
When specifying a chip conveyor belt for a new installation or retrofitting an existing machine tool, mechanical engineers must evaluate several key operational variables:
Swarf Morphology & Volumetric Rate: High-speed aluminum machining creates massive chip volumes requiring wide belts with deep cleats, whereas deep-hole drilling produces dense, heavy metal fines requiring heavy-gauge scraper bars.
Coolant Type and Flow Volume: High-flow flood cooling requires perforated hinge plates or integrated filtration screens to ensure cutting fluid drops back into the main sump rather than overflowing out the discharge chute.
Incline Geometry and Discharge Height: Machine layouts determine the angle of incline (typically 30° to 60°). Steeper inclines necessitate taller cleat profiles and heavy-duty drive motors equipped with mechanical torque limiters or shear pins.
Material Wear Resistance: Abrasive swarf like cast iron quickly erodes standard mild steel plates. High-wear zones require hardened carbon steel, manganese alloy tracks, or 304/316 stainless steel belt components.
The Hidden Costs of Improper Swarf Management
Treating a chip conveyor belt as an afterthought results in clear financial losses across production lines:
Coolant Degradation and Sump Cleaning: Fine swarf settling in the coolant reservoir reduces effective tank volume, increases fluid temperature, accelerates bacterial growth, and shortens coolant service life.
Damage to High-Pressure Fluid Systems: Unfiltered swarf particles recirculate through coolant lines, causing premature scoring of pump impellers, clogged tool-center coolant passages, and scratched workpiece surfaces.
Thermal Distortions: Hot chips sitting inside the machine enclosure transfer heat directly into the machine bed, causing micro-thermal expansion that ruins tight dimensional tolerances.
Unscheduled Downtime: A jammed or snapped conveyor belt halts the entire CNC machine. Manual chip removal wastes operator hours and presents serious laceration hazards.
Maintenance, Belt Tensioning, and Extended Lifespan
To maximize service life, industrial plant maintenance teams should maintain a strict inspection protocol for every chip conveyor belt:
Chain Tensioning: Check chain sag regularly at the drive sprocket and return section. Over-tensioning causes accelerated pin wear and sprocket tooth deformation; under-tensioning leads to chain skipping and binding.
Drive System Protection: Verify that mechanical slip clutches or electronic current overload relays are set correctly to disengage the motor instantly if a heavy wedge lock occurs.
Trough and Wear Strip Monitoring: Inspect internal wear tracks for grooving or thin spots caused by fine abrasive swarf friction. Replace sacrificial UHMWPE or hardened steel wear strips before structural frame damage occurs.
.webp?t=1785815312460 "chip conveyor belt")
Custom Engineering Solutions by QUNHUI
Standard off-the-shelf conveyor units often fail to meet the demands of severe-duty machining environments. At QUNHUI, we design, engineer, and manufacture industrial-grade conveyor systems tailored to complex CNC machine configurations. Whether you require a high-tensile replacement hinge belt, an abrasive-resistant scraper unit, or a complete custom swarf management retrofit, QUNHUI delivers heavy-duty construction built to withstand continuous industrial operation.
Frequently Asked Questions (FAQ)
1. How do I know if I need a hinge belt or a scraper chip conveyor belt?
Choose a hinge belt conveyor if your machining process produces long, stringy, or mixed metal turnings. Select a scraper conveyor if your operation mainly generates fine swarf, small broken chips, or non-ferrous dust like brass or cast iron powders that easily drop through hinge plate gaps.
2. Can a chip conveyor belt handle both ferrous and non-ferrous materials?
Yes. Mechanical systems such as hinge belt and scraper conveyors handle both ferrous (steel, iron) and non-ferrous (aluminum, brass, plastic) materials without issue. Only magnetic chip conveyors are strictly limited to ferrous materials.
3. Why are my metal chips carrying coolant out into the discharge bin?
This usually occurs when fluid cannot drain back into the tank fast enough. Common causes include using solid belt plates instead of perforated hinge plates, excessively fast belt speed, or an overly steep incline without sufficient drain-back dwell time. Adjusting belt speed or upgrading to perforated belt segments resolves this issue.
4. How often should a CNC chip conveyor belt be inspected?
Perform visual inspections weekly to check chain tension, cleat condition, and track wear. Sump tanks should undergo monthly checks for sediment accumulation, and drive chain lubrication should be conducted per manufacturer guidelines.
5. Can QUNHUI manufacture custom replacement belts for older or obsolete CNC machines?
Yes. QUNHUI specializes in custom engineering and reverse engineering replacement conveyor belts. By providing structural dimensions, pitch measurements, and material specifications, we can manufacture exact-fit drop-in replacement belts for virtually any machine tool brand.
