The Ultimate Buyer’s Guide to Custom Magnetic Chip Conveyors in 2026

Unplanned machine downtime directly damages factory profitability. In modern CNC machining facilities, small ferrous chips and cast iron sludge constantly accumulate inside the machine bed. If you do not remove these wastes efficiently, they contaminate cutting fluids, wear out coolant pumps, and damage internal components.

A reliable magnetic chip conveyor solves this problem by continuously extracting ferrous waste without using exposed moving belts. As automated production demands higher uptime in 2026, choosing the correct conveyor design is critical for your operational bottom line.

At QUNHUI, we leverage over 15 years of precision manufacturing experience across our 10,000 square meter facility. We build custom conveyor systems engineered to handle tough metalworking environments. This guide explains how to select, customize, and integrate the right magnetic chip conveyor for your facility.

Understanding Magnetic Chip Conveyors

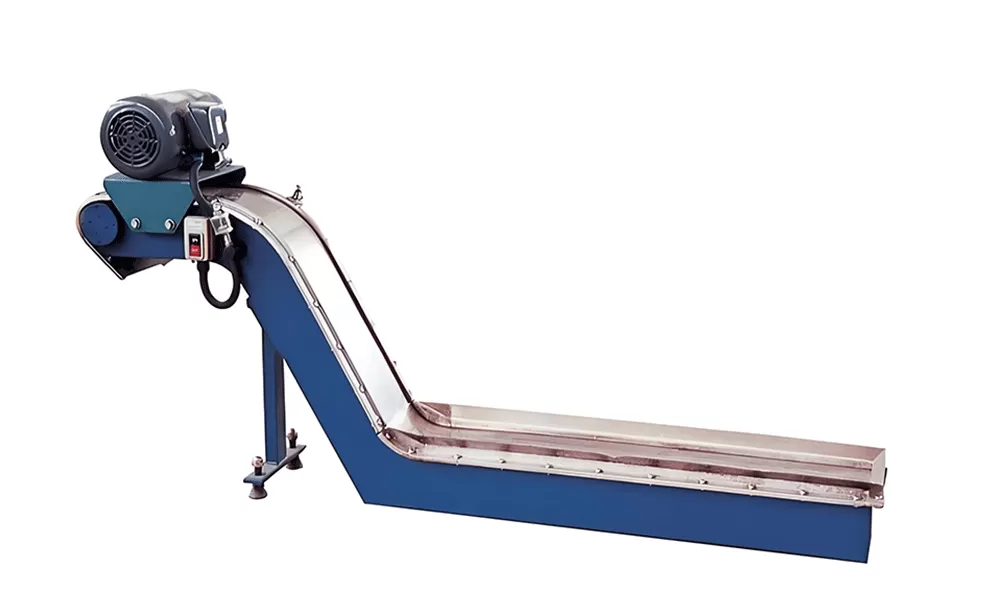

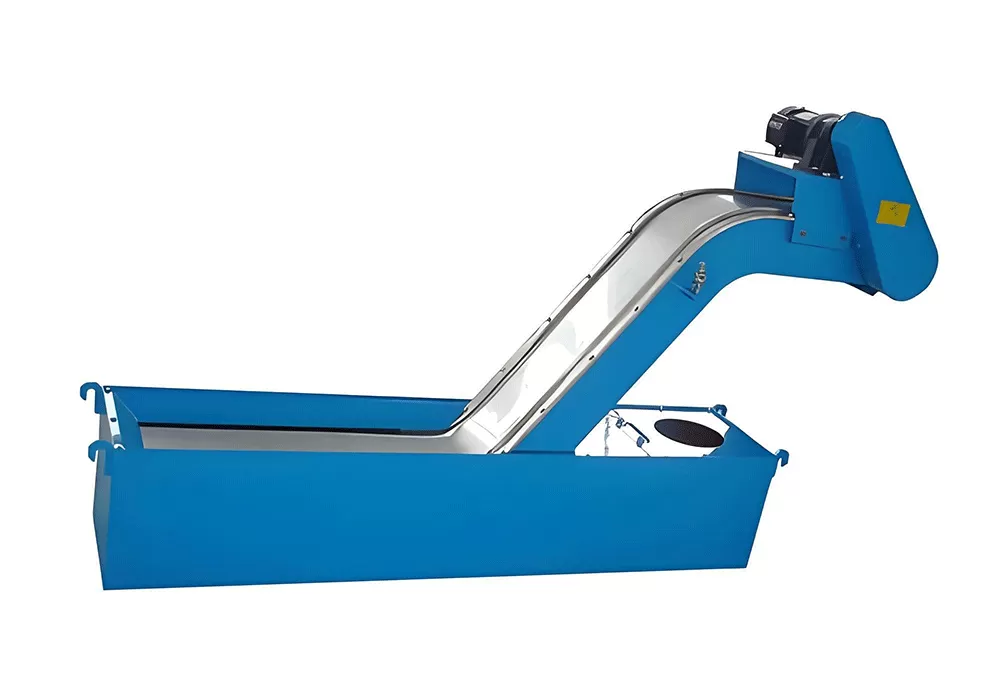

A magnetic chip conveyor uses powerful permanent magnets mounted on a continuous chain beneath a stationary stainless steel deck. As the internal chain moves, the magnetic field attracts ferrous debris through the deck plate and slides it toward the discharge chute.

Because the mechanical chain stays completely enclosed inside the liquid-tight casing, small metal particles cannot jam the driving mechanism. This design offers distinct operational advantages over traditional hinge belt conveyors when handling specific scrap types.

Ideal Work Materials

Magnetic scrap management systems excel at handling specific ferrous materials generated during high-speed machining:

• Cast Iron Chips: Powdered or granular iron dust that wears out mechanical hinges.

• Small Steel Turnings: Short, broken ferrous chips produced during heavy turning or milling.

• Grinding Swarf: Fine sludge mixed with cutting oil or water-soluble coolant.

• Drilling Waste: Fine ferrous needles and small scrap pieces.

Note on Non-Ferrous Materials: A magnetic chip conveyor relies strictly on magnetism. It cannot move aluminum, brass, bronze, or 300-series stainless steel scrap. For non-magnetic materials, scraper or hinge-belt conveyors are required.

The QUNHUI Engineering Advantage

Standard off-the-shelf units often fail due to magnet detachment, casing wear, or liquid leakage. QUNHUI designs custom units using high-grade SUS304 stainless steel wear plates and heavy-duty drive chains. Our fully sealed construction prevents fluid ingress, protecting internal drive components and significantly extending equipment service life.

Key Customization Factors for 2026

Every CNC machine tool features unique discharge dimensions, coolant flow rates, and floor space constraints. Off-the-shelf conveyors rarely fit correctly or perform reliably over long periods. Below are the critical customization parameters you must evaluate before ordering.

Dimensions and Physical Layout

Physical integration determines how efficiently scrap moves from the machine base to your collection hopper. You must configure three primary physical dimensions:

• Inlet Section Length: Must match the footprint of your CNC machine tool tank outlet to catch all falling debris.

• Incline Angle: Typically built at 30°, 45°, or 60° angles depending on available floor space and discharge height requirements.

• Discharge Height: Standardized to clear your waste bins, drum trolleys, or central briquetting systems.

Magnetic Intensity and Circuit Layout

Not all ferrous scrap responds to magnetism in the same way. Fine iron dust requires dense magnetic fields, while heavy steel chips demand deeper magnetic reach.

QUNHUI customizes the magnetic core using either high-grade Ferrite or high-density Neodymium (NdFeB) magnets. We adjust the magnet spacing and arrangement pattern based on your material type, liquid viscosity, and total daily chip volume.

Coolant Filtration and Tank Integration

Wet machining processes require effective separation of cutting fluid from metal scrap. A custom magnetic chip conveyor can double as a preliminary coolant filtration conveyor by incorporating built-in settling zones and fine mesh screens.

Integrating oil skimmers, dual-bag filter housings, or secondary coolant tanks directly into the conveyor frame improves fluid cleanliness. Clean coolant extends tool life, reduces pump failures, and lowers chemical replacement costs across your plant.

Smart Controls and Industry 4.0 Features

Smart factories require intelligent equipment monitoring. Modern custom magnetic chip conveyors integrate directly with your CNC center's PLC via standardized industrial protocols.

QUNHUI fits custom conveyors with smart sensors that monitor drive motor current, detect mechanical jams, and trigger automated reverse cycles to clear obstructions. Variable frequency drives (VFD) allow operators to adjust belt speed according to real-time machining load, reducing energy usage during lighter cuts.

The QUNHUI Complete Machine Protection Ecosystem

Scrap handling represents only one part of maintaining an efficient machine tool. To keep your CNC equipment operating without interruption, QUNHUI manufactures a full suite of protective and auxiliary equipment engineered to work together.

Automated Waste Processing: Metal Briquetting Presses

Once your custom magnetic chip conveyor extracts ferrous scrap from the machine base, managing the loose chips becomes the next challenge. Loose iron sludge and turnings occupy substantial floor space and carry away costly coolant.

Directly feeding the discharged chips into a QUNHUI compact metal briquetting press compresses loose scrap into dense, solid blocks. This process reclaims up to 95% of trapped cutting fluids and increases the scrap value of your metal waste.

Guide Way Protection: Industrial Bellows Covers

While the conveyor removes scrap from the machine bed, airborne dust and hot flying chips can still strike precision guide ways and ball screws. Damaged ways degrade machining accuracy and require expensive overhauls.

QUNHUI manufactures high-durability industrial bellows covers tailored to your machine geometry. Made from heat-resistant, oil-proof materials, our covers shield internal components from harsh machining environments.

Utility Protection: Heavy-Duty Drag Chains

Modern multi-axis machining centers rely on complex lines carrying electricity, hydraulic fluid, air, and coolant. Unprotected lines risk snagging on moving machine parts or sharp metal scrap.

QUNHUI heavy-duty drag chains organize and protect moving cables and hoses. Built to withstand high accelerations and continuous flexing, our cable carriers prevent line failures and maintain smooth automation workflows.

Why Partner with QUNHUI?

Selecting the right supplier for your custom magnetic chip conveyor ensures long-term operational stability and low total cost of ownership. QUNHUI combines advanced manufacturing infrastructure with deep industry experience.

• Manufacturing Scale: Our modern 10,000 m² factory houses advanced fiber laser cutters, CNC press brakes, and automated welding systems for consistent build quality.

• Proven Industry Expertise: With over 15 years in machine accessory manufacturing, we understand the operational challenges of modern machine shops.

• Strict Quality Management: Every magnetic chip conveyor undergoes extensive run-in testing, load verification, and seal inspection before shipment to ensure compliance with ISO and CE standards.

• Full Custom Engineering: Our specialized R&D team provides complete 3D modeling and custom electrical design to match your exact OEM or retrofitting specifications.

Step-by-Step Custom Ordering Process

Ordering a custom solution from QUNHUI is straightforward. We work closely with your engineering team through every phase of the project:

Step 1: Material and Volume Analysis
Define the metal type (cast iron, carbon steel, alloy steel), chip shape (powder, short chips), cutting fluid type, and expected hourly output.

Step 2: Machine Interface Measurement
Provide your CNC machine model or detailed drawings showing the coolant tank cutout, mounting clearance, and desired discharge point.

Step 3: Electrical & Control Specification
Specify operating voltage, motor protection requirements, VFD preferences, and PLC communication protocols.

Step 4: Design Review and Approval
Our engineering team generates a comprehensive 3D CAD model and technical proposal for your review and sign-off.

Step 5: Precision Fabrication and Delivery
After approval, we manufacture, test, and package your custom unit for fast global shipment and installation.

Frequently Asked Questions

Q1: Can a magnetic chip conveyor handle aluminum or brass chips?
A1: No. Magnetic chip conveyors require magnetic materials like cast iron or steel. For non-ferrous metals like aluminum or brass, a scraper conveyor or hinge-belt conveyor must be used instead.

Q2: How do I choose the correct discharge height for my conveyor?
A2: Measure the height of your scrap collection hopper or briquetting machine inlet. Ensure the conveyor discharge chute sits at least 100 mm to 150 mm above the bin rim to allow easy hopper replacement.

Q3: What routine maintenance does a magnetic conveyor require?
A3: Because the internal drive chain is fully enclosed, routine maintenance is minimal. Operators should periodically check drive chain tension, inspect the gear reducer oil level, and clean any external sludge build-up around the discharge chute.

Q4: Can QUNHUI supply integrated electrical control boxes?
A4: Yes. We can provide standalone control panels with VFDs and overload protection, or wire the conveyor interface directly into your CNC machine tool's main electrical cabinet.

Q5: What is the typical production lead time for a custom conveyor?
A5: Fabrication timelines depend on system complexity and order volume. Standard custom units typically ship within 2 to 3 weeks after final 3D drawing approval.

Optimize Your Machinery Performance with QUNHUI

Investing in a custom magnetic chip conveyor eliminates painful maintenance bottlenecks, keeps cutting fluid clean, and protects your machinery investment. By pairing reliable chip extraction with QUNHUI bellows covers, drag chains, and metal briquetting presses, you create a cleaner, safer, and far more productive workshop.

Ready to upgrade your CNC scrap handling system for 2026? Contact the engineering experts at QUNHUI today to discuss your specifications, request technical drawings, or receive a fast, competitive quote for your custom project!
