Which Metal Chip Conveyor Systems Best Suit Your CNC Machining Operations?

High-capacity CNC machining centers generate significant volumes of scrap metal during routine subtractive manufacturing processes. Without an automated, reliable method of waste extraction, accumulated swarf quickly interferes with machine spindles, damages raw workpieces, and accelerates tool wear. Implementing high-efficiency metal chip conveyor systems resolves these operational challenges by continuously removing scrap directly from the machining envelope.

Industrial manufacturing plants require automated waste handling to keep manual intervention to a minimum. When operators must pause spindle cycles to shovel out chips, production efficiency drops. By examining the mechanics of material movement, machine integration, and coolant management, engineering teams can implement scrap handling systems that run continuously alongside high-speed machine tools. QUNHUI engineers custom conveyor assemblies to match specific workshop footprints and material demands, ensuring steady production throughput.

Primary Classifications of Scrap Extraction Conveyors

Selecting the appropriate extraction mechanism depends entirely on the material being cut and the geometry of the resulting chips. Different metals behave differently under cutting forces, yielding everything from fine powder to long, stringy nests. Installing an incorrect conveyor configuration leads to frequent mechanical jams, excessive carry-back of particles into the coolant reservoir, and premature wear on the conveyor components.

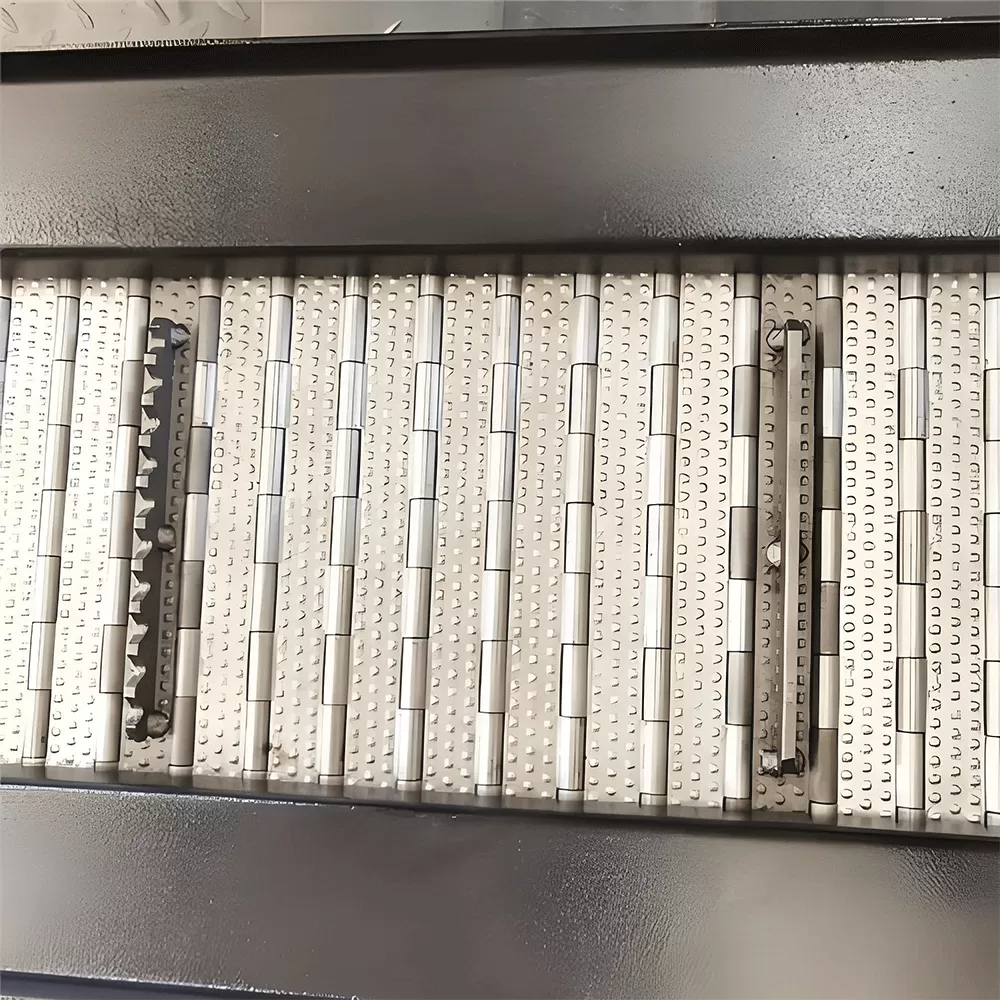

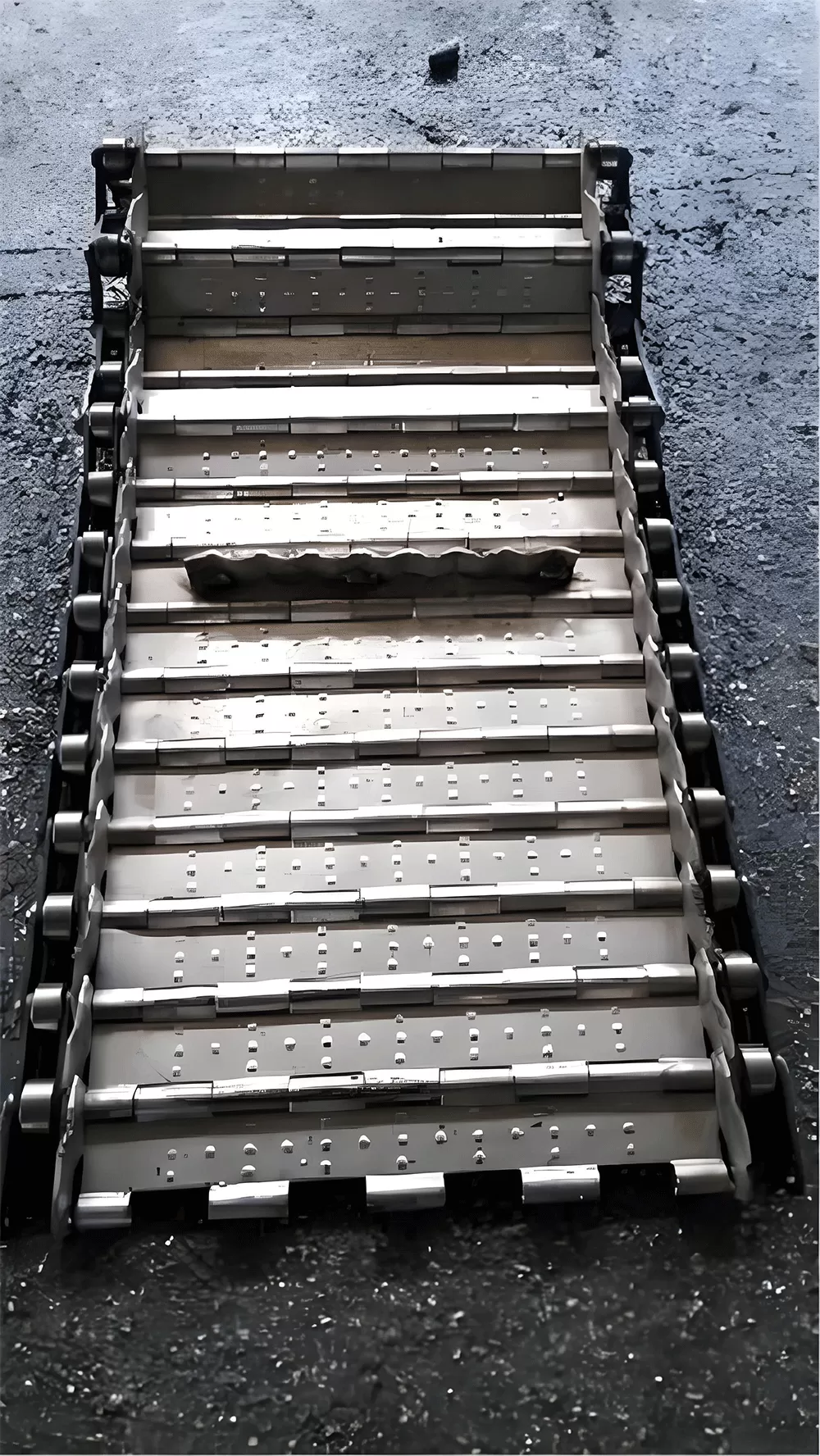

Hinged Steel Belt Conveyors

Hinged belt configurations serve as the standard choice for general CNC machining environments. These systems feature interconnected steel belt plates that form a continuous loop. As the conveyor moves, chips fall onto the belt surface and are carried up an incline to a discharge hopper.

• Best Suited For: Heavy-duty roughing chips, long stringy turnings, curly brass swarf, and medium-sized steel stampings.

• Pitch Variations: Typically available in 31.75mm (1.25 inch), 38.1mm (1.5 inch), and 50.8mm (2.0 inch) pitches to handle varying volumes and sizes of scrap.

• Key Advantage: Highly durable construction that resists puncture and wear from sharp, heavy metal pieces.

Scraper and Drag Chain Conveyors

Scraper systems operate on a different mechanical principle. Rather than carrying the material on top of a belt, a series of crossbars or scrapers are attached to a dual drive chain. These scrapers drag along the bottom of the conveyor housing, pulling the settled metal particles up the incline.

• Best Suited For: Fine brass, cast iron chips, aluminum granules, and short, broken chips.

• Coolant Settling: Particularly effective when paired with coolant filtration because the scrapers continuously clean the bottom of the tank, preventing silt buildup.

• Design Variation: Often fitted with hard-wearing carbide wear strips along the conveyor bed to prevent the scrapers from wearing down the housing.

Magnetic Conveyors

For operations exclusively cutting ferrous materials, magnetic chip conveyors offer a low-maintenance alternative. These systems do not contain external moving belts or scrapers. Instead, powerful permanent magnets rotate on a chain inside a sealed, stationary stainless steel housing, pulling the ferrous chips along the exterior sheet metal face toward the discharge point.

• Best Suited For: Ferrous metal chips, fine steel turnings, cast iron dust, and small steel components.

• Wear Reduction: Since the moving parts are completely sealed inside a lubricated oil bath, the abrasive chips never contact the internal chains or sprockets.

• Safety Benefit: Eliminates the risk of external mechanical jamming from wedged scrap metal pieces.

Screw and Spiral Conveyors

Screw conveyors utilize a rotating helical auger to push metal debris along a trough. These are highly compact units, frequently integrated directly into the casting beds of compact CNC lathes and vertical machining centers.

• Best Suited For: Uniform, dry, or semi-wet chips in spaces with limited floor clearances.

• Space Efficiency: Excellent for routing material out of hard-to-reach pockets inside the machine tool cabinet.

• Limitation: Not suitable for long, stringy nests of steel chips, which can wrap around the auger shaft and cause motor overloads.

Coolant Separation and Filtration Integration

The relationship between metal chip conveyor systems and coolant filtration is highly interdependent. During high-pressure machining, chips are saturated with water-soluble coolant or neat cutting oils. Simply removing the dry metal is insufficient; the conveyor must also separate the liquid component to preserve coolant volume and prevent workshop contamination.

Gravity-fed filtration systems are commonly integrated directly into the lower basin of the conveyor frame. As the conveyor lifts the chips out of the machine bed, the liquid drains through perforated screens or wedge-wire grates. The design of these grates must balance two opposing goals: allowing high fluid flow rates while blocking fine metal particulate from entering the clean coolant tank.

When fine particles bypass the primary conveyor screen, they accumulate in the main coolant reservoir. This silt acts as an abrasive, damaging high-pressure coolant pumps, eroding coolant delivery nozzles, and degrading the surface finish of the machined components. Implementing a secondary filtration stage, such as a paper band filter or drum filter within the conveyor assembly, helps capture particles down to 50 microns. QUNHUI configures integrated filtration zones that return clean coolant to the reservoir, reducing fluid replacement costs and maintaining consistent machining temperatures.

Automation Interfaces and CNC Integration

A modern production facility requires seamless communication between the machine tool controller and the ancillary material handling systems. A chip conveyor must not operate as an isolated island of machinery. Instead, it must integrate directly with the CNC machine’s electrical cabinet and control logic via M-codes and standard fieldbus networks.

During standard operations, the conveyor is programmed to run only when the spindle is active, or at set intervals. This intermittent operation reduces wear on the conveyor components and conserves electrical energy. If a jam occurs due to a large nest of chips or a dropped workpiece, the conveyor’s control board must immediately communicate this fault to the CNC controller.

This communication is handled through a physical interface or digital I/O lines. If the conveyor motor draws excessive current, a torque limiter or electronic current sensor trips. The conveyor controller then sends an emergency stop (E-stop) signal to the CNC machine, halting all axis movements and spindle rotation. This fast response prevents damage to the conveyor chain, the drive motor, and the workpiece inside the machine.

Operational Challenges and Preventative Maintenance Protocols

Even robust industrial machinery requires scheduled maintenance to prevent unexpected downtime. The abrasive nature of metal chips combined with the corrosive chemical makeup of some cutting fluids creates a harsh operating environment inside the conveyor housing.

Chain tension adjustment is one of the most frequent maintenance tasks. Over time, the drive chains on hinged belt and scraper conveyors stretch due to mechanical wear on the pins and bushings. If the chain becomes too loose, it can jump the drive sprockets or track unevenly, leading to a severe mechanical jam. Maintenance crews should inspect chain tension monthly and adjust the take-up bolts on the discharge frame to maintain the recommended sag.

Another common issue is the accumulation of fine particulates at the bottom curve of the conveyor frame, often referred to as the boot. Fine aluminum or cast iron dust settles out of the coolant and forms a dense sludge. If this sludge is not periodically flushed or scraped out, it hardens and acts as an abrasive paste, rapidly wearing down the conveyor belt hinges and frame bottom. Installing automated flushing nozzles within the conveyor bed helps keep these fine particles in suspension until they can be evacuated by the scrapers.

Selecting the Appropriate System for Your Facility

Specifying a material handling system requires evaluating several engineering parameters. A mismatched system leads to premature component failure and constant manual cleanouts. Engineers must analyze the variables listed below to select the right system:

• Material Type: Ferrous materials allow the use of magnetic separation, whereas non-ferrous materials like aluminum and brass require mechanical belt or scraper designs.

• Chip Morphology: Long, continuous stringy chips require a hinged belt with aggressive cleats to grab and pull the material up the incline. Short, broken chips are better handled by scraper or screw designs.

• Coolant Flow Rate: High-volume coolant systems require large drainage areas and specialized filtration screens within the conveyor boot to prevent flooding.

• Discharge Height: The height of the discharge chute must match the height of the workshop's collection bins or overhead central conveyor systems.

By defining these parameters early in the project design phase, manufacturing plants can avoid retrofitting costs. QUNHUI works directly with engineering teams to analyze these factors, creating custom drawings that fit specific floor layouts and machine tool specifications.

Frequently Asked Questions

Q1: What is the main cause of chain jamming in hinged belt metal chip conveyor systems?

A1: The primary cause of jamming is the accumulation of long, stringy turnings that wrap around the drive sprockets or get wedged between the hinged belt plates and the side frame. This issue is often worsened by improper chain tension or worn wiper blades that allow chips to bypass the belt and enter the internal drive mechanism.

Q2: Can aluminum chips be processed using a magnetic conveyor?

A2: No, aluminum is a non-ferrous metal and is not attracted to magnetic fields. For aluminum machining, a hinged steel belt or a scraper conveyor is recommended, depending on the size and shape of the chips generated during cutting.

Q3: How often should the coolant filtration screens inside the conveyor be cleaned?

A3: The cleaning frequency depends on the production volume and the material being machined. In high-volume operations producing fine particulate, screens should be checked and cleared daily. Many modern systems incorporate automatic self-cleaning backwash nozzles to reduce manual maintenance intervals.

Q4: How does a torque limiter protect the conveyor drive motor?

A4: A mechanical or electronic torque limiter detects when the resistance on the conveyor belt exceeds safe operating limits, such as during a physical jam. It immediately slips the drive or cuts power to the motor, preventing motor burnouts, broken chains, and twisted drive shafts.

Q5: Why is carry-back an issue, and how can it be controlled?

A5: Carry-back occurs when small chips stick to the underside of the returning conveyor belt instead of discharging into the scrap hopper. These chips travel back into the lower conveyor housing, causing wear on internal components. It can be controlled by installing spring-loaded belt wipers, brush assemblies, or coolant spray bars at the discharge head.

Technical Engineering Support and Custom Inquiries

Integrating efficient waste removal into a CNC machining line requires careful planning and precise mechanical execution. Standard off-the-shelf conveyor designs rarely match the unique constraints of customized machine configurations, floor spaces, and material profiles. QUNHUI engineers custom metal chip conveyor systems tailored to the specific demands of high-volume industrial facilities.

To request technical drawings, system specifications, or to discuss how our conveyor designs can integrate with your existing CNC machine tools, please contact our engineering support team directly. We provide comprehensive layout reviews and material compatibility assessments to ensure your material handling systems operate reliably.
