5 Engineering Factors for Selecting a Chip Screw Conveyor in CNC Automation

High-efficiency subtractive manufacturing demands continuous, unhindered operational cycles. CNC turning centers, milling machines, and multi-axis machining centers generate substantial volumes of metallic swarf, turning scrap, and fine particulates. If left unmanaged, this accumulated waste causes thermal distortion, damages precision workpieces, and leads to tool breakage. Implementing a reliable chip screw conveyor is a practical method to continuously evacuate waste from the machining enclosure. As an industrial equipment manufacturer, QUNHUI designs and fabricates these systems to help manufacturing facilities maintain consistent operational workflows.

The selection of waste removal equipment directly affects the reliability of automated production lines. A well-designed chip screw conveyor, also referred to as an auger conveyor, provides a compact footprint and mechanical simplicity, making it a preferred choice for integration into tight machine tool configurations. Understanding the mechanical variables, material handling dynamics, and structural configurations of these systems is necessary for achieving optimal performance in automated industrial environments.

Mechanical Configuration: Shafted vs. Shaftless Screw Designs

The core operating mechanism of a chip screw conveyor relies on a rotating helical flight housed within a trough or pipe. This mechanism physically pushes material along the length of the conveyor. Depending on the physical characteristics of the metal chips being processed, engineers must choose between a shafted or a shaftless configuration. Each design offers distinct mechanical behaviors suited to specific types of manufacturing debris.

Shafted Screw Conveyors

In a shafted configuration, the helical flights are welded to a central structural tube. This central shaft provides high torsional stiffness, allowing the system to span longer distances without intermediate hanger bearings, which can become points of material accumulation. This design is highly effective for transporting loose, granular material, fine cast iron chips, brass swarf, and small metal parts. The rigid central shaft ensures that the screw retains its linear alignment under load, reducing the potential for housing contact and physical wear.

Shaftless Screw Conveyors

Conversely, shaftless configurations eliminate the central tube, utilizing a heavier, reinforced helical flight that rests directly on a wear-resistant liner at the bottom of the trough. This open-center design provides a distinct advantage when handling long, continuous, stringy nest-like chips, commonly generated during the turning of low-carbon steels and ductile materials. Without a central shaft to wrap around, stringy swarf moves freely along the flight path without causing binding or blockages. The lack of a center shaft also increases the volumetric capacity of the conveyor, enabling the transport of larger, irregular clumps of waste material.

Swarf Characteristics and Conveyor Selection Mechanics

The physical metallurgy of the workpiece material dictates the design requirements of the transport system. Metal chips are not uniform; they vary in density, geometry, sharpness, and oil content. A chip screw conveyor manufactured by QUNHUI is tailored to handle these varying characteristics through specific modifications in flight pitch, trough shape, and rotational speed.

Aluminum machining generates high-volume, low-density chips that tend to cling to surfaces due to static electricity and residual cutting fluids. To prevent aluminum buildup, the conveyor flights can be polished or coated with low-friction materials. The pitch of the screw is typically widened in the collection zone to accommodate the high volumetric flow of aluminum swarf without compression, which could lead to packing and eventual mechanical jams.

Steel and alloy steel machining produces high-tensile, abrasive chips with sharp edges. These materials pose a continuous wear challenge to both the conveyor flights and the housing trough. To address this, high-durability wear liners made from manganese alloys or hardened polyurethane are installed within the trough. The screw flights themselves are often constructed from abrasion-resistant steels, ensuring the conveyor maintains its structural integrity over millions of operational cycles.

Cast iron and brass processing present a different challenge: the production of extremely fine, powdery debris. These micro-particles sink to the bottom of coolant reservoirs, forming a dense sludge that can bypass standard conveyor systems. For these applications, the chip screw conveyor is designed with a very fine pitch to ensure positive displacement of the fine sediment, and it is frequently coupled with integrated drum filtration or rare-earth magnetic separators to clean the coolant before recirculation.

Engineering Integration within CNC Machine Enclosures

Integrating a conveyor system into a CNC machine tool requires careful consideration of space, incline angles, and coolant management. Because modern machine enclosures prioritize a compact footprint, the chip screw conveyor must fit directly beneath the machine slides or inside the casting bed. This leaves little room for bulky drive mechanisms or oversized hoppers.

The incline angle of the discharge section is a major factor in transport efficiency. While a horizontal run carries material with minimal mechanical losses, elevating the chips to a discharge height (often 1000mm to 1200mm above floor level to clear waste bins) introduces gravitational resistance. As the angle of incline increases, particularly beyond 25 degrees, loose chips have a tendency to slide backward down the trough. To mitigate this gravity-induced fallback, designers adjust the pitch-to-diameter ratio of the screw or use dual-flight configurations in the incline zone to trap the material more effectively.

Coolant preservation is another factor in B2B machining environments. Wet chips carry substantial volumes of expensive cutting fluids out of the machine. The conveyor trough must serve a dual purpose: transporting solids while allowing liquid coolant to drain back into the machine reservoir. This is accomplished by incorporating perforated stainless-steel wedge-wire screens or slotted drainage plates beneath the conveyor inlet. These filtration elements let the coolant pass through while retaining the solid metal debris, maintaining the fluid balance within the CNC machine.

Addressing Common Operational Bottlenecks

Industrial operations face several common issues when deploying auger-style conveyors. Analyzing these challenges allows for the implementation of preventative engineering designs rather than reactive maintenance procedures.

• Chip Nesting and Bridging: When long turnings entangle, they form large structures that "bridge" over the conveyor inlet, preventing new waste from entering the screw. This is resolved by installing integrated mechanical chip breakers or dual-axis feed rollers at the hopper entrance to pre-condition the waste stream.

• Abrasive Wear and Scoring: Fine, hard particles can wedge between the outside diameter of the screw flight and the inside diameter of the trough. If the clearance is too tight, this leads to scoring and high frictional drag. Maintaining a precise radial clearance of 3mm to 5mm, combined with replaceable hardened wear strips, preserves the lifetime of both components.

• Drive System Overload: Accidental entry of foreign objects, such as dropped workpieces or tooling inserts, can jam the screw instantly. If the drive motor continues to apply torque, structural damage occurs. QUNHUI integrates electronic torque-monitoring drives and mechanical slip clutches that instantly disengage power when an obstruction is detected, protecting the mechanical drive train.

By addressing these operational bottlenecks during the design phase, the overall reliability of the manufacturing cell is maintained. The focus remains on continuous, unsupervised production, reducing the reliance on manual intervention to clear blockages.

System Maintenance and Operational Longevity

Sustaining the operation of a chip screw conveyor requires structured preventive maintenance protocols. Because these machines operate in harsh environments filled with abrasive dust and chemical coolants, routine checks prevent unexpected component wear. A major focus of maintenance is the inspection of the end bearing assemblies and mechanical seals. These seals prevent fine metal particles and pressurized coolant from entering the bearing housings, which would otherwise cause rapid bearing failure.

Lubrication cycles must be strictly followed, particularly for conveyors equipped with external drive chains and gear reducers. Using automatic lubrication systems ensures that moving components receive consistent lubrication without requiring machine downtime. Furthermore, monitoring the physical thickness of the screw flights over time helps operators plan for refurbishments or replacements during scheduled plant shutdowns, preventing emergency stoppages during peak production periods.

Modern automated systems also utilize programmable logic controller (PLC) integration to monitor conveyor health. By tracking motor current draw, the PLC can detect gradual increases in friction, which may indicate a build-up of material behind the flights or a misaligned shaft. This sensor-driven approach allows maintenance teams to address minor mechanical issues before they develop into serious operational failures.

Frequently Asked Questions

Q1: What are the primary design differences between a chip screw conveyor and a hinge belt conveyor?

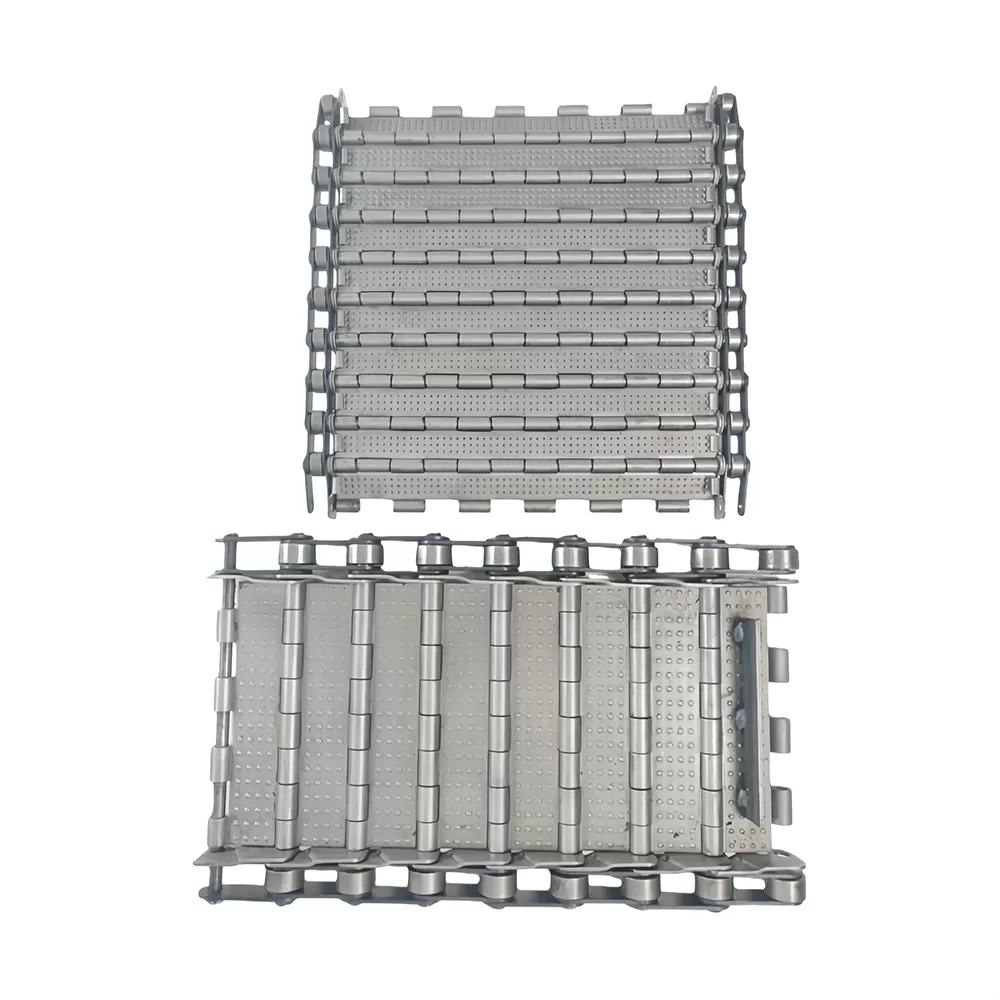

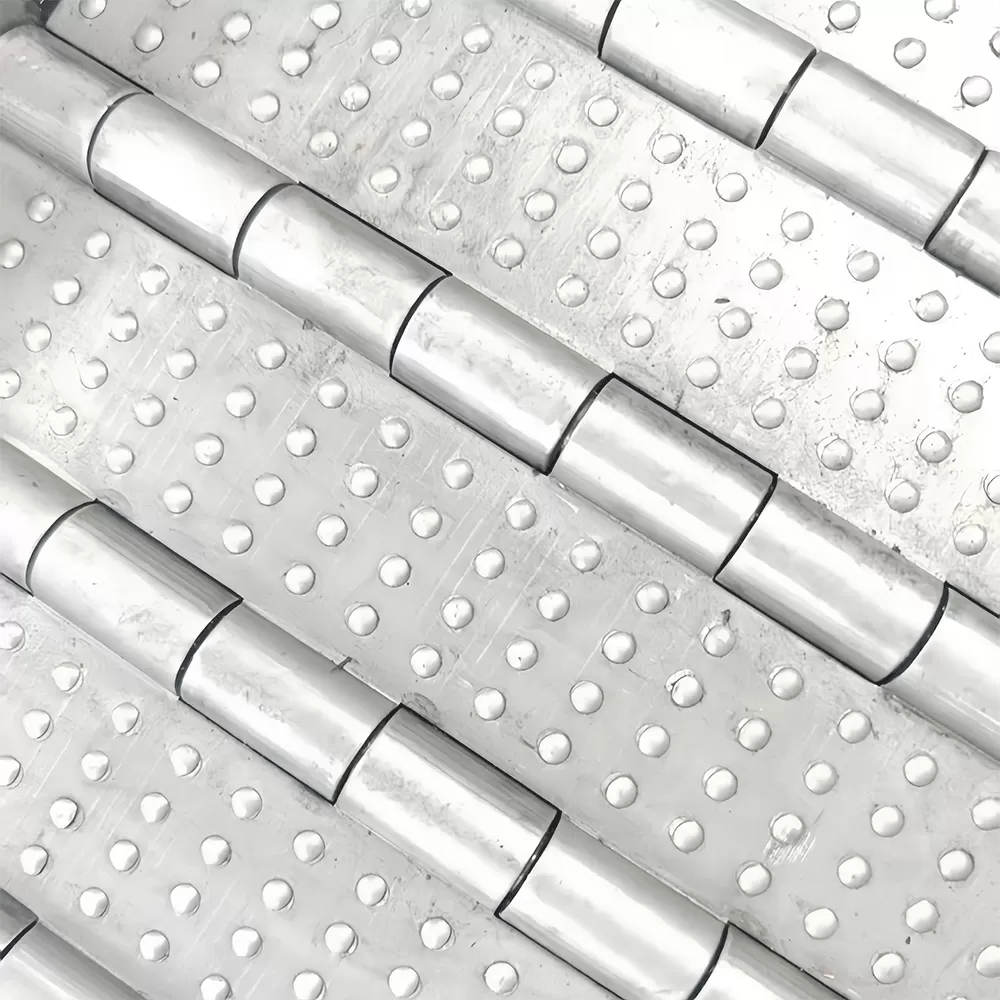

A1: A chip screw conveyor utilizes a rotating helical auger to push material through a trough, making it highly compact and efficient for fine, granular, or curly chips. A hinge belt conveyor uses a continuous loop of hinged steel plates to carry chips on top of the belt, which is better suited for heavy parts, large stampings, and massive volumes of mixed swarf, though it requires a larger integration footprint within the machine tool.

Q2: How does QUNHUI prevent coolant loss during the chip evacuation process?

A2: We integrate custom-designed drainage zones featuring perforated screens, slotted plates, or wedge-wire strainers beneath the conveyor inlet. This allows cutting fluids to drain back into the machine tank while the solid swarf is carried upward. The slow rotational speed of the screw on the incline section also provides sufficient dwell time for residual coolant to run back down the trough before discharge.

Q3: Can a shaftless screw design handle abrasive materials like cast iron?

A3: While shaftless screws are highly effective for stringy materials, using them with highly abrasive materials like cast iron requires special design considerations. Because a shaftless screw rests directly on the bottom of the trough, abrasive dust can act as a grinding medium. For highly abrasive applications, QUNHUI recommends a shafted screw design to keep the flights suspended, or the installation of specialized hardened wear liners along the trough bed.

Q4: What mechanical safety features are installed to protect the conveyor from sudden jams?

A4: To prevent structural damage from dropped parts or solid obstructions, our conveyor drives are equipped with adjustable mechanical slip clutches or electronic current-limiting sensors within the PLC drive cabinet. If a jam occurs, the system instantly cuts power to the motor and can be programmed to run a brief reverse cycle to attempt to clear the obstruction automatically before triggering an operator alarm.

Q5: How does the angle of inclination affect the throughput capacity of the screw?

A5: As the inclination angle increases, the volumetric efficiency of the screw decreases due to material fallback and gravitational forces. Generally, for every 10 degrees of incline above horizontal, capacity can decrease by approximately 10% to 15%. To offset this loss, we modify the pitch of the screw, increase the flight depth, or adjust the rotational speed to ensure the desired discharge volume is maintained.
