How Does a Chip Auger Conveyor Improve Cycle Efficiency in Automated Machining?

In high-capacity manufacturing plants, continuous operation is necessary to maintain profitability and meet tight production schedules. As CNC machining centers operate at higher spindle speeds and deeper cutting depths, the volume of metal chips, or swarf, generated per minute increases significantly. If left unmanaged inside the machine enclosure, this waste material accumulates rapidly, leading to thermal distortion of the machine frame, tool damage, and unscheduled maintenance halts. To address these challenges, implementing a reliable automated chip removal system is a key step for plant managers.

Integrating a dedicated chip auger conveyor is a practical, space-efficient method to automate the removal of these metal shavings. From the perspective of industrial design at QUNHUI, the continuous mechanical extraction of metal scrap directly impacts the stability of the machining environment. This analysis provides a detailed study of the mechanical principles, integration strategies, and selection criteria for industrial auger-driven chip removal systems used in modern automation.

Mechanics of Helical Flighting in Swarf Removal

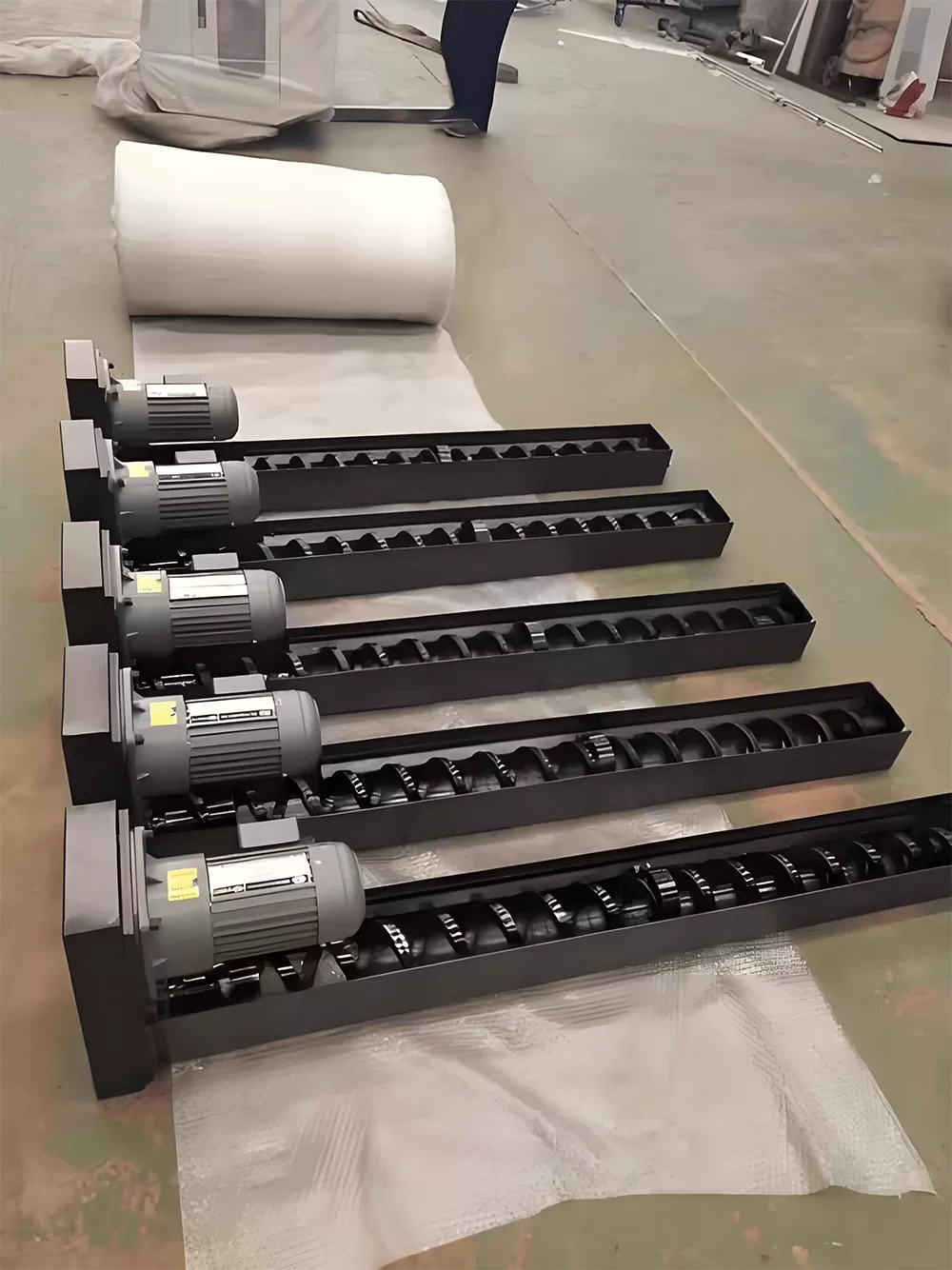

A chip auger conveyor operates on the Archimedes screw principle, utilizing a rotating helical screw within a trough to push materials along a linear path. Unlike belt conveyors, which rely on tensioned rubber or steel belts to carry debris, the auger uses rotational force to slide material forward. This mechanical simplicity makes the system highly resilient to abrasive metal particles and minimizes the number of moving parts exposed to the cutting zone.

Pitch and Flight Design

The geometry of the helical flighting determines the volumetric capacity and the types of chips the system can transport. Standard pitches are typically designed to match the density and volume of the material being processed. Selecting the right flight configuration prevents compaction and material binding.

• Standard Pitch: Used for general-purpose machining, providing steady transport for uniform brass, aluminum, or steel chips.

• Variable Pitch: Useful when the accumulation rate varies along the length of the conveyor trough. Wider pitches near the discharge point prevent compaction.

• Shaftless Augers: Designed for high-volume setups dealing with long, stringy chips or nesting formations. The absence of a central shaft provides more space within the trough, preventing the wrapping and binding that often occurs with standard shaft-driven units.

Trough Configurations and Wear Resistance

The trough housing the rotating screw must withstand constant friction from both the auger and the abrasive metal scrap. High-strength carbon steel or manganese steel liners are used to extend the operational life of the trough. QUNHUI utilizes hardened steel alloys for these high-wear zones to prevent premature structural wear. The clearance between the outer diameter of the auger flighting and the inner surface of the trough is kept tight to prevent fine particulates from slipping underneath, which can cause mechanical binding and increased motor load.

Integrating Chip Conveying Systems into Automated CNC Cells

Automated CNC lines operate with minimal human intervention. Consequently, the chip auger conveyor must function as an integrated component of the machine tool, rather than an isolated accessory. This requires careful alignment of physical dimensions and electrical control systems.

Space Constraints and Geometric Integration

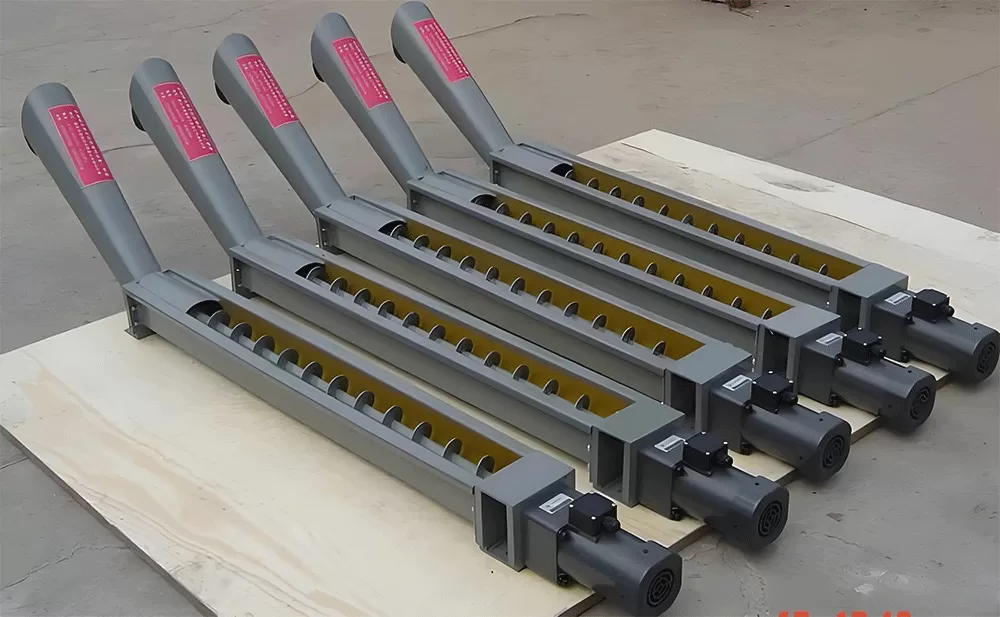

Modern multi-axis CNC machines have compact footprints to maximize factory floor space. Designing a chip auger conveyor requires accurate calculation of the drop height from the machine enclosure to the conveyor trough. The slope of the incline section must be steep enough to transport chips out of the machine base, yet gentle enough to prevent material from sliding back down under gravity. Standard incline angles range between 30 and 45 degrees, depending on the wetness of the material and the chip geometry.

Coolant Management and Fluid Separation

Metal cutting processes generate significant heat, requiring constant flood cooling. The conveyor trough often serves as the primary collection point for both chips and coolant. Effective separation of fluids from solid waste is necessary to maintain fluid quality and reduce waste disposal costs.

• Perforated Trough Liners: These allow liquid coolant to drain through to the storage tank below while retaining solid scrap in the transport channel.

• Sedimentation Zones: Slower velocity areas within the trough where fine metal dust can settle, preventing it from recirculating back to the high-pressure coolant pumps.

• Wringer Systems: Mechanical squeeze actions or extended incline drainage zones that dry the chips before discharge, recovering expensive cutting oils.

Addressing Operational Bottlenecks in Industrial Waste Management

Every manufacturing process encounters unique material challenges. Steel chips from high-feed milling differ vastly from aluminum dust generated during high-speed routing. Understanding these differences allows engineers to customize the conveyor parameters for maximum uptime.

Managing Long, Stringy Nesting Chips

Stringy chips, common in turning operations of ductile materials like low-carbon steel or stainless steel, tend to cluster into large nests. Traditional belt systems can catch these nests, leading to belt tears or structural damage. A shaftless chip auger conveyor handles these nests by allowing them to occupy the open center of the helix. The rotating action tears the clusters apart as they move against the trough walls, reducing the risk of clogging.

Torque Control and Overload Protection

Mechanical jams occur when foreign objects, such as dropped tooling, bolts, or oversized scrap, enter the conveyor trough. To prevent motor burnout or shaft breakage, automated systems must incorporate torque monitoring. QUNHUI systems implement dual-stage protection to safeguard the machinery.

• Electronic Torque Limiters: These systems monitor the current draw of the drive motor. If a sudden spike occurs, the system halts and initiates a brief reverse cycle to clear the blockage automatically.

• Mechanical Shear Pins: These provide a physical failsafe by breaking at a predetermined force, disconnecting the motor from the drive shaft to protect the internal components from severe damage.

Engineering Parameters for Procurement Teams

When specifying a conveyor system for an industrial plant, purchasing and engineering departments must look past generic descriptions and focus on quantifiable parameters. Evaluating these criteria ensures the equipment matches the operational demands of the production floor.

• Throughput Capacity: Measured in cubic meters per hour or kilograms per hour. This must match or exceed the maximum metal removal rate of the CNC center during peak operation.

• Material Compatibility: Aluminum requires different flight pitches compared to cast iron or brass due to differences in density, chip shape, and friction coefficients.

• Motor Specifications: IP-rated motors designed to resist cutting fluid splashes, humidity, and fine dust ingress are required for long-term reliability.

• Structural Dimensions: Overall length, trough width, discharge height, and the angle of inclination must align precisely with the layout of the production floor and the machine tool discharge port.

Frequently Asked Questions

Q1: How does a chip auger conveyor differ from a hinge belt conveyor?

A1: A chip auger conveyor uses a rotating screw to move materials through a compact trough, which is highly effective for small chips, turnings, and wet environments. A hinge belt conveyor uses linked metallic belt plates, making it better suited for large, heavy scrap, hot forgings, and diverse chip shapes, though it occupies a larger physical footprint.

Q2: Can a shaftless design handle both fine dust and long turnings?

A2: Yes. The shaftless design provides an open core that allows long, stringy turnings to pass without wrapping around a central shaft. At the same time, the outer flighting sweeps fine dust along the bottom of the trough, making it highly versatile for mixed scrap operations.

Q3: What maintenance procedures are required to prevent mechanical failure?

A3: Standard maintenance involves checking the wear liners in the trough, verifying the lubrication of the drive chain and gearbox, and inspecting the flighting for signs of deformation. Regularly clearing any non-machined debris from the trough also prevents sudden jams.

Q4: Is it possible to retrofit a chip auger conveyor into an existing CNC machine?

A4: Yes, provided the space under the machine bed allows for the trough integration. Many modern CNC machines are designed with channels to accommodate standard augers, allowing for direct installation with minor electrical integration for the control loop.

Q5: How does coolant selection affect the wear rate of the conveyor?

A5: Water-soluble coolants provide lubrication that reduces friction between the auger flights and the trough liner. However, they must contain rust inhibitors to prevent corrosion. Synthetic coolants are highly effective but require seal materials in the motor and gearbox that are chemically compatible with the synthetic formulas.
