5 Design Considerations for Integrating a Chip Conveyor CNC System

In high-volume metal cutting environments, managing the continuous volume of metal scrap is a fundamental aspect of maintaining machine tool uptime. As milling machines, lathes, and multi-axis machining centers run at higher spindle speeds and feed rates, the volume of swarf produced increases exponentially. Without an efficient chip conveyor cnc system, this waste material quickly accumulates inside the machining envelope, threatening tool life, surface finish quality, and operator safety.

Industrial operations rely on systematic evacuation of these materials to avoid unplanned stops. QUNHUI design engineers focus on creating robust chip removal solutions that integrate directly with existing machine control units, allowing for automated, continuous scrap disposal. Understanding the mechanical dynamics of swarf generation and the specific transport mechanisms available allows production managers to select the correct configuration for their specific manufacturing processes.

Mechanics of Swarf Generation and the Role of the Chip Conveyor CNC

Machining different materials—such as high-tensile steel, structural aluminum, or cast iron—results in diverse chip geometries. Long, stringy nests of steel turnings behave differently from fine, abrasive cast iron dust or sticky aluminum ribbons. Each type of scrap material requires a distinct mechanical approach to move it from the machine work envelope to the collection bin.

Accumulated scrap can cause physical interference with the tool changer, the axes way covers, and the workpiece itself. High-speed milling generates heat, which is transferred to the chips. If these hot chips remain in contact with the machine bed, thermal expansion can compromise the geometric accuracy of the machine tool. A well-configured chip conveyor cnc addresses this issue by continuously removing the heat-carrying scrap from the machine enclosure, thereby stabilizing the thermal environment of the machining center.

Impact on Coolant Lifespan and Part Quality

Apart from mechanical interference, swarf accumulation directly degrades the cutting fluid. When fine chips remain suspended in the coolant reservoir, they act as an abrasive medium when recirculated through the coolant pump. This abrasive fluid accelerates tool wear and can scratch the surface of finished components.

Integrated conveyor systems often feature built-in filtration mechanisms. By separating the solid metallic waste from the fluid as early as possible, the system extends the operational life of the coolant, reduces filter replacement frequency, and preserves the surface integrity of high-precision machined parts.

Classification of Chip Conveyor CNC Technologies

Choosing the correct transport mechanism depends primarily on the material being cut and the cutting parameters. QUNHUI engineers categorize these material handling systems into three primary configurations, each suited to specific types of industrial scrap.

Hinged Steel Belt Conveyors

Hinged steel belt systems represent the most common configuration in heavy-duty milling and turning centers. These systems utilize a series of steel plates linked together to form a continuous loop belt.

• Primary Applications: Heavy steel turnings, stampings, castings, and large curly chips.

• Mechanical Principle: The metal scrap falls directly onto the steel plates, which carry the material up an inclined ramp to the discharge height.

• Limitations: Fine chips and powdery dust can slip through the gaps between the hinged plates, settling at the bottom of the conveyor frame and requiring manual cleaning over time.

Scraper and Drag Link Conveyors

For applications where fine materials are common, a scraper or drag link conveyor is more appropriate.

• Primary Applications: Cast iron dust, brass chips, short aluminum swarf, and fine particles.

• Mechanical Principle: This design uses a series of scraper bars mounted between two strands of chain. The scraper blades scrape along the bottom floor of the conveyor housing, pushing the settled fine particles up the incline.

• Operational Advantage: This method is highly effective for preventing fine particles from settling in the coolant tank, as the continuous scraping action keeps the conveyor floor clean.

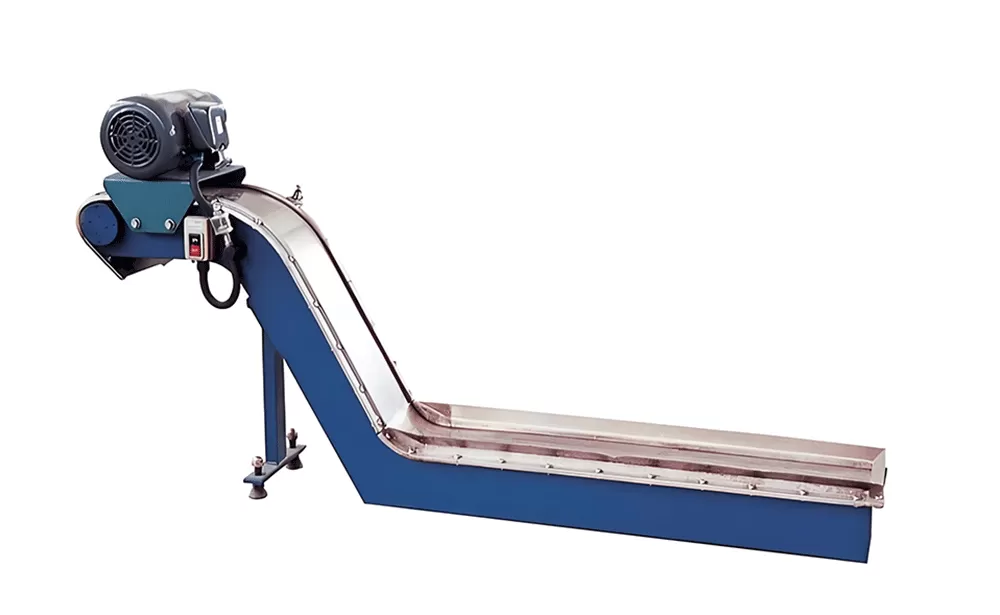

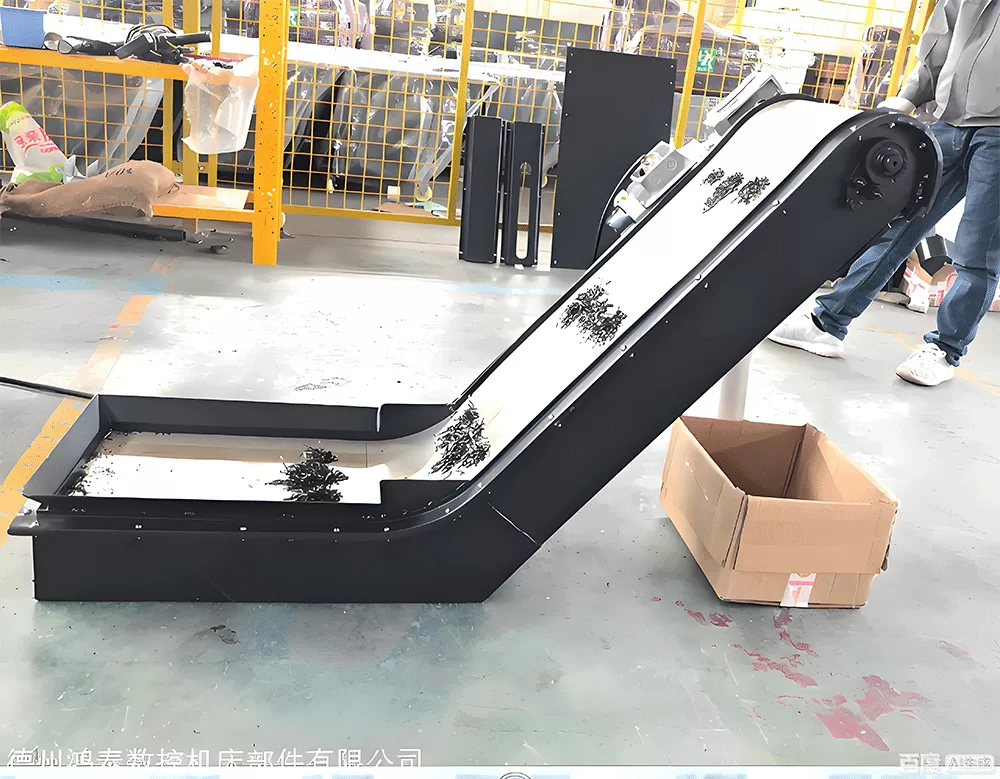

Magnetic Conveyor Systems

Magnetic transport systems eliminate the need for an external moving belt inside the conveyor frame, relying instead on internal permanent magnets.

• Primary Applications: Ferrous metal chips, drilling fines, and small steel components.

• Mechanical Principle: Magnets mounted on a chain loop move beneath a stationary non-magnetic stainless steel sheet. The ferrous chips are attracted to the sheet and slide along the outer surface, following the path of the internal magnets to the discharge point.

• Operational Advantage: Because there are no external moving parts to catch or jam, these units exhibit extremely low wear rates and require minimal maintenance.

Engineering Challenges and Custom Solutions in Scrap Management

Standard off-the-shelf conveyor designs often struggle under heavy industrial loads or when cutting exotic materials like titanium and nickel-based superalloys. Standard designs can suffer from premature chain stretching, belt jamming, and structural wear.

Preventing Belt Jams and Component Wear

When curly steel turnings form dense nests, they can wedge themselves between the conveyor belt and the outer casing. This creates high mechanical resistance that can burn out the drive motor or snap the drive chain.

To mitigate this, QUNHUI incorporates electronic torque limiters and auto-reverse control logic into our chip conveyor cnc configurations. If a jam occurs, the controller detects the current spike in the motor, reverses the belt briefly to clear the obstruction, and then resumes forward operation. Hardened wear plates are also installed in high-friction areas along the conveyor path to prolong structural life.

Managing Aluminum Swarf and Coolant Carry-Out

Aluminum is lightweight and has a tendency to float on the surface of cutting fluids rather than settling onto the conveyor belt. Additionally, the high volume of coolant used in aluminum machining can sweep fine chips past the conveyor and into the main tank.

Implementing a dual-zone system consisting of a pre-filtration drum and a secondary scraper conveyor allows the fluid to drain thoroughly before the chips are discharged. This configuration minimizes coolant carry-out, keeping the expensive cutting fluid inside the machine rather than letting it drip into the scrap bin.

Control System Integration and Automation

A modern chip conveyor cnc is not merely an auxiliary accessory; it is an integrated sub-system of the CNC machine tool. Coordinating the conveyor’s operation with the CNC control panel improves both energy efficiency and system reliability.

Smart Operation Modes

Continuous operation of the conveyor is not always necessary, especially during setups or light finishing cuts. Constant running increases energy consumption and accelerates component wear.

• Intermittent Cycle Operation: The conveyor can be programmed to run for a specific duration after a set number of machining cycles, or synchronized with the spindle-on signal.

• Variable Speed Control: Incorporating variable frequency drives allows the conveyor speed to match the material removal rate. High-feed roughing operations trigger a faster belt speed, while finishing passes utilize a slower speed to conserve energy.

Safety Interlocks and Diagnostics

Integrating safety sensors prevents mechanical damage and protects operators. Emergency stop circuits are linked directly to the main CNC controller, ensuring that if the conveyor experiences a mechanical failure or overload, the machining cycle pauses immediately. This prevents the machine from continuing to cut metal and burying the spindle in un-evacuated swarf.

Selection Metrics for Custom Industrial Applications

Specifying the correct chip conveyor cnc requires a detailed analysis of the manufacturing environment. Factory managers should evaluate several parameters before finalizing a system design.

Material Properties and Production Volume

The physical properties of the workpiece material dictate the conveyor style. Ferrous versus non-ferrous, tensile strength, and chip shape (long-stringy, short-granular, or fine dust) are the primary determinants. In addition, the maximum material removal rate (measured in cubic centimeters per minute) determines the required volumetric capacity of the conveyor.

Coolant Flow Rates and Filtration Needs

Modern high-speed machining centers often utilize high-pressure coolant systems delivering fluid at rates exceeding 100 liters per minute. The conveyor housing must be designed to handle this volumetric flow without flooding. Integrating mesh screens, cyclone separators, or paper band filters directly into the conveyor tank ensures the fluid returned to the machine is free of micro-particles.

Shop Floor Geometry and Discharge Height

The physical layout of the production floor influences the conveyor configuration. The discharge height must align with the height of the factory’s waste collection bins or central chip processing systems. Furthermore, the angle of the incline must be carefully calculated; too steep an angle can cause wet chips to slide backward, while a shallow angle increases the footprint of the machine tool.

Maintenance Protocols for Sustained Reliability

To ensure a chip conveyor cnc operates reliably over a multi-shift production schedule, a structured preventative maintenance routine is necessary.

• Daily Inspections: Operators should check for unusual noises, monitor coolant levels in the recovery tank, and visually inspect the discharge chute for obstructions.

• Weekly Lubrication: Drive chains, tensioners, and bearings require regular lubrication to prevent premature wear and corrosion from exposure to water-miscible cutting fluids.

• Monthly Belt Tension Adjustments: Over time, steel belts and chains will stretch under load. Adjusting the tensioning screws prevents the belt from slipping off the drive sprockets or dragging unevenly against the housing.

Direct Inquiry and Custom Engineering Solutions

Every manufacturing facility faces unique challenges when managing scrap material and coolant purity. Standard solutions rarely address the specific demands of high-volume, multi-shift production. QUNHUI designs custom-engineered industrial filtration and scrap management systems designed to integrate into your existing CNC workflows.

To discuss your specific machine tool specifications, chip volume requirements, or floor layout constraints, contact our engineering department. Our team provides detailed design evaluations, custom drawings, and system configurations tailored to your production goals. Send us your inquiry today to receive a detailed specifications proposal and quotation.

Frequently Asked Questions

Q1: What are the main differences between a hinge belt and a scraper conveyor for chip removal?
A1: A hinge belt conveyor features a continuous loop of articulated steel plates that carry larger, solid chips, such as long steel turnings or heavy castings, up an incline. A scraper conveyor uses metal bars attached to dual chains to drag fine, small chips, such as cast iron dust, brass particles, or short aluminum swarf, along the bottom floor of the conveyor housing. While hinge belts are prone to letting small particles fall through plate gaps, scraper systems are designed to keep the bottom surface clear of fine debris.

Q2: How does a magnetic chip conveyor function without a visible belt?
A2: A magnetic conveyor utilizes powerful permanent magnets mounted on a continuous chain drive located entirely inside a sealed, stationary stainless steel housing. Ferrous chips and particles that fall onto the outer stainless steel plate are attracted by the magnetic field. As the internal chain moves, the magnets slide the ferrous debris along the outer sheet to the discharge point. Since there are no external moving parts exposed to the abrasive scrap, mechanical wear is minimized.

Q3: Why is coolant filtration integration important in a chip conveyor cnc system?
A3: When cutting metal, fine particles often bypass basic conveyor belts and settle in the coolant reservoir. If these micro-chips are recirculated, they can damage high-pressure pumps, clog coolant nozzles, and scratch workpieces. Integrating filtration mechanisms, like self-cleaning drum filters or magnetic separators, directly into the conveyor system ensures clean coolant is returned to the machine, preserving tool life and improving surface finishes.

Q4: How do torque limiters protect the conveyor motor from mechanical damage?
A4: A torque limiter is a protective mechanism integrated into the drive assembly. When a physical jam occurs—such as a large nest of chips wedged between the belt and frame—the torque limiter detects the sudden resistance. It will either slip mechanically or trigger an electronic sensor to cut power to the drive motor immediately. This action prevents the chain from snapping, shields the motor from burning out, and alerts the operator via the CNC control panel.

Q5: Can a single chip conveyor cnc handle both aluminum and steel chips?
A5: Yes, but the system must be configured carefully. Steel chips are heavy and settle quickly, whereas lightweight aluminum chips tend to float and require specialized filtration to prevent them from washing into the coolant tank. A dual-purpose system typically combines a hinged belt for large steel turnings with a fine mesh drum filter and scraper mechanism to catch floating aluminum particles, ensuring versatility across different material production runs.
