Maximizing Machine Tool Uptime Through Efficient Screw Chip Conveyor Design

In high-production CNC machining, lathe turning, and milling operations, the continuous removal of metal chips and swarf is a fundamental requirement for maintaining operational accuracy. Accumulation of machining waste inside the enclosure leads to thermal distortion, tool breakage, and surface finish degradation. Among the various material handling options available to manufacturing engineers, the screw chip conveyor remains a primary choice for managing confined space installations and handling specific chip geometries.

Implementing a robust chip management system requires an understanding of mechanical forces, material characteristics, and machine tool integration. QUNHUI designs and manufactures custom material handling systems to meet these challenges. This analysis focuses on the engineering principles, design variations, and operational practices that govern the performance of screw-driven chip evacuation systems in industrial environments.

Mechanical Architecture of the Screw Chip Conveyor

The operational reliability of a screw chip conveyor depends on its structural components. Unlike belt-style conveyors that carry material on top of a moving medium, a screw conveyor relies on the rotational force of a helical flight to push material along a stationary trough. This mechanical action requires precise tolerances and material selection to prevent premature wear and mechanical binding.

Helical Flighting and Shaft Configurations

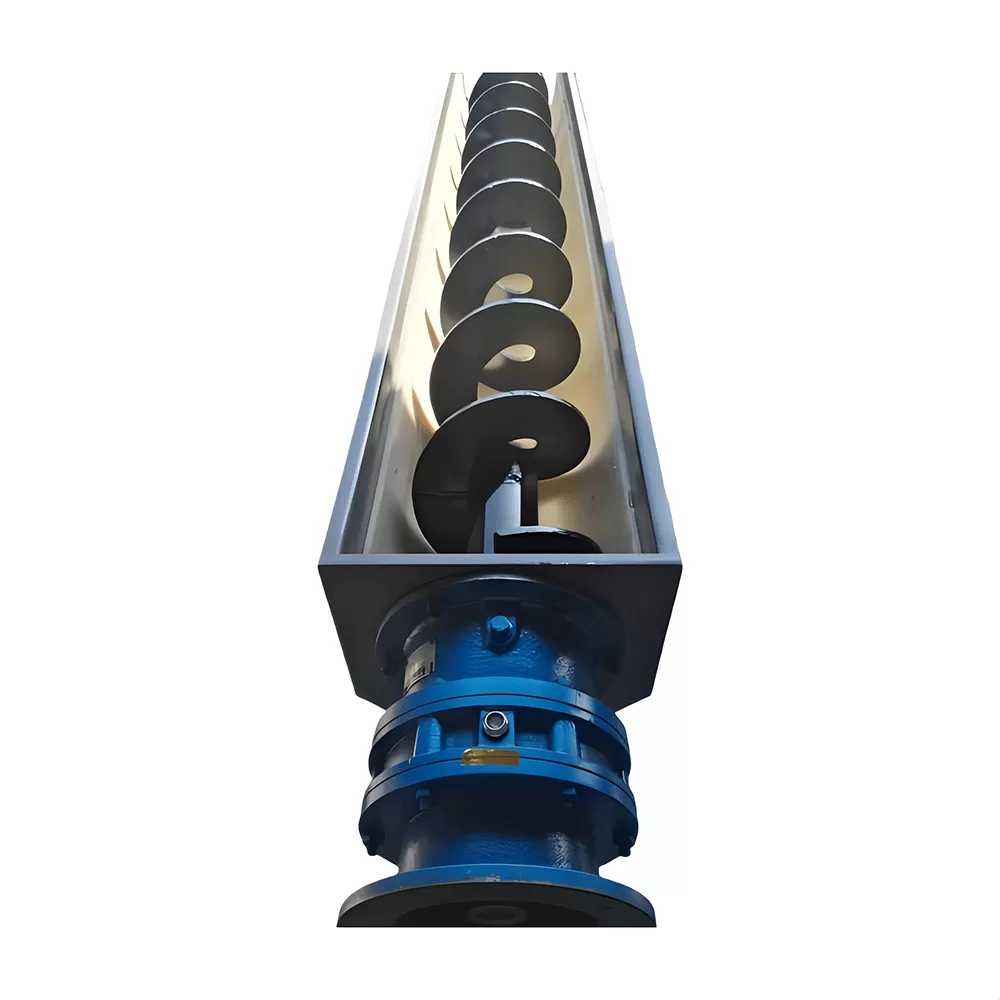

The helical screw, or auger, is the primary drive element. Engineers must select between shafted and shaftless configurations based on the physical properties of the waste material being transported.

• Shafted Screws: This design features continuous or sectional steel flighting welded to a central pipe. The central shaft provides high torsional rigidity, making it suitable for long-span installations where the screw must resist bending under heavy loads. However, the presence of the central shaft reduces the available cross-sectional area and can provide a surface for long, stringy chips to wrap around, leading to blockages.

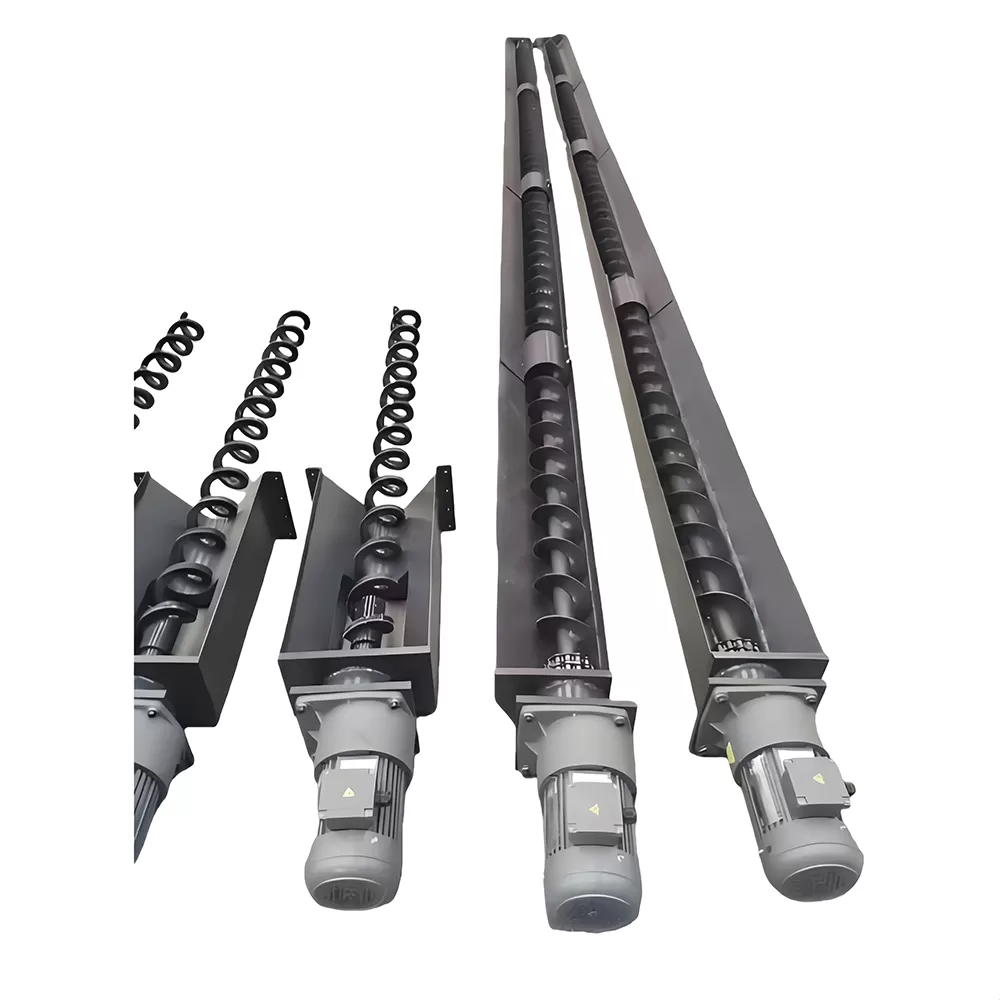

• Shaftless Screws: Also known as spiral conveyors, these units utilize a heavy-duty, coreless helix that rests directly on the bottom of the trough liner. Without a central shaft, there is more open area inside the trough, allowing for the transport of nested chips, large clumps, and irregular swarf. The torque is transmitted through the cross-section of the spiral itself, requiring high-strength alloy steels to prevent deformation.

Trough Design and Wear Mitigation

The trough houses the rotating screw and contains the chips and cutting fluids. Because the material is pushed against the bottom and sides of the trough during transport, sliding abrasion is constant. To address this wear, QUNHUI incorporates replaceable liners made from abrasion-resistant materials. Manganese steel alloys and high-density polyethylenes are commonly used depending on whether the application involves heavy, sharp metallic swarf or lighter, non-ferrous materials.

The clearance between the outer diameter of the screw and the inner surface of the trough must be carefully calibrated. Excessive clearance allows fine particles to accumulate beneath the screw, forming a hardened layer that increases friction and motor load. Insufficient clearance can lead to mechanical binding if a hard chip becomes wedged between the flight and the trough wall.

Managing Swarf Dynamics and Coolant Separation

Machining different metals produces distinct chip morphologies, each interacting differently with a screw chip conveyor. The design of the conveyor must match the physical characteristics of the waste material to prevent system failure.

Handling Cast Iron and Brass Chips

Cast iron and brass tend to produce short, discontinuous chips or fine powder during machining. These materials do not nest or wrap, but they are highly abrasive and can easily settle at the bottom of the conveyor trough. For these applications, a fine-pitch screw chip conveyor is utilized. The tight pitch ensures that the material is moved continuously in small, controlled increments. Additionally, because these fine particles can migrate into the bearing housings, specialized seals and outboard bearing arrangements are necessary to prevent contamination of the drive assembly.

Managing Steel and Aluminum Swarf

Steel machining often generates long, continuous, and stringy turnings that can easily form large nests. If a standard shafted screw is used, these nests can wrap around the shaft, causing a complete mechanical jam. A shaftless screw chip conveyor is the preferred choice here, as the open center allows the nested material to move forward without catching. Aluminum chips present a different challenge: they are lightweight and have a high affinity for sticking to surfaces when wet with coolant. The conveyor must be designed with polished flight surfaces or non-stick liners to prevent material buildup on the screw itself.

Coolant Recovery and Drainage

In most CNC operations, chips are covered in cutting oil or water-soluble coolant. Discharging chips saturated with coolant is both environmentally problematic and economically wasteful. To address this, the screw chip conveyor often features an inclined discharge section. As the screw pushes the wet chips up the incline, gravity pulls the coolant backward through the material bed. Drainage slots or perforated screens built into the lower section of the trough allow the recovered coolant to drain back into the primary machine tool reservoir.

Structural Integration in Machine Tool Enclosures

Integrating a conveyor into a modern CNC machining center or horizontal lathe requires careful spatial planning. Machine tool builders face constant pressure to reduce the physical footprint of their equipment, leaving minimal space for auxiliary systems.

Low-Profile Configurations

For machines with low ground clearance, the conveyor must be designed with a compact cross-section. This is often achieved by utilizing smaller-diameter screws running at higher rotational speeds. However, increasing the speed increases wear rates, requiring a balance between physical size and operational longevity. QUNHUI engineers custom low-profile housings that slide directly into the standard chip chutes of major machine tool brands, ensuring seamless integration without modifying the machine's structural base.

Horizontal vs. Inclined Transition

Many manufacturing layouts require the screw chip conveyor to receive chips horizontally beneath the machine bed and then elevate them to a height suitable for discharging into a waste bin. This transition from horizontal to inclined transport is a frequent point of mechanical stress. The bend in the conveyor housing must be designed with a radius that prevents the screw from binding while maintaining a consistent pushing force on the chips. In some complex installations, a multi-stage system is used, where a horizontal screw feeds into a separate inclined conveyor.

Operational Protocols and Preventive Maintenance

Ensuring the long-term reliability of a conveyor system requires adherence to a structured maintenance routine and the implementation of protective control systems.

Torque Monitoring and Overload Protection

One of the primary causes of conveyor failure is mechanical overload due to tramp metal (such as dropped tools, workpieces, or fixtures) entering the trough. To protect the motor, gearbox, and screw flighting, the drive unit must be equipped with overload protection. QUNHUI integrates electronic torque limiters within the control panel. These systems monitor the motor's current draw; if the current exceeds a predetermined threshold—indicating a jam—the system immediately halts the conveyor and triggers an alarm. Advanced systems can automatically initiate a reverse cycle to attempt to clear the blockage before shutting down completely.

Lubrication and Component Inspection

Even though the conveyor operates in a wet environment due to machining coolants, the main drive bearings and gear reducers require regular lubrication with specialized greases that resist washout. The following routine maintenance schedule is recommended for industrial installations:

• Weekly: Inspect the discharge chute for chip accumulation and verify that coolant drainage holes are free of debris.

• Monthly: Check the tension of drive chains (if applicable) and monitor the motor current under normal operating load to detect early signs of mechanical resistance.

• Quarterly: Inspect the visible sections of the screw flighting for wear, particularly at the high-stress transition zones near the incline.

• Annually: Measure the thickness of the trough wear liners and replace any sections that show significant thinning to prevent damage to the main conveyor frame.

Technical Specification and Selection Matrix

When specifying a conveyor for a new machining line or upgrading an existing machine, engineers must define several physical and operational parameters. The table below outlines standard configuration parameters for various industrial applications.

Selecting the correct parameters from this matrix ensures that the conveyor operates within its optimal efficiency zone, reducing energy consumption and minimizing mechanical wear over thousands of operating hours.

Frequently Asked Questions

Q1: What are the primary signs that a screw chip conveyor wear liner needs replacement?

A1: The most common indicators of wear liner degradation include an increase in motor current draw during normal operation, localized metallic noises caused by the screw contacting the structural frame, and visible thinning or grooving of the liner material near the discharge bend. Regular visual inspections during scheduled maintenance down-time are recommended to catch these signs before the structural integrity of the outer trough is compromised.

Q2: Can a screw chip conveyor handle high volumes of curly steel chips?

A2: Yes, provided the system is configured correctly. For curly, nested steel chips, a shaftless design is preferred. The absence of a central shaft prevents the chips from wrapping and nesting around the rotating core. Additionally, utilizing a wider pitch and a larger trough diameter helps accommodate the high volume and irregular shape of these turnings without causing blockages.

Q3: How does the angle of inclination affect the transport capacity of the conveyor?

A3: As the angle of inclination increases, the volumetric efficiency of the conveyor decreases due to material rollback. Generally, for inclinations up to 15 degrees, the loss in capacity is minimal. For steeper angles (up to 30 degrees), a tighter screw pitch or a specialized flight geometry is required to prevent chips from sliding backward down the trough. Beyond 30 degrees, alternative chip handling methods may need to be evaluated depending on the material type.

Q4: What is the benefit of incorporating a variable frequency drive into the conveyor control system?

A4: A variable frequency drive allows operators to match the conveyor speed with the chip production rate of the machining center. Running the conveyor at a lower speed during light finishing operations reduces wear on the flights and liners, decreases power consumption, and extends the operational lifespan of the motor and gearbox. It also permits higher speeds during roughing operations when chip generation is at its peak.

Q5: How does QUNHUI ensure the sealing of bearings against fine abrasive metal dust?

A5: QUNHUI utilizes outboard bearing designs where the shaft bearings are physically separated from the conveyor trough by a seal chamber. This chamber contains multi-lip radial seals and grease barriers that prevent fine particles, such as cast iron dust or silicon-aluminum fines, from migrating along the shaft and entering the bearing assembly. This design prevents premature bearing seizure in high-dust applications.

Custom Engineering Support for Chip Management Systems

Every manufacturing facility faces unique challenges based on machine configurations, floor layout, and material specifications. Off-the-shelf conveyor designs often fail to meet the tight dimensional tolerances and material requirements of high-performance production lines. Custom engineering is often necessary to achieve long-term operational reliability.

The engineering team at QUNHUI designs and manufactures custom screw chip conveyor systems tailored to specific industrial requirements. If your facility is experiencing frequent conveyor downtime, poor coolant recovery, or integration challenges with your existing CNC machinery, please contact our technical department. Our engineers are available to review your system drawings, material specifications, and space constraints to provide a detailed technical proposal for your next project.
